Digital Total Suspended Solids Sensor Optical Probe Apparatus For River Aquaculture Wastewater Treatment
Digital Suspended Solids Sensor Self-cleaning Optical Probe Is Suitable For Fields Such As River Channels, Aquaculture, Wastewater Treatment, And Industry
The KNF-1004APro intelligent suspended solids sensor adopts an RS485 communication interface and the standard Modbus protocol. It comes with a built-in cleaning brush and uses an infrared light source, which is not affected by the color of water samples. It employs a 90° scattering method and complies with the ISO 7027 international standard and the USEPA180.1 environmental protection standard. Data analysis software is randomly included, featuring functions such as calibration, recording, analysis, and diagnosis.
It can be applied in fields such as surface water, municipal sewage, industrial wastewater, sewage treatment, waterworks, and process control.
Technical indicators
|
Working principle |
90° scattering method |
Double-beam scattering method |
|
Emission wavelength |
860nm |
|
|
Measurement range |
(0-1000)mg/L, Scalable(0-4000)mg/L |
(0-25)g/L |
|
Resolution rate |
0.01mg/L |
0.001g/L |
|
Measurement accuracy |
±3% or 3mg/L |
±3% or 0.02g/L |
|
Reproducibility |
<2% or 2mg/L |
<2% or 0.01g/L |
|
Detection limit |
5mg/L |
0.05g/L |
|
Drift |
±2% |
|
|
Linear error |
±5% |
|
|
Response time |
<10s |
|
|
Communication interface |
RS485, standard Modbus-RTU protocol |
|
|
Size specification |
D30mm,L175mm,Cable 3 meters (customizable),490g |
|
|
Working environment |
|
|
|
Working voltage |
12V/24V DC,0.6W |
|

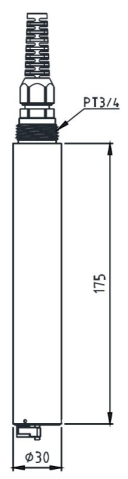

Unit: mm

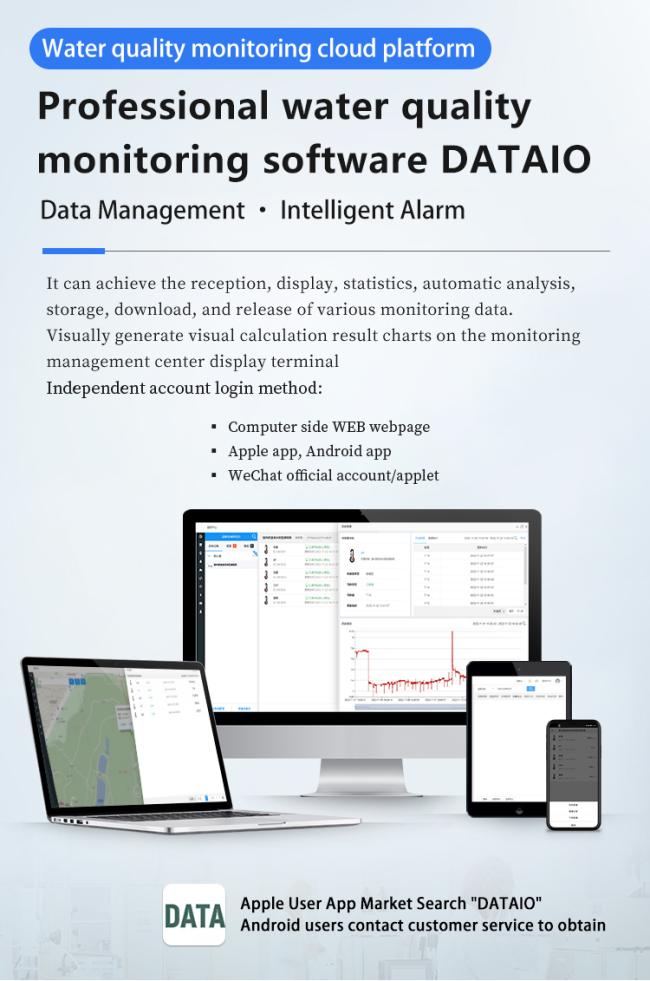

Introduction to the Water Quality Monitoring Software Cloud Platform (DATAIO)
All the water quality/water level related equipment produced by our company can be connected to the Kainafu water quality monitoring cloud platform! It can realize the reception, display, statistics, automatic analysis, storage, download and release of monitoring data from various water quality sensor devices. Generate visual calculation result charts intuitively on the display terminal of the monitoring management center.
▪ Desktop WEB page (login address: ion.onetestinc.com. Contact the product owner for a trial account to obtain it)
▪ Apple APP, Android APP
▪ Wechat Official Account/Mini Program
