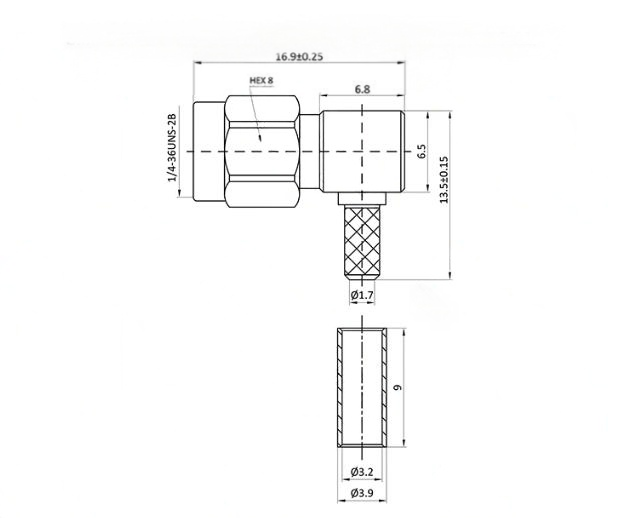

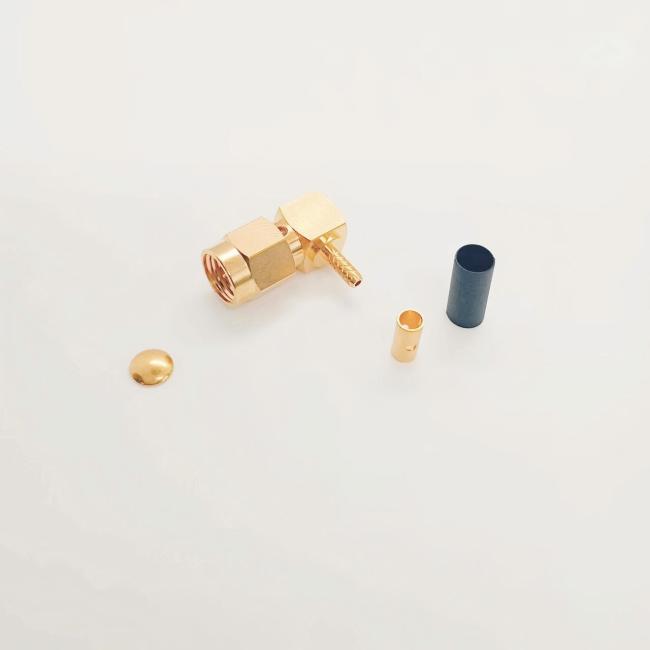

Male RF Connector Small SMA R/A Connector 6GHz SMA-JW2 For Crimping RG316/RG174 Coaxial Cables
Radio Frequency Connector (RF connector for short) is a separable electronic component that is installed on cables or equipment for the transmission of radio frequency signals. It is often used in electromagnetic wave signal transmission scenarios ranging from 3kHz to 300GHz. It plays a key role in multiple fields such as communication and aerospace. SMA series of RF coaxial connectors feature small size, wide frequency band, superior mechanical performance and high reliability. They are one of the most widely used RF coaxial connectors. Ultra-small connectors like MMCX and SMP are constantly evolving, capable of meeting the blind insertion requirements of high-density devices while reducing the space occupied by the equipment, which is in line with the development direction of miniaturization of electronic devices.
| Product model | SMA-JW2 | Product structure | Right Angel |
| Characteristic impedance | 50 ohm | Durability | ≥500cycles |
| Frequency range | DC-6GHz | Body | Gold plated brass |
| Contact resistance |
Center Contact ≤3mΩ |
Contact resistance | Outer Contact ≤2.5mΩ |
| Voltage standing wave ratio | ≤1.3 | Insulator | PTFE |
| Dielectric withstand voltage | ≥1000V RMS,50hz,at sea level | Central conductor | Gold plated brass |
| Working voltage | ≤250V RMS,50hz,at sea level | Connection sleeve | Gold plated brass |
| Dielectric resistance | ≥ 5000MΩ | Temperature range | -45℃~+125℃ |
| Installation method | Welding | Cable type | RG316/RG174 |
- Standard export carton
- As per customized specifications such as logo or others
- According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders.
- (based on different quantities,ODM, etc.)
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
