100 Pin M83513 Micro Rectangular Connector with 1.27mm Pitch and Metal Body for High Density Applications

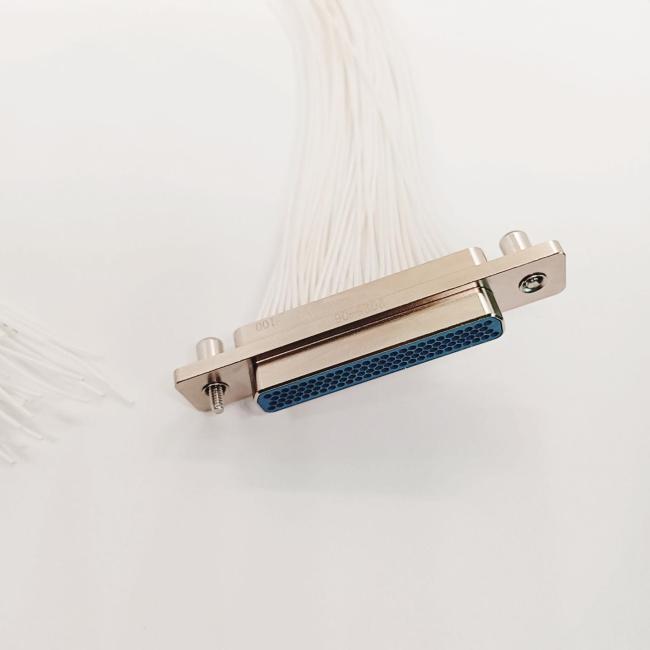

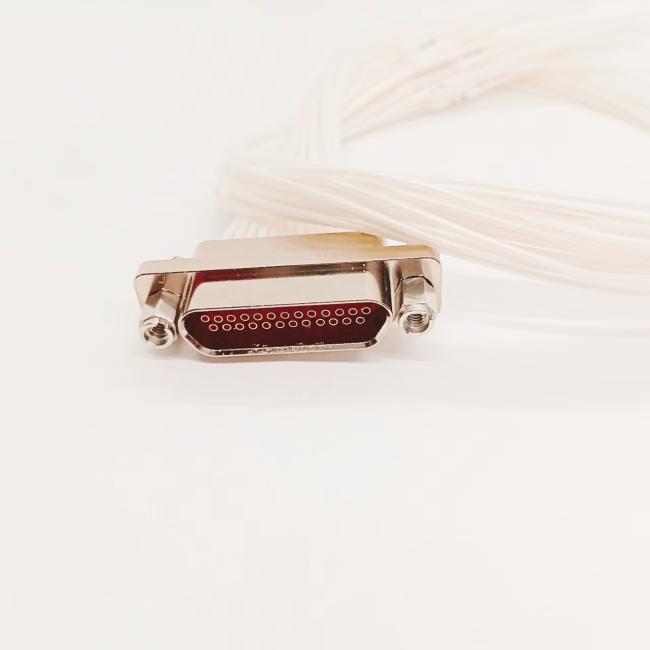

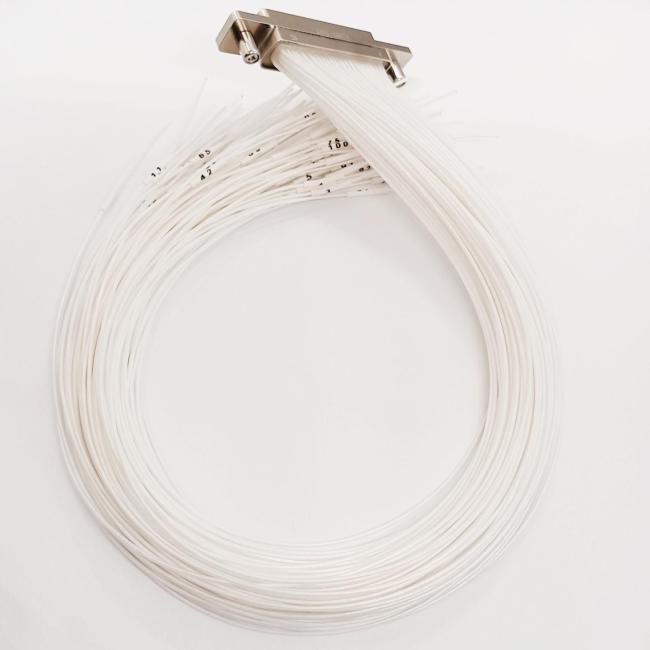

MIL-DTL-83513 J30J-100TJL J30J Series 100 Pins Plug Micro Rectangular Connector

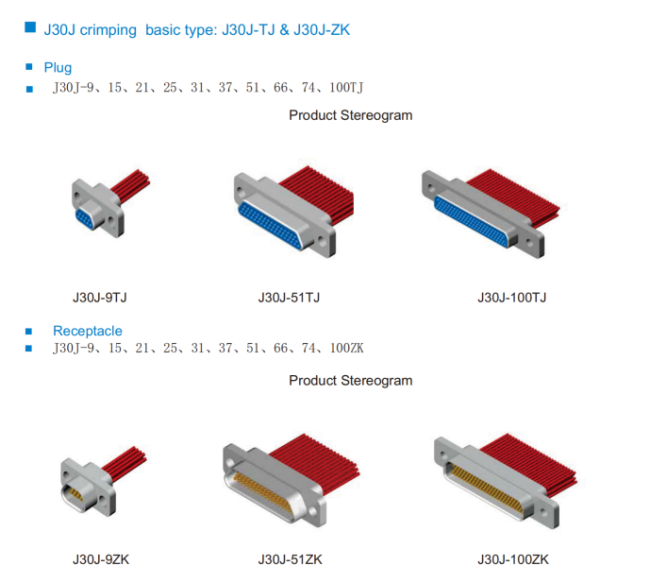

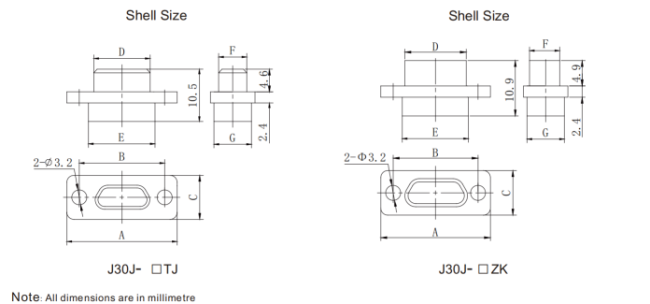

J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. They adopt precision twisted wire elastic pins (precision twist pins), with a contact piece spacing of 1.27mm. The product is compact in size. The casing is made of metal and comes in 12 specifications ranging from 9 to 144 pins. The insulator material adopts PPS to meet the requirements of high-temperature resistance and aerospace applications. Plugs and sockets can be threaded locked, guided, and prevent misinsertion, etc. The termination forms include crimping, direct insertion, bending insertion, and welding, etc. Among them, the cross-sectional area of the crimped wire is 0.1mm² to 0.15mm², which is suitable for the interconnection of various electronic and electrical systems with high density, miniaturization, lightweight, and high reliability requirements.

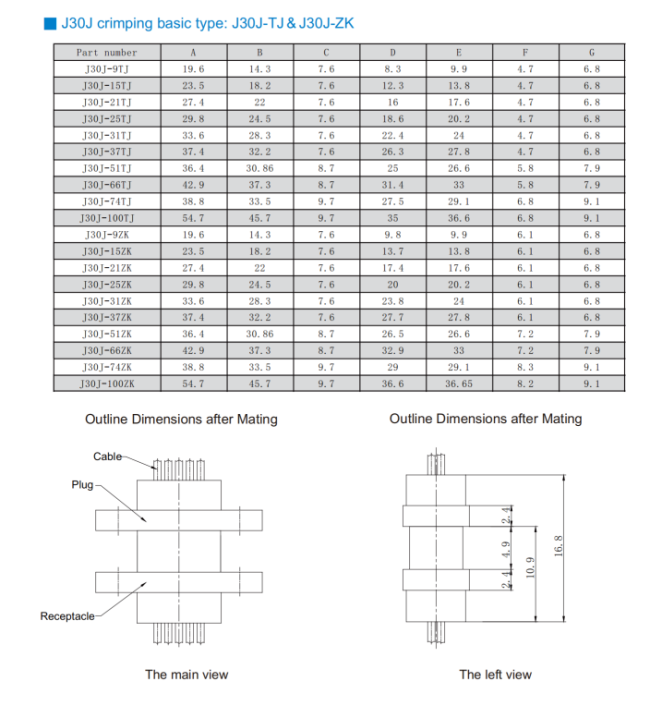

| Product model | J30J-100TJL-30CM | Contact resistance | ≤10mΩ |
|---|---|---|---|
| Ambient temperature | -55℃~+125℃ | Insulation resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz 294m/s² | Withstand voltage | 800v |
| Random vibration | Power spectral density is 0.6G²/Hz and the root mean square value of the total acceleration rate is 28.4G | Mechanical life | 500 times |
| Impact | 980m/s² 6ms | Rated current | 3 A |
- As per customized specifications such as logo or others
- According to customers' requirements
- Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
