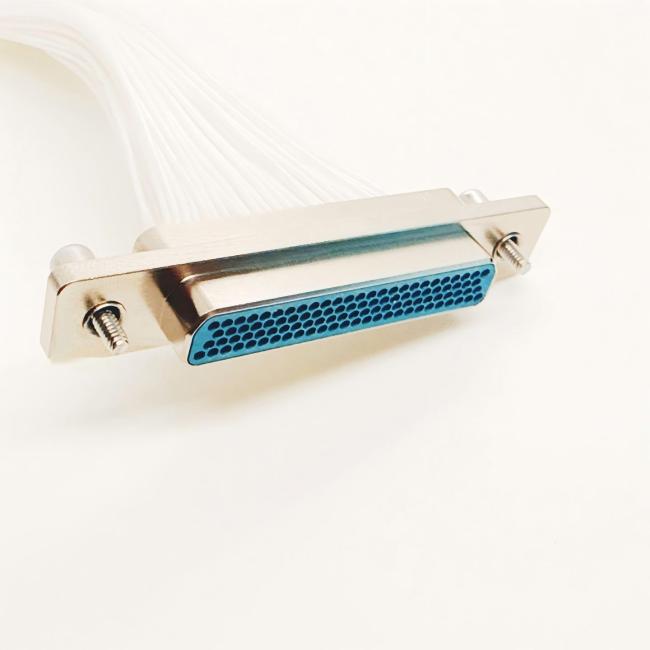

1.27mm Pitch 100 Pin J30J Micro D Connector with Metal Body for High-Density Applications
The J30J series of micro rectangular electrical connectors comply with GJB2446A (equivalent to MIL-DTL-83513), corresponding to the American MDM series products. These connectors feature precision twisted wire elastic pins with a contact piece spacing of 1.27mm, offering a compact size ideal for high-density applications.
The metal casing is available in 12 specifications ranging from 9 to 144 pins. The insulator material uses PPS to meet high-temperature resistance and aerospace application requirements. Plugs and sockets feature threaded locking, guidance, and misinsertion prevention mechanisms.
Termination forms include crimping, direct insertion, bending insertion, and welding. The crimped wire cross-sectional area ranges from 0.1mm² to 0.15mm², making these connectors suitable for various electronic and electrical systems requiring high density, miniaturization, lightweight construction, and high reliability.
| Product Model | J30J-100TJL | Contact Resistance | ≤10mΩ |
|---|---|---|---|
| Ambient Temperature | -55℃~+125℃ | Insulation Resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz 196m/s² | Medium Pressure Resistance | 800V |
| Random Vibration | Power spectral density 0.4G²/Hz, RMS acceleration 23.1G | Mechanical Life | 500 cycles |
| Impact | 735m/s² 11ms | Rated Current | 3A |
- Standard export carton packaging
- Customized specifications including logo and branding available
- Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity and ODM requirements)
