2 Holes RF Adapter Flange BMA To SMA Adapter DC-18GHz For RF Passive Components
Price:
$0.99 --$1.25 (Depending on the quantity )
MOQ:
50
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
RF Adapter BMA Female (Jack) To SMA Female(Jack) 2 Holes Flange Connector
RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.
Product display
Product Performance Details
| Product model | BMA/SMA-KFK | Contact resistance | Center contact:≤3mΩ Outer contact:≤2mΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-18GHz | Insulator | PTFE |
| Voltage standing wave ratio | ≤1.3 | Central conductor | Gold-plated beryllium copper |
| Medium pressure resistance | ≥750V RMS ,50Hz, at sea level | Temperature range | -40℃~+80℃ |
| Dielectric constant | ≥1000MΩ | Durability | ≥500 Cycles |

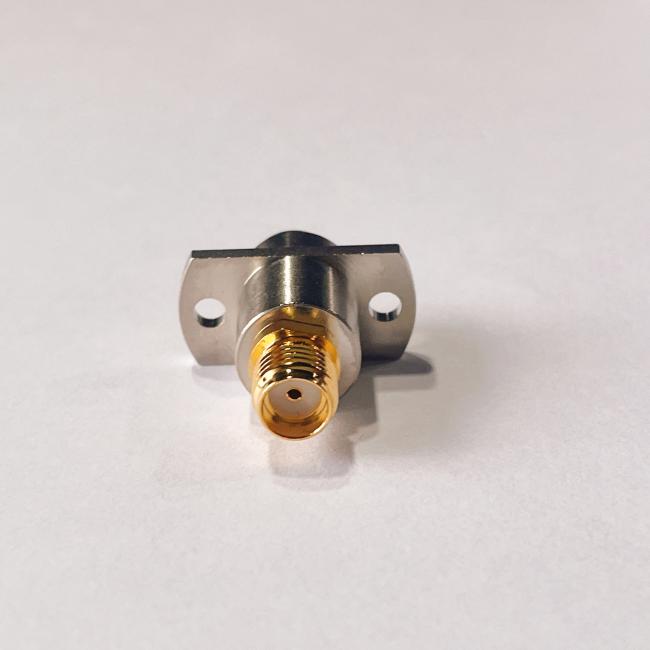

Physical product display

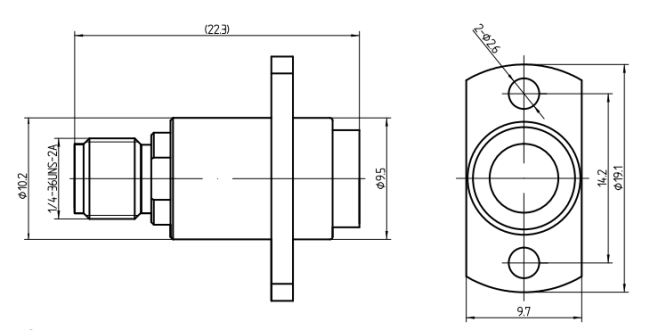

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
