Nickel Plated Brass RF Connector Adapter Customized BNC Male To N Female Adapter
RF Adapter BNC Male To N Female Adapter Nickel-plated Brass
RF Adapter is a kind of used for RF (Radio Frequency, usually refers to 3 KHZ ~ 300 GHZ Frequency band) passive components in the signal transmission system, common types are SMA/N/of BNC/TNC/MCX/UHF/SMP / 2.4 MM / 3.5 MM, etc. The main function is to achieve reliable connection and signal conversion between different types of RF interfaces, impedances or transmission media, ensuring low loss, small reflection and high stability of RF signals during transmission. It is widely used in communication, radar, test and measurement, aerospace, medical equipment and other fields.
Product display
Product Performance Details
Product model |
BNC/N-JK |
Contact resistance |
Center contact:≤1mΩ(N) 1.5mΩ(BNC) Outer contact:≤0.2mΩ(N) 1mΩ(BNC) |
Characteristic impedance |
50 ohm |
Body material |
Gold-plated brass |
Frequency range |
DC-6GHz |
Insulator | PTFE |
Voltage standing wave ratio |
≤1.25 |
Central conductor |
Gold-plated beryllium copper |
Medium pressure resistance |
≥1500V RMS ,50Hz, at sea level |
Temperature range |
-45℃~+125℃ |
Dielectric constant |
≥5000MΩ |
Durability |
≥500 Cycles |

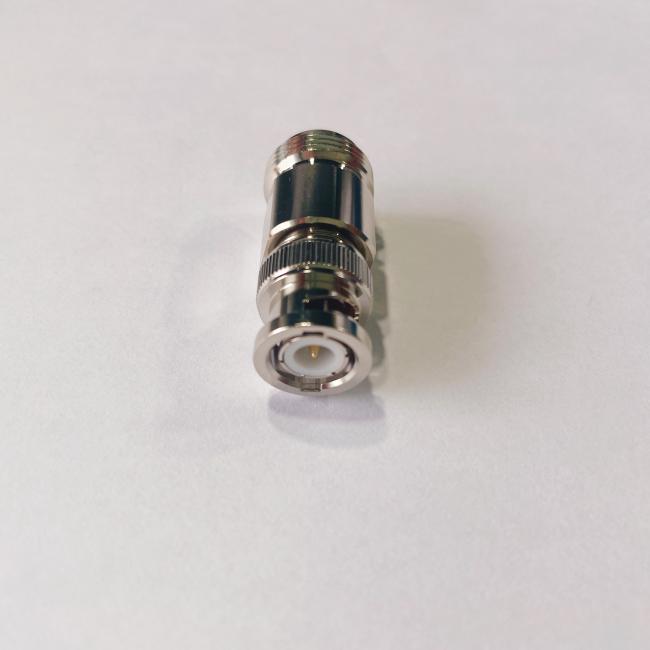

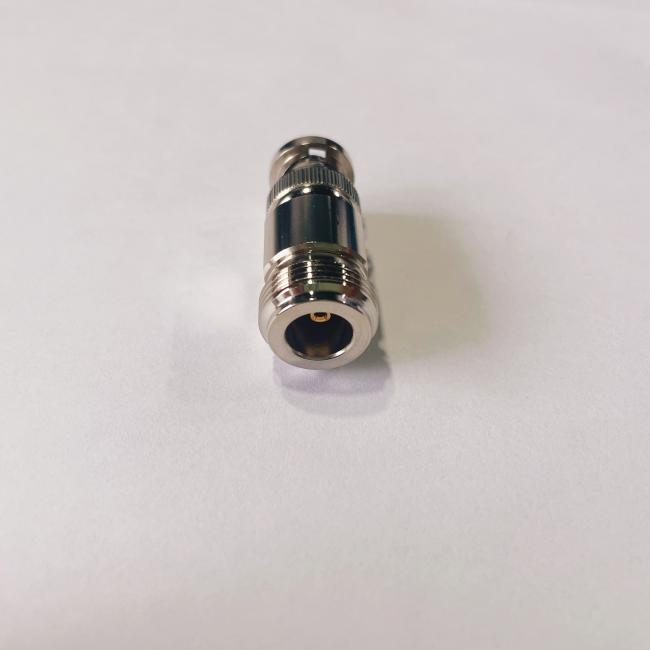

Physical product display

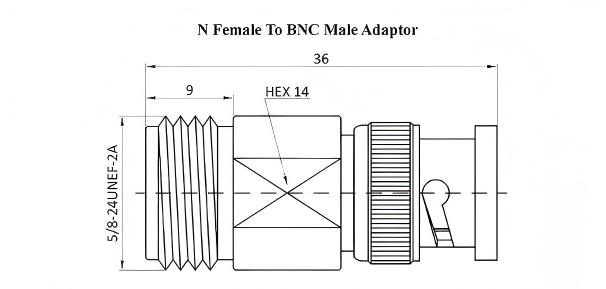

Product external dimensions

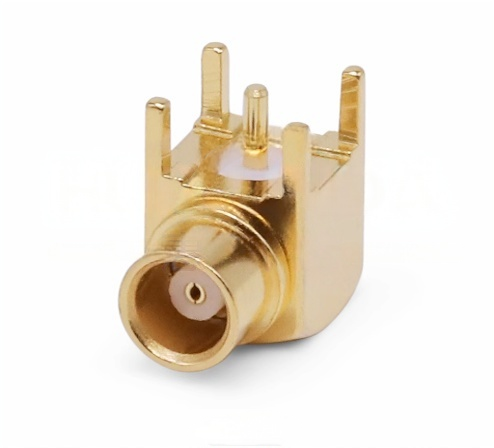

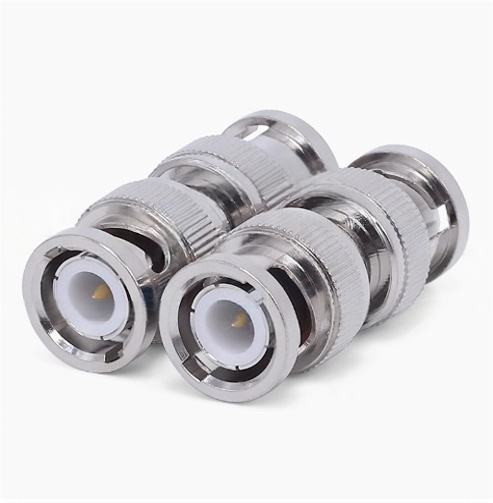

Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
