Circular MS Connector MS3112E14-4P with 1500V Withstand Voltage, Aluminum Alloy Body, and Bayonet Quick Connection
Price:
Depending on the quantity
MOQ:
50 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
MS3112E14-4P MIL-DTL-26482 MS Series 4 Pins Circular Plug Male Connector
MS series circular connectors comply with GJB598A-96(MIL-DTL-26482), featuring a bayonet type quick connection. The termination form is welding, and the socket installation options include flange type, cable type, wall-penetrating type, and nut clamping type, among others. The five-key position has a blind insertion function. Plug and socket can be equipped with both pins and holes.It is widely applied in the connection between electronic and electrical equipment in aviation, aerospace, navigation, power and other fields.
Product display
Product Performance Details
| Product model | MS3112E14-4P | Contact piece | Gold plating of copper alloy |
| Shell material | Aluminum alloy | Insulation resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz 147m/s2 | Working voltage | 600V |
| Insulator | Thermosetting plastics | Mechanical life | 500 times |
| Impact | 980m/s2 | Relative humidity | When the temperature is 40±2℃, it is 90% to 95% |
| Collision | Acceleration 392m/s2 | Withstand voltage | 1500V |
| Working temperature | -55℃ ~ +125℃ | Working Current | 25A |

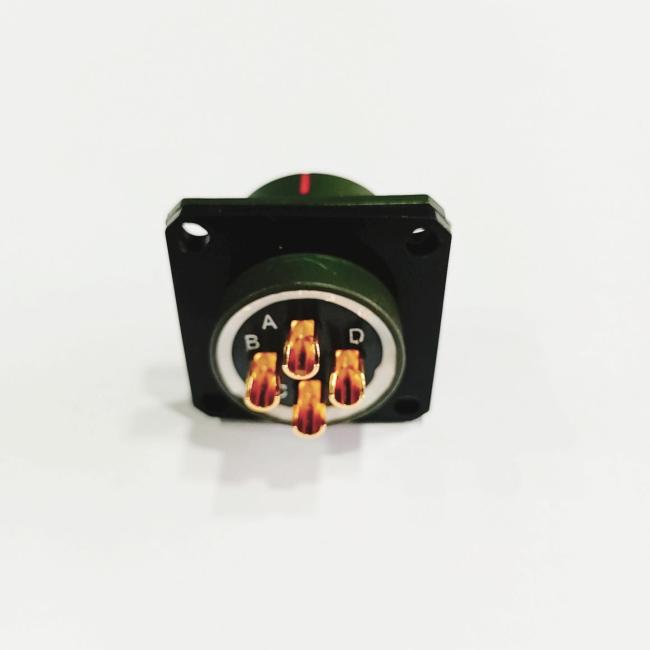

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
