DC-6GHz 50 ohm Gold-plated Brass RF Adapter DIN/N-KK Female to Female Coaxial Adapter
Price:
$3.78--$4.54 (Depending on the quantity )
MOQ:
50 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
DC-6GHz RF Female To Female Adapter DIN/L29/(7/16) Female To N Female Adapter
RF Adapters are passive components used in RF (Radio Frequency, typically 3 kHz to 300 GHz frequency band) signal transmission systems. Common types include SMA, N, BNC, TNC, MCX, UHF, SMP, 2.4mm, and 3.5mm. The primary function is to enable reliable connections and signal conversion between different types of RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability of RF signals during transmission. Widely used in communication, radar, test and measurement, aerospace, medical equipment, and other fields.
Product Performance Details
| Product Model | DIN/N-KK |
|---|---|
| Contact Resistance | Center contact: ≤1.5mΩ (DIN), 0.4mΩ (N) Outer contact: ≤1mΩ (DIN), 0.2mΩ (N) |
| Characteristic Impedance | 50 ohm |
| Body Material | Gold-plated brass |
| Frequency Range | DC-6GHz |
| Insulator | PTFE |
| Voltage Standing Wave Ratio | ≤1.25 |
| Central Conductor | Gold-plated beryllium copper |
| Medium Pressure Resistance | ≥2500V RMS, 50Hz, at sea level |
| Temperature Range | -45℃ to +125℃ |
| Dielectric Constant | ≥5000MΩ |
| Durability | ≥500 Cycles |

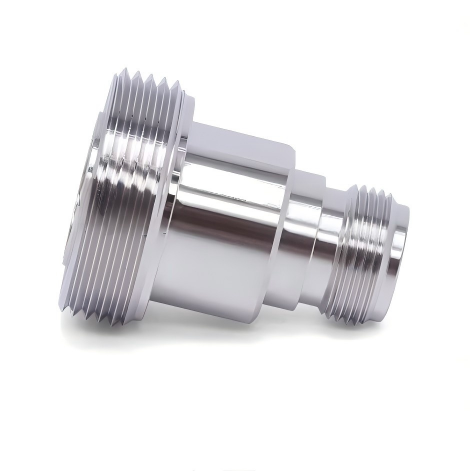

Physical Product Display

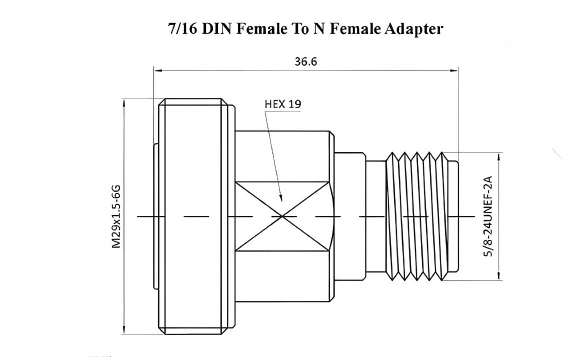

Product External Dimensions
Related Product Recommendations
Display of Strength
Office Area
Production Plant Area
Machining Production Workshop
Precision Assembly Production Workshop
Glass-to-Metal Sealed Production Workshop
Obtained Certification Certificates
Customer Visit
Product Packaging
Packaging and Shipping
- Standard export carton
- Customized specifications available (logo, etc.) according to customer requirements
- Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity, ODM requirements, etc.)
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM (Original Design Manufacturing).
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. Pricing is higher for orders under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT year-round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
Q: How long is your warranty?
A: The warranty period is three months.
