Gold Plated Brass SMA Reverse Polarity Adapter 6GHz SMA Male To Female Adapter RPSMA / SMA-JK
Price:
Depending on the quantity
MOQ:
20 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
RF Adapter RPSMA/SMA-JK Reverse Polarity SMA Male To Female Gold-plated Brass Adapter
RPSMA/SMA-JK is a 50Ω straight RF adapter designed to connect RP‑SMA male to SMA female. It features a precision brass body with nickel-plated shell and gold-plated contacts, providing low insertion loss, excellent VSWR, and stable signal transmission up to 6GHz. With reliable threaded coupling and robust construction, this adapter ensures secure connection and long service life, widely used for WiFi, antennas, RF test equipment, wireless communication systems and various high-frequency applications.
Product display
Product Performance Details
| Product model | RPSMA/SMA-JK | Contact resistance | Center contact:≤3mΩ Outer contact:≤2mΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-6GHz | Insulator | PTFE |
| Voltage standing wave ratio | ≤1.2 | Central conductor | Gold-plated beryllium copper |
| Medium pressure resistance | 1000V RMS | Temperature range | -45℃~+125℃ |
| Dielectric constant | ≥5000MΩ | Durability | ≥500 Cycles |

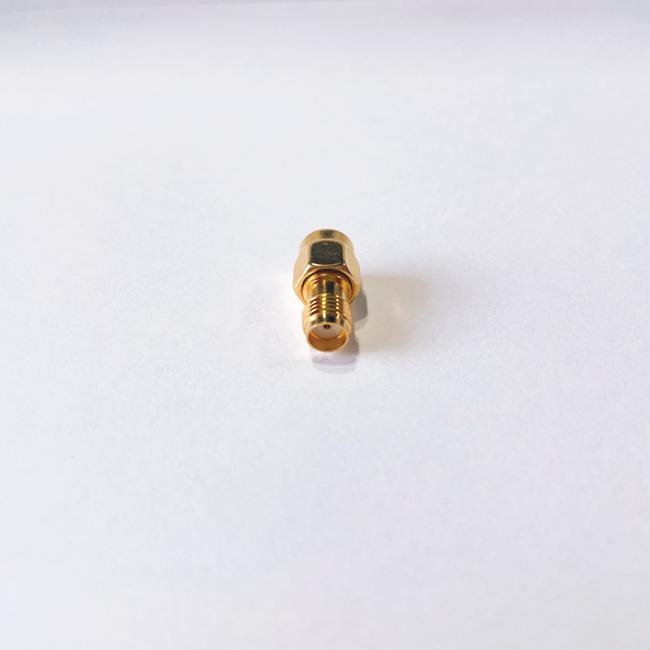

Physical product display

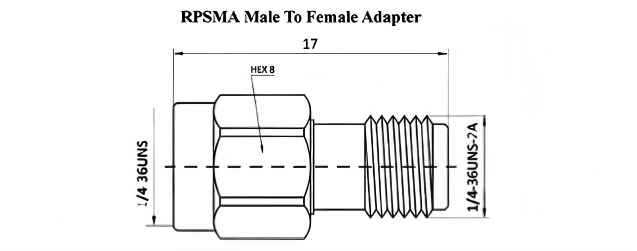

Product external dimensions
