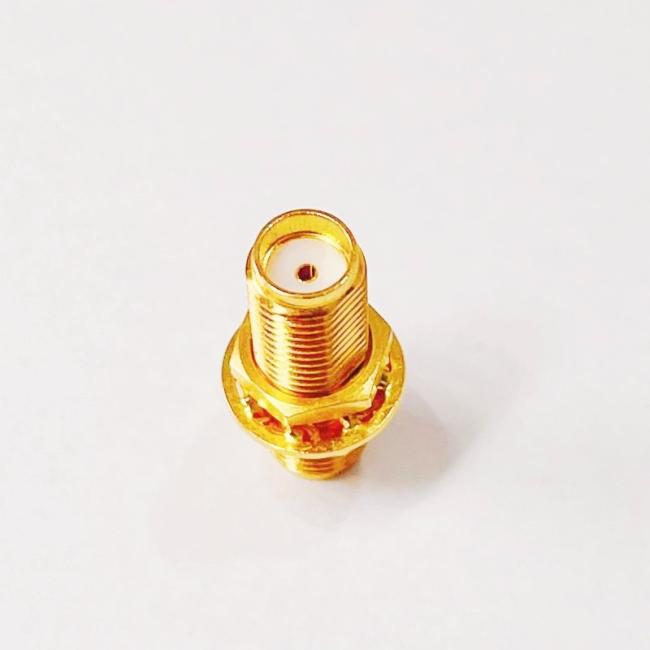

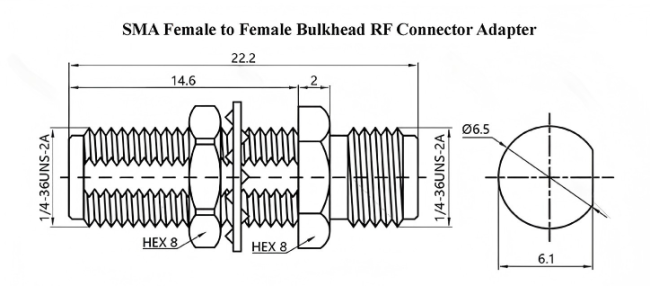

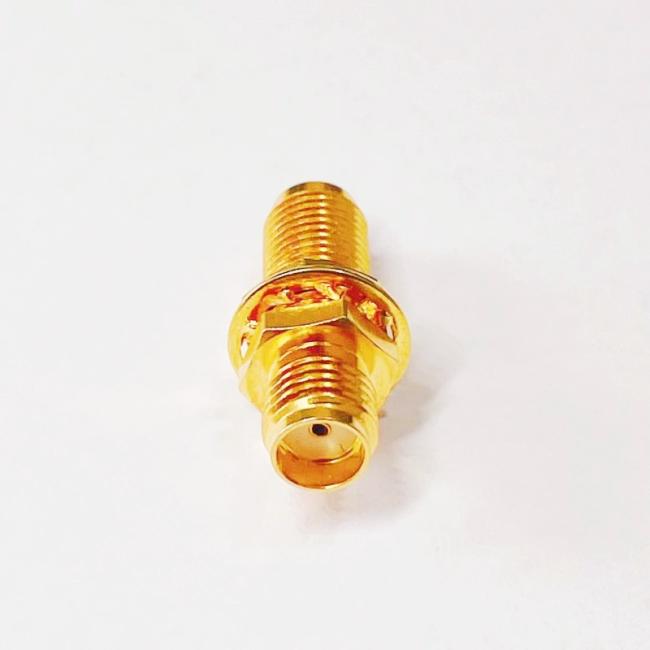

50 Ohm SMA Bulkhead Adapter Female to Female RF Adapter with 6GHz Frequency Range
RF Adapters are passive components used in signal transmission systems for Radio Frequency applications (typically 3 kHz to 300 GHz frequency band). Common types include SMA, N, BNC, TNC, MCX, UHF, SMP, 2.4mm, and 3.5mm. These adapters provide reliable connections and signal conversion between different RF interfaces, impedances, or transmission media, ensuring low loss, minimal reflection, and high stability during RF signal transmission. They are widely used in communications, radar, test and measurement, aerospace, medical equipment, and other fields.
| Product Model | SMA-KYK |
|---|---|
| Contact Resistance | Center contact: ≤3mΩ Outer contact: ≤2mΩ |
| Characteristic Impedance | 50 ohm |
| Body Material | Gold-plated brass |
| Frequency Range | DC-6GHz |
| Insulator | PTFE |
| Voltage Standing Wave Ratio | ≤1.2 |
| Central Conductor | Gold-plated beryllium copper |
| Medium Pressure Resistance | 1000V RMS |
| Temperature Range | -45℃ to +125℃ |
| Dielectric Constant | ≥5000MΩ |
| Durability | ≥500 Cycles |
- Standard export carton packaging
- Customized specifications available (logo, etc.) according to customer requirements
- Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity, ODM requirements, etc.)
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.
A: Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.
A: We accept ODM (Original Design Manufacturing) services.
A: We support free samples with freight paid on delivery.
A: 200 pieces. Pricing is higher for orders under 200 pieces.
A: Our company cooperates with international logistics companies including DHL, UPS, FedEx, TNT year-round to ensure customers receive goods quickly with competitive shipping costs. We also offer air and sea freight options.
A: Typically 3-8 working days for international express, 5-8 working days for air freight.
A: We accept L/C, T/T, Western Union, and Trade Assurance (credit card & T/T).
A: The warranty period is three months.
