MCX Connector RF Coaxial Connector DC-6GHz Gold-plated Brass with Push-in Coupling Structure for Quick Installation
Price:
Depending on the quantity
MOQ:
50
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
RG316 / RG174 MCX RF Connector DC-6GHz Crimp Male Connectors MCX-C-J-1.5
MCX-C-J-1.5 MCX Male Crimping Cable Connector for RG316/RG174 cables. MCX (Micro Coaxial Connector) is an ultra-miniature RF coaxial connector that is 30% smaller than SMB connectors with a diameter of 3.6mm. Features push-in coupling structure for low insertion/extraction force, rapid connection/disconnection, and convenient installation. Ideal for wireless communication equipment, GPS receivers, and RF test instruments.
Product Performance Specifications
| Product Model | MCX-C-J-1.5 | Body Material | Nickel-plated brass |
|---|---|---|---|
| Dielectric Constant | ≥5000MΩ | Central Conductor | Gold-plated brass |
| Characteristic Impedance | 50 ohm | Insulator Material | PTFE |
| Frequency Range | DC-6GHz | Durability | ≥500 Cycles |
| Voltage Standing Wave Ratio | ≤1.2 | Temperature Range | -45℃ to +125℃ |
| Medium Pressure Resistance | ≥1000V RMS, 50Hz, at sea level | Contact Resistance | Center contact: ≤5mΩ Outer contact: ≤2.5mΩ |

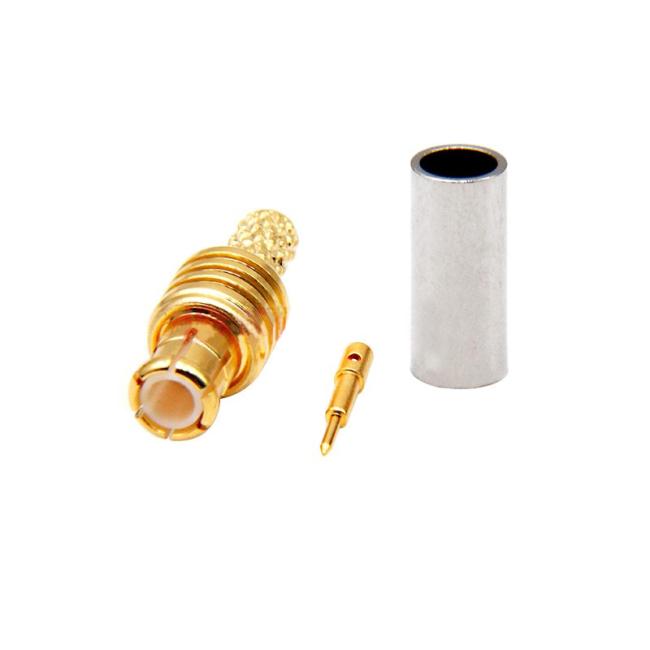

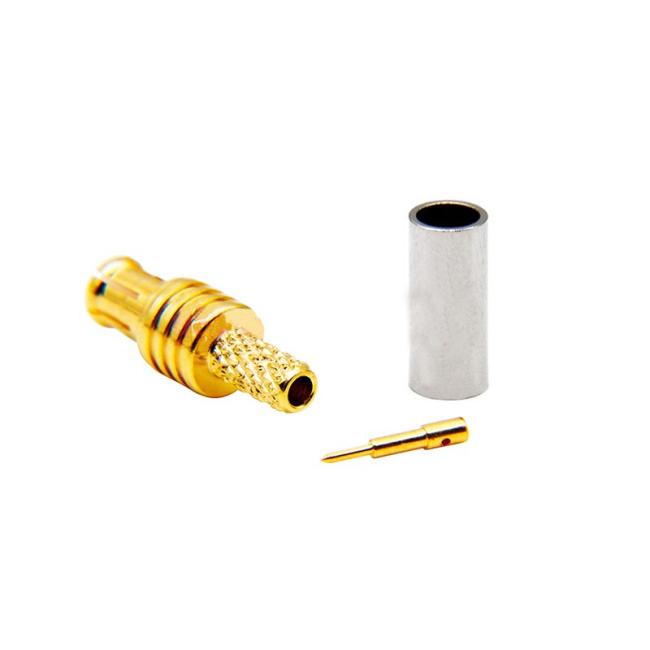

Product Images

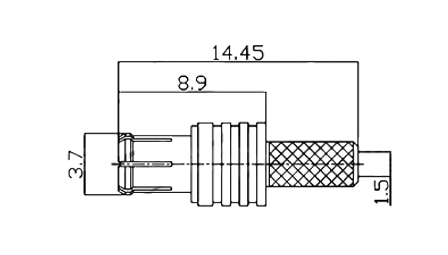

Product Dimensions
Related Products
Company Facilities
Office Area
Production Facilities
Machining Production Workshop
Precision Assembly Production Workshop
Glass-to-Metal Sealed Production Workshop
Quality Certifications
Customer Visits
Product Packaging
Packaging and Shipping
- Standard export carton packaging
- Customized specifications including logo and branding available
- Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales experience in Aeronautics, Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. Pricing is higher for orders under 200 pieces.
Which logistics company does your company ship through?
We cooperate with international logistics companies DHL, UPS, FedEx, TNT to ensure fast delivery with competitive shipping costs. Air and sea freight options also available.
How long does it usually take to receive the goods?
Generally 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
