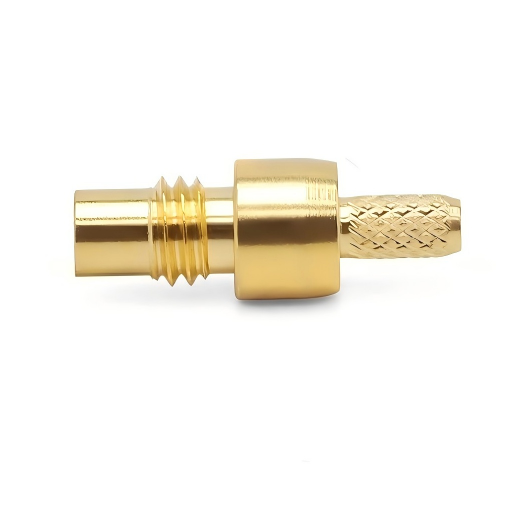

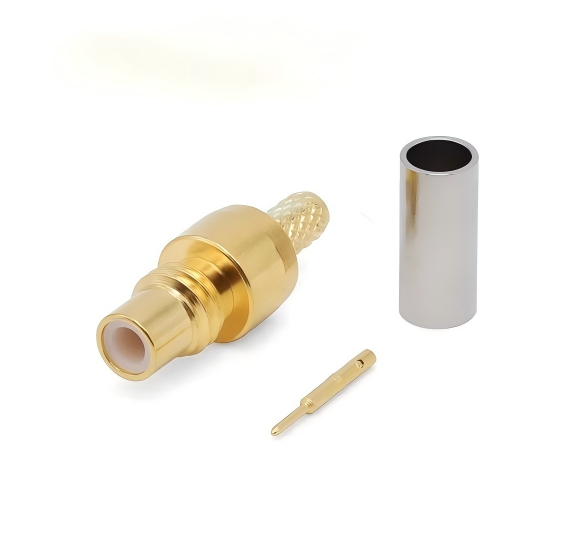

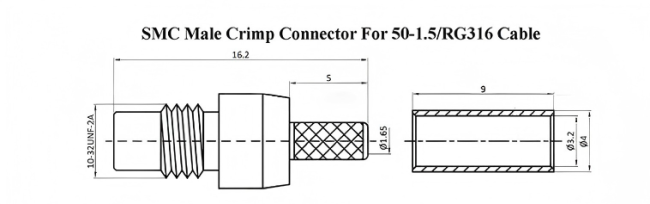

RF Connector SMC-C-J-1.5 SMC Male Crimping Type Connector For Rg316

SMC connector is a miniaturized threaded locking type RF coaxial connector, an important branch of the Subminiature series of RF connectors. It focuses on high reliability and wideband transmission capability. It adopts a coaxial structure and its size lies between that of SMA connectors and the miniature derivative models of SMC. The housing diameter is approximately 4.8mm. Adapt to high-density installation requirements. The inner conductor is made of beryllium bronze with gold plating to ensure low contact resistance and wear resistance. The insulator is made of polytetrafluoroethylene (PTFE), which features high-temperature resistance and low dielectric loss. The shells are mostly nickel-plated or gold-plated brass to enhance corrosion resistance and electromagnetic shielding effects.It features an anti-misinsertion polarization design. Some models are equipped with positioning keys to prevent device damage caused by reverse insertion and removal. It is widely compatible with interconnection scenarios of RF modules, communication equipment and test instruments

• Standard export carton
• As per customized specifications such as logo or others According to customers' requirements
• Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
