Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug with Gold-Plated Contacts and 2.54mm Double-Row Spacing in PPS Insulator
Micro Rectangular PCB Connector JL23-22TKY 22Pins Plug Connector

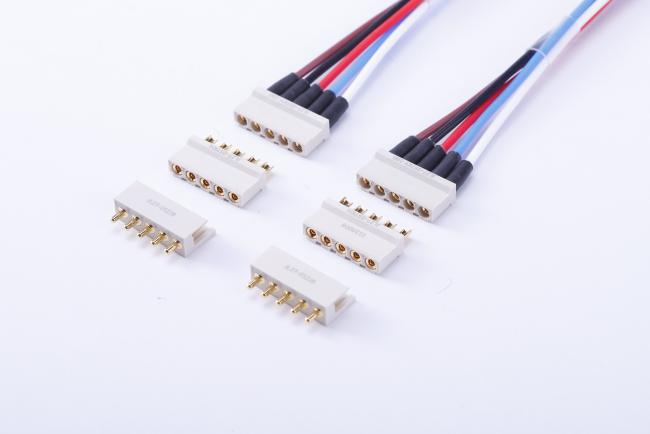

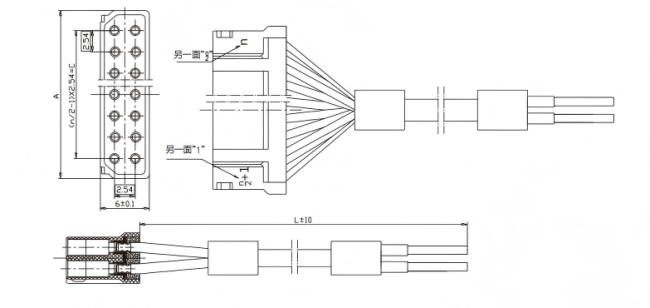

JL23 connector is a classic type of printed circuit electrical connector in the domestic industrial control field. The socket adopts a φ0.76 wire spring hole structure, and the contact piece is gold-plated, ensuring reliable performance.The standard double-row spacing is 2.54mm, which belongs to the board-to-wire connection type.

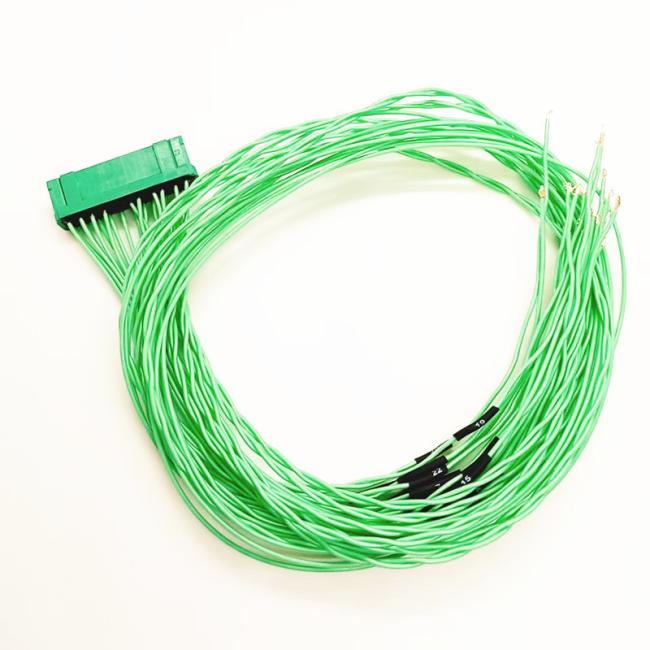

The cross-sectional area of the wire core supplied by default is 0.15mm²-0.2mm².
| Product model | JL23-22TKY | Contact resistance | ≤10mΩ |
|---|---|---|---|
| Ambient temperature | -65℃~+125℃ | Insulation resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz, Instantaneous breakage ≤1us, 147m/s2 | Medium pressure resistance | 1500V DC |
| Relative humidity | 90%-95%,(40±2℃) | Mechanical life | 500 times |
| Impact | Instantaneous breakage ≤1us,980 m/s2 | Rated current | 3 A |
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
