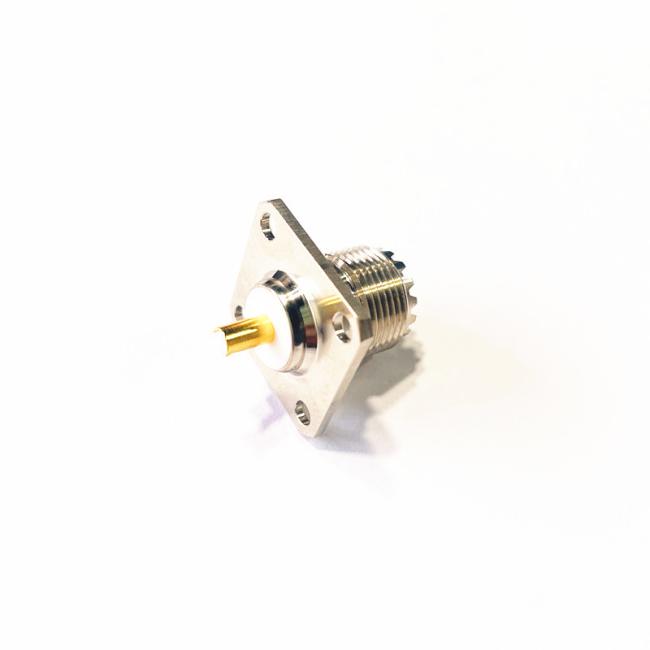

UHF Female Connector Nickel-plated Brass with PTFE Insulator for DC-300MHz Frequency Range

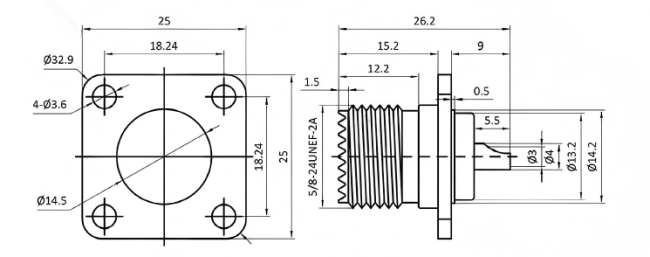

UHF Female Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal
UHF series of RF connectors feature a brass main body with nickel plating on the surface, and the inner conductors are gold-plated or silver-plated. They are equipped with high-temperature resistant insulating media, ensuring a robust structure and stable electrical conductivity. The product adopts a threaded connection design, which ensures reliable connection and strong shock resistance. It operates at frequencies ranging from DC to 300MHz and is suitable for medium and low-frequency RF transmission scenarios. It features excellent mechanical durability and environmental adaptability. It is widely used in amateur radio stations, vehicle-mounted communication, broadcasting equipment, industrial wireless systems and various low-frequency radio frequency signal transmission, and is a cost-effective connection solution in the fields of communication, industrial control, security, etc.
| Product model | UHF-KFD | Dielectric constant | ≥5000MΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-1GHz | Central conductor | Gold-plated brass |
| Voltage standing wave ratio | ≤1.25 | Insulator material | PTFE |
| Medium pressure resistance | ≥2500V RMS ,50hz, at sea level | Durability | ≥500 Cycles |
| Contact resistance | Center contact:≤1.5mΩ Outer contact:≤1mΩ | Temperature range | -45℃~+125℃ |
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
