Nickel Plated Brass N Male Connector with Gold Plated Brass for RF Coaxial Cables DC-11GHz
Price:
$1.8-$2.25 (Depending on the quantity)
MOQ:
50 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
Nickel Plated Brass N Male Right Ange Connector Crimp Connector For RG214/LMR400 Coaxial Cables
The main body of the N-type connector is made of nickel-plated brass, with the inner conductor treated with gold plating. It is paired with polytetrafluoroethylene high-frequency insulating medium. The overall structure is sturdy and durable, featuring excellent performance such as low standing wave, low loss, and high power carrying capacity. The operating frequency can reach DC - 11GHz. The threaded connection design makes it highly resistant to vibration and interference, and has excellent environmental adaptability. It can be stably applied in outdoor and industrial scenarios. It is widely compatible with low-loss RF cables such as LMR400, RG214, and RG213, and is an ideal connection solution for base station communication, 5G/WiFi equipment, RF test instruments, broadcasting and antenna systems.
Product display
Product Performance Details
| Product model | N-C-JW-7 | Dielectric constant | ≥5000MΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-6GHz | Central conductor | Gold-plated brass |
| Voltage standing wave ratio | ≤1.2 | Insulator material | PTFE |
| Medium pressure resistance | ≥2500V RMS ,50hz, at sea level | Durability | ≥500 Cycles |
| Contact resistance |
Center contact:≤1mΩ Outer contact:≤1mΩ |
Temperature range | -45℃~+125℃ |

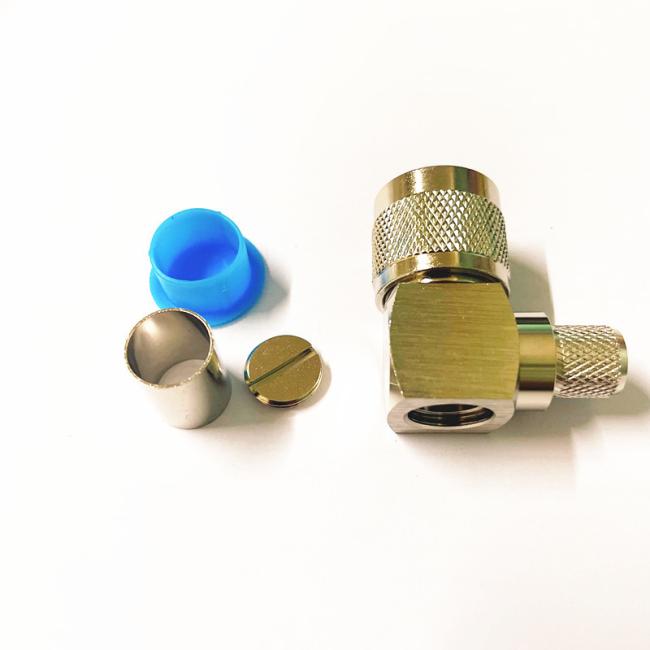

Physical product display

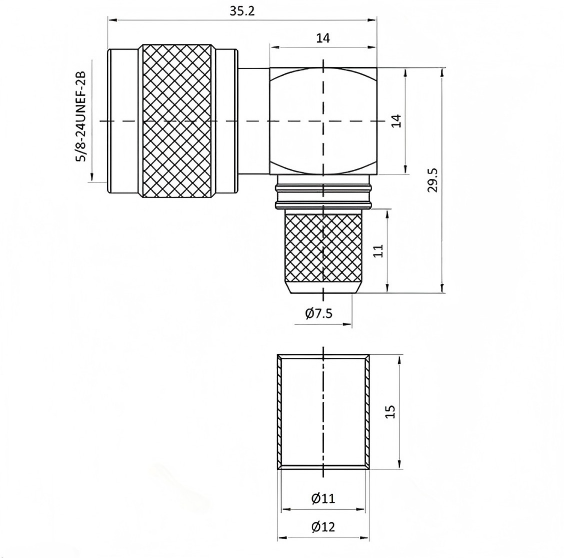

Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer Visit
Product Packaging
Packaging and Shipping
- Standard export carton
![]()
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
