50 Ohm TNC to SMA Adapter Nickel Plated Brass with Low VSWR ≤1.25 for RF Systems
Price:
$0.98-$1.55 (Depending on the quantity)
MOQ:
10 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
50 Ohm TNC Male To SMA Female Adapter TNC / SMA-JK Adapter Nickel Plated Brass
TNC/SMA-JK is a 50Ω RF coaxial adapter that connects TNC male and SMA female interfaces. Made of brass with gold-plated contacts and PTFE insulation, it features low insertion loss, low VSWR, and stable performance up to 6GHz. With an operating temperature range of -55℃ to +165℃, it is widely used in communications equipment, base stations, test instruments, aerospace and other RF systems to achieve reliable signal conversion between different connectors.
Product display
Product Performance Details
| Product model | TNC/SMA-JK | Contact resistance |
Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-6GHz | Insulator | PTFE |
| Voltage standing wave ratio | ≤1.25 | Central conductor | Gold-plated beryllium copper |
| Medium pressure resistance | 1000V RMS | Temperature range | -45℃~+125℃ |
| Dielectric constant | ≥5000MΩ | Durability | ≥500 Cycles |

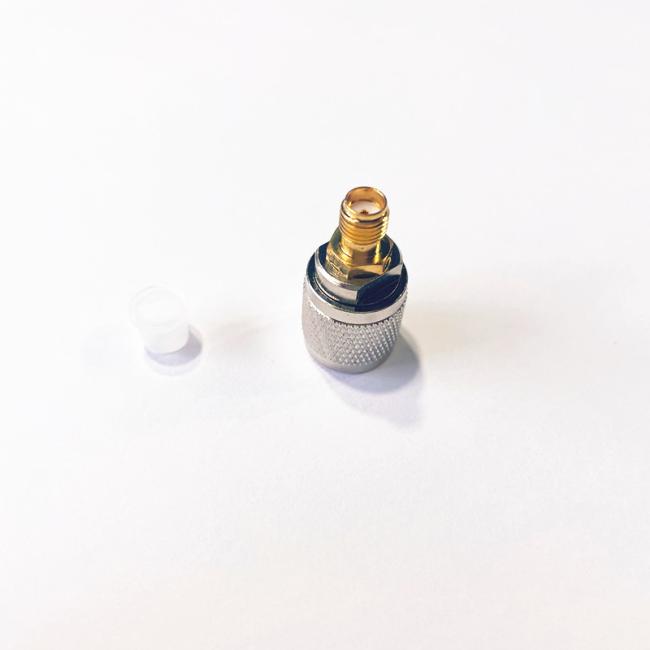

Physical product display

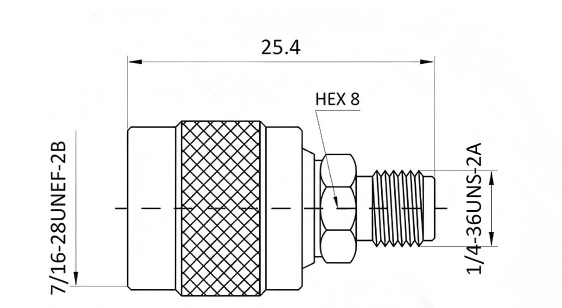

Product external dimensions

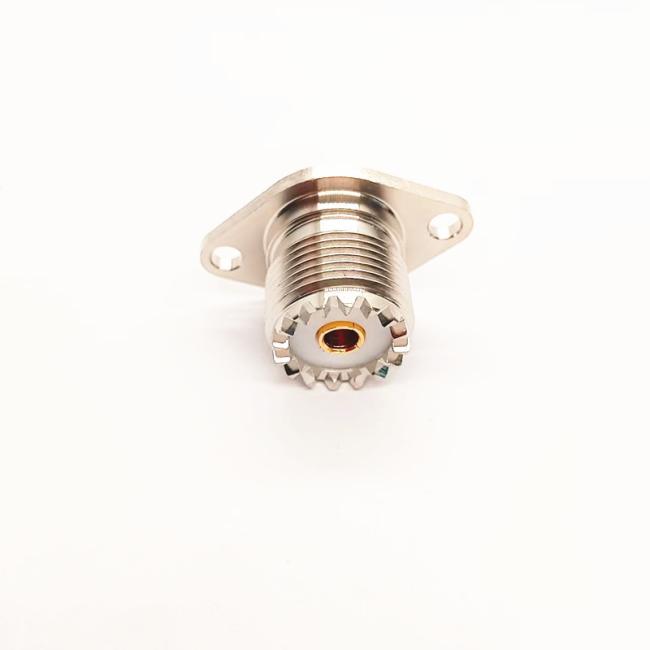

Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
