High Performance BNC Male To SMA Female Coaxial Adapter For RF Interconnect
Price:
$0.89 --$1.25 (Depending on the quantity )
MOQ:
20 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
High Performance BNC Male To SMA Female Coaxial Adapter For RF Interconnect
BNC/SMA-JK is a 50Ω straight RF adapter that connects BNC male to SMA female. It features a precision brass body with nickel-plated housing , providing low insertion loss, excellent VSWR, and stable signal transmission up to 4GHz. With reliable bayonet and threaded coupling, it offers secure connection and high durability, widely used in test equipment, communication systems, surveillance, broadcast and various RF applications.
Product display
Product Performance Details
| Product model | BNC/SMA-JK | Contact resistance SMA |
Center contact:≤3mΩ Outer contact:≤2mΩ |
| Characteristic impedance | 50 ohm | Body material SMA |
Nickel-plated brass |
| Frequency range | DC-6GHz | Body material BNC | Nickel-plated brass |
| Voltage standing wave ratio |
≤1.2 |
Central conductor |
Gold-plated brass |
| Medium pressure resistance |
≥1000V RMS ,50Hz, at sea level |
SMA screw sleeve |
Gold-plated brass |
| Dielectric constant |
≥5000MΩ |
Temperature range |
-45℃~+125℃ |
| Contact resistance BNC |
Center contact:≤1.5mΩ Outer contact:≤1mΩ |
Durability |
≥500 Cycles |
Physical product display
Related product recommendations

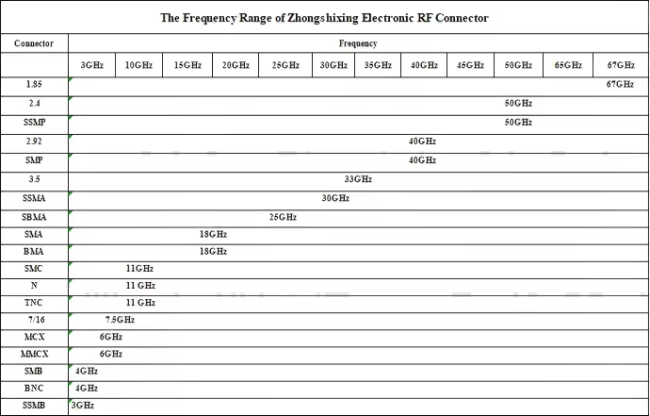

Product selection reference
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
![]()
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
