50Ω Impedance TNC to SMA RF Adapter with DC-6GHz Frequency Range and Gold-Plated Brass Construction

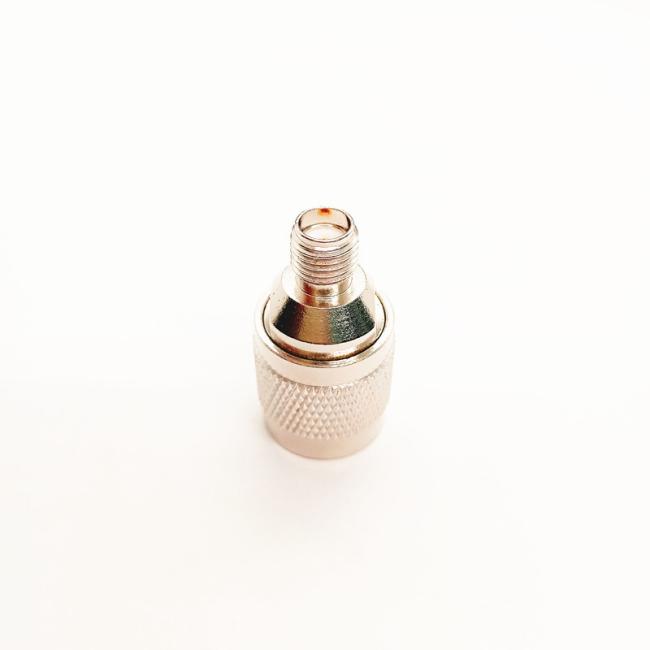

TNC/SMA-KK is a high-performance 50Ω RF adapter featuring a TNC male connector and an SMA female bulkhead mount design, enabling seamless signal conversion between TNC and SMA interface systems. Constructed with a durable stainless steel body, gold-plated contacts, and PTFE dielectric, it delivers low insertion loss, excellent VSWR performance, and reliable signal transmission up to 6GHz. Engineered for secure panel installation via bulkhead mounting, it ensures exceptional corrosion resistance and durability in harsh environments. Ideal for telecommunications, base stations, test instruments, aerospace, aerospace systems, and industrial RF equipment, this adapter provides stable, long-lasting connections with strict quality testing and custom support available.
| Product model | TNC/SMA-KK | Contact resistance |
Center contact: (TNC):≤1.5mΩ (SMA): 3 mΩ Outer contact: (TNC):≤0.2mΩ (SMA) : 2mΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-6GHz | Insulator | PTFE |
| Voltage standing wave ratio | ≤1.25 | Central conductor | Gold-plated beryllium copper |
| Medium pressure resistance | 1000V RMS | Temperature range | -45℃~+125℃ |
| Dielectric constant | ≥5000MΩ | Durability | ≥500 Cycles |
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
