2.92mm (K-Type) Female RF Connector 4-Hole Flange Mount Stainless Steel DC-40GHz
Price:
Depending on the quantity
MOQ:
10 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
2.92mm (K-Type) Female RF Connector 4-Hole Flange Mount Stainless Steel DC-40GHz
Premium 2.92mm (K-Type) Female RF Connector with 4-Hole Flange Mount. This high-quality 50Ω coaxial connector supports frequencies up to 40GHz, features a gold-plated center pin for low loss and high conductivity, and uses precision stainless steel construction for excellent durability, corrosion resistance and stability in harsh environments. Designed for secure panel mounting, it is widely used in 5G, microwave, satellite communication and test equipment, providing long-lasting reliable performance for critical RF applications.
Product display
Product Performance Details
| Product model | 2.92MM-KFD | Insulation resistance | ≥1000MΩ |
| Characteristic impedance | 50 ohm | Body material | Stainless steel |
| Frequency range | DC-40GHz | Central conductor | Gold-plated brass |
| Voltage standing wave ratio | ≤1.25 | Insulator material | PEI |
| Medium pressure resistance | 500V RMS ,50hz, at sea level | Durability | ≥500 Cycles |
| Contact resistance | Center contact:≤3mΩ Outer contact:≤2mΩ | Temperature range | -45℃~+125℃ |

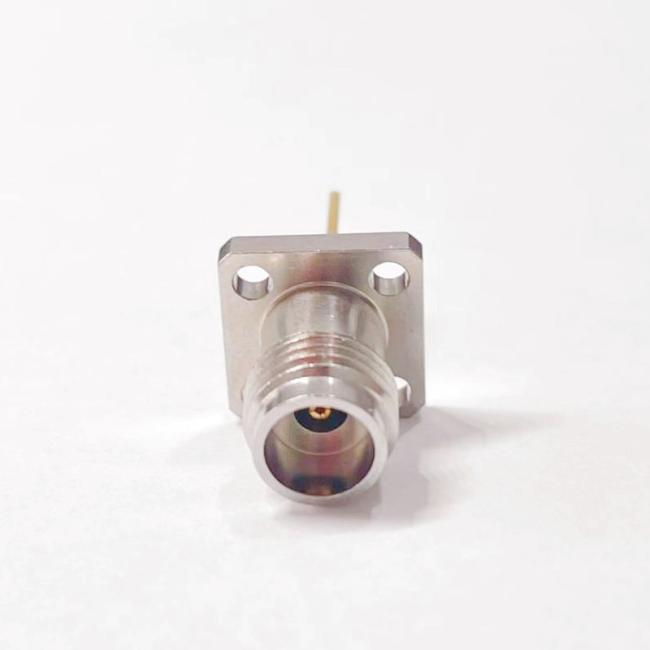

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
