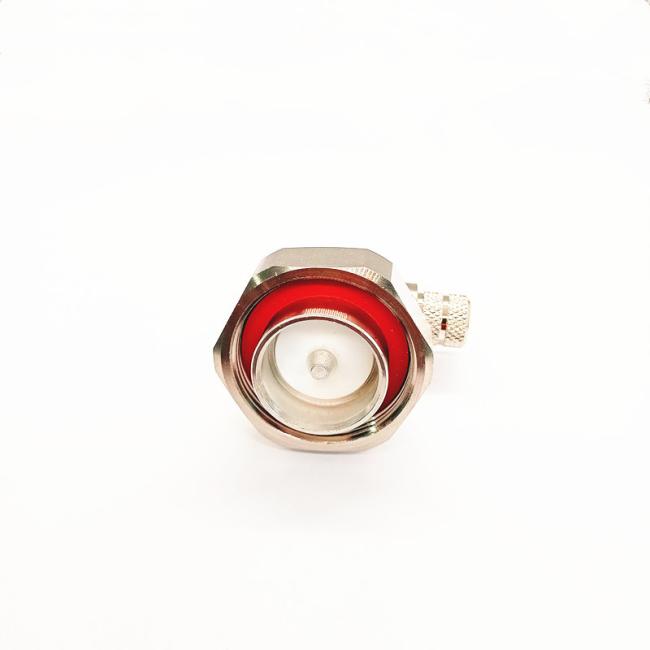

RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
RF Connector 7/16-C-JW-7 Right Angle Crimp 50Ω L29/DIN Connector For LMR400 Cable
7/16-C-JW-7 is a 50Ω high-power right-angle RF coaxial connector designed with a professional crimp termination structure for secure and reliable cable assembly. It features a robust threaded coupling mechanism, gold-plated contacts, and excellent shielding performance, delivering low VSWR, low insertion loss, and stable high-power transmission. The crimp-style design ensures strong mechanical connection, easy installation, and long-term durability in harsh working environments, making it widely used in base stations, communication equipment, radar systems, broadcast devices, and industrial RF applications requiring stable and efficient high-frequency signal transmission.
| Product model | 7/16-C-JW-7 | Dielectric constant | ≥10000MΩ |
| Characteristic impedance | 50 ohm | Body material | Nickel-plated brass |
| Frequency range | DC-6GHz | Central conductor | Gold-plated brass |
| Voltage standing wave ratio | ≤1.35 | Insulator material | PTFE |
| Medium pressure resistance | ≥2500V RMS ,50hz, at sea level | Durability | ≥500 Cycles |
| Contact resistance |
Center contact:≤1.5mΩ Outer contact: ≤0.4mΩ |
Temperature range | -45℃~+125℃ |
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
