N Female Panel Mount to U.FL IPEX RG316 RF Coaxial Cable Assembly with Nickel Plated Brass for High-Frequency Signal Transmission
Price:
$1.42-$1.80 (Depending on the quantity)
MOQ:
20 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
N Female Panel Mount to U.FL IPEX Cable RG316 RF Coaxial Cable Assembly
Product Overview
N Female Bulkhead to U.FL (IPEX) Cable Assembly is a high-performance RF coaxial pigtail designed for stable signal transmission in compact wireless and antenna systems. Built with RG316 coaxial cable, it offers low signal loss, excellent flexibility, and reliable high-frequency performance. The N female panel-mount connector ensures secure and robust installation, while the U.FL (IPEX) end enables easy connection to PCB modules. Ideal for WiFi, RF, and communication applications, this cable assembly provides durability, precision, and consistent performance in demanding environments.
Product Specifications
| Product Model | N-C-KY-1.5/IPEX1-RG316-10CM |
| Inner Conductor Material | Silver-plated copper wire |
| Insulating Layer | Polytetrafluoroethylene (PTFE) |
| Outer Conductor | Silver-plated copper wire |
| Outer Protective Layer | Perfluoroethylene-propylene copolymer (FEP) |
| Bending Radius | 13mm |
| Impedance | 50±2 |
| Temperature Range | -20℃ to +80℃ |
| Maximum Operating Voltage | 1500VMS |
| Maximum Operating Frequency | 3000MHz |

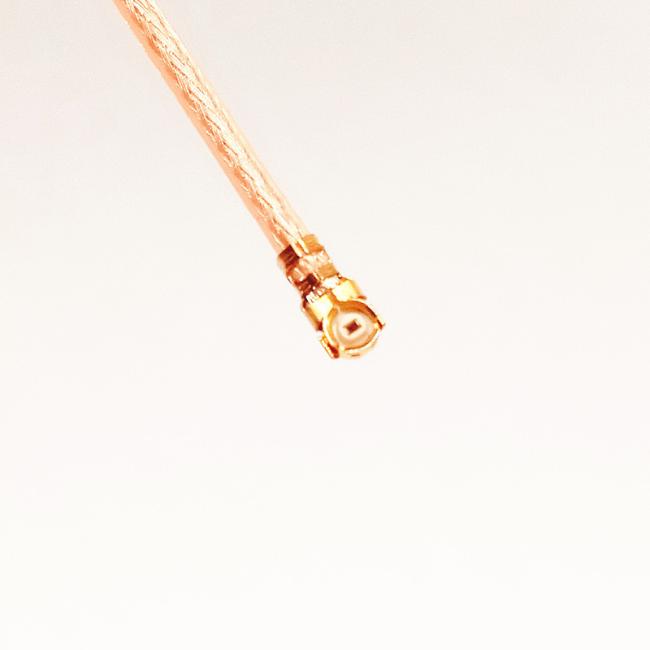

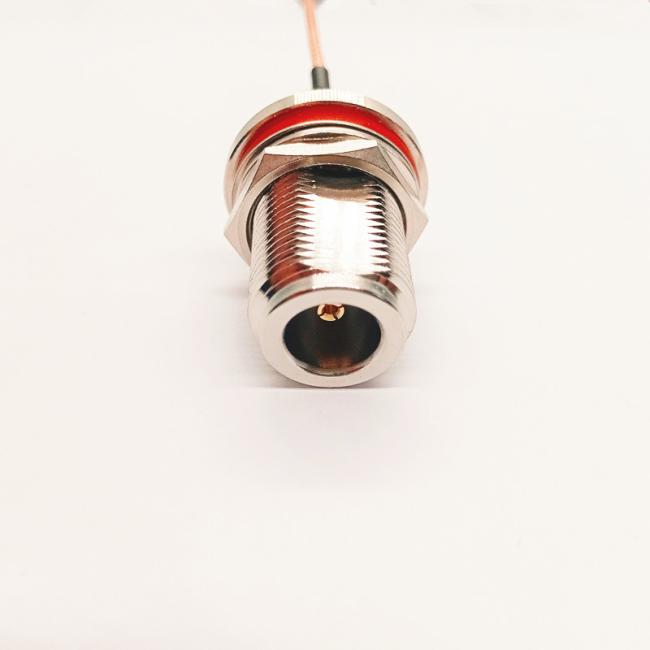

Product Images
Related Products
Manufacturing Capabilities
Machining Production Workshop
Precision Assembly Production Workshop
Glass-to-Metal Sealed Production Workshop
Quality Certifications
Customer Visits
Product Packaging
Packaging and Shipping
- Standard export carton packaging
- Customized specifications including logos available upon request
- Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing) services.
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is higher for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also offer air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
