MS3108-18-1P MIL-DTL-5015 Standard 10 Pin Male Circular Connector with Aluminum Alloy Shell and 1500V Withstand Voltage
Price:
$21.80-$29.00(Depending on the quantity)
MOQ:
20 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
MS3108-18-1P MIL-DTL-5015 Standard Circular Connector 10 Pin Male Plug Connector
MS3108-18-1P is a Aeronautics and Astronautics circular socket connector compliant with the MIL-DTL-5015 standard, featuring a threaded locking design and solder termination for easy installation and secure connection. It adopts a high-quality aluminum alloy shell with anti-corrosion plating, effectively enhancing anti-interference and durability, ensuring stable operation in harsh environments such as high temperature, vibration and impact. With a compact structure and reasonable insert arrangement, this socket connector perfectly matches the corresponding plug, suitable for high-reliability signal and power transmission in Aeronautics and Astronautics equipment, aerospace, industrial control and other fields, supporting bulk ordering and providing professional technical support.
Product Performance Specifications
| Product Model | MS3108-18-1P | Contact Material | Gold plating of copper alloy |
|---|---|---|---|
| Shell Material | Aluminum alloy | Insulation Resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz 147m/s² | Working Voltage | 600V |
| Insulator | Thermosetting plastics | Mechanical Life | 500 times |
| Impact | 980m/s² | Relative Humidity | When the temperature is 40±2℃, it is 90% to 95% |
| Collision | Acceleration 392m/s² | Withstand Voltage | 1500V |
| Working Temperature | -55℃ ~ +125℃ | Working Current | 13A |
Product Images
Front View
Side View
Product Dimensions

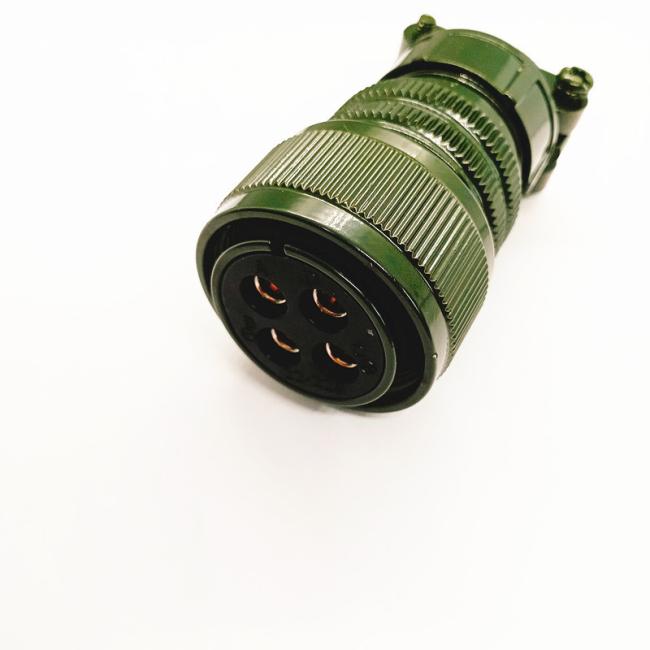

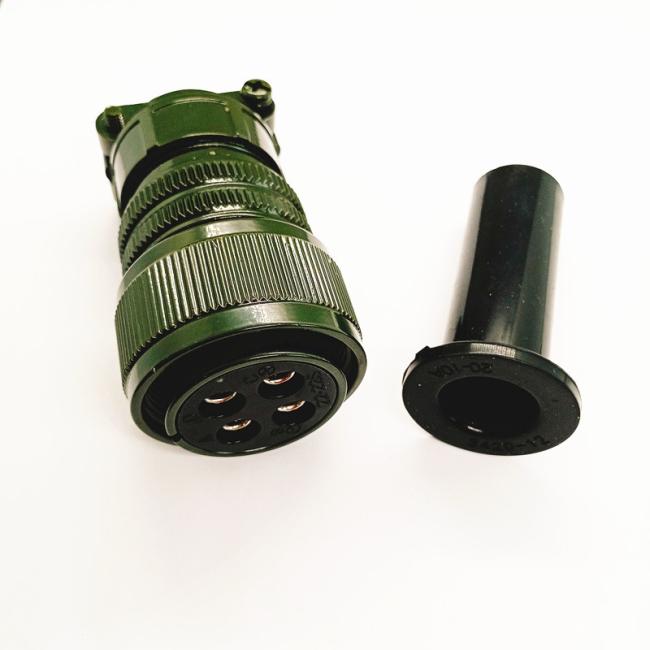

Related Products
Manufacturing Facilities
Production Plant Area
Machining Production Workshop
Precision Assembly Production Workshop
Glass-to-Metal Sealed Production Workshop
Certifications
Customer Visits
Product Packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others - According to customers' requirements
- Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
