SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
Price:
$0.50-$0.69(Depending on the quantity)
MOQ:
50 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
SMA Male Connector Gold-Plated Brass DC-6GHz 50Ω RF Connector for RG316 Cable
SMA-C-J-1.5 is a 50Ω straight crimp-type SMA male RF connector designed for 1.5mm diameter flexible coaxial cables including RG174, RG316 and LMR100A. Built with high-quality brass body and gold-plated contacts, it features low VSWR, low insertion loss and excellent signal stability operating from DC to 6GHz.
The window-style design enables easy and reliable soldering, while the robust crimp structure ensures strong mechanical strength, vibration resistance and long-term durability in harsh environments. With high performance, reliable connectivity and easy assembly, this connector is widely used in 5G communications, automotive electronics, IoT devices, industrial equipment and wireless systems.
Product Performance Specifications
| Product model | SMA-C-J-1.5 | Dielectric constant | ≥5000MΩ |
| Characteristic impedance | 50 ohm | Body material | Gold-plated brass |
| Frequency range | DC-6GHz | Central conductor | Gold-plated brass |
| Voltage standing wave ratio | ≤1.35 | Insulator material | PTFE |
| Medium pressure resistance | ≥1000V RMS, 50Hz, at sea level | Durability | ≥500 Cycles |
| Contact resistance | Center contact: ≤3mΩ Outer contact: ≤2mΩ |
Temperature range | -45℃ to +125℃ |
Product Images

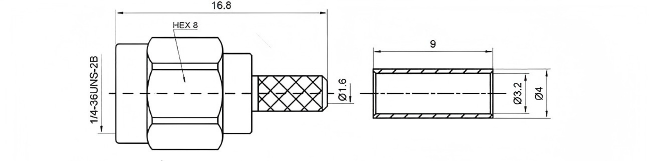

Product Dimensions
Related Products
Manufacturing Capabilities
Production Facilities
Precision Assembly Production
Glass-to-Metal Sealed Production
Quality Certifications
Customer Engagement
Packaging & Shipping
- Standard export carton packaging
- Customized specifications including logo and other requirements available
- Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?
Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
What are the main products of your company?
Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Does your company accept customized products?
We accept ODM (Original Design Manufacturing).
Does your company provide free samples?
We support free samples with freight paid on delivery.
What is the minimum order quantity of your company's products?
200 pieces. The price is more expensive for orders under 200 pieces.
Which logistics company does your company ship through?
Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also provide air and sea freight options.
How long does it usually take to receive the goods?
Generally, 3-8 working days for international express, 5-8 working days for air freight.
What payment methods does your company accept?
We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).
How long is your warranty?
The warranty period is three months.
