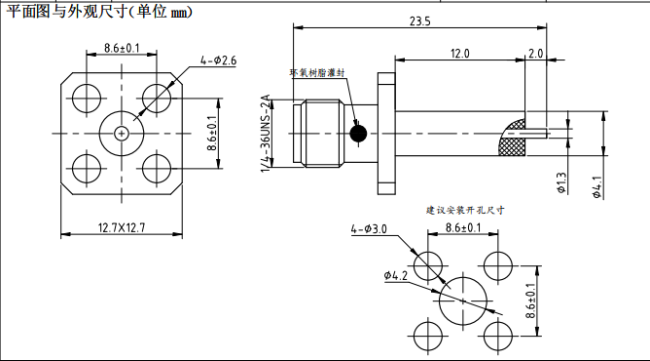

DC-18GHz SMA-KFD197 SMA Female 4 Hole Flange 12.7*12.7mm Connector
SMA-KFD197 is a high-performance, 50Ω RF interconnect featuring a 4-hole flange mount and SMA female (jack) interface, engineered for DC–18 GHz microwave and RF systems. Precision-machined from brass with nickel/gold plating, beryllium copper gold-plated contacts, and PTFE insulation, it delivers low VSWR (≤1.10+0.02F), ultra-low insertion loss, and exceptional shielding. Built to MIL-C-39012 standards, it offers rugged durability, 500+ mating cycles, and operates reliably from -65°C to +165°C. Compact, vibration-resistant, ideal for PCB/equipment panel mounting in aerospace, defense, 5G, satcom, test & measurement, and industrial RF systems.
|
Product model |
SMA-KFD197 | Dielectric constant |
≥5000MΩ
|
|
Characteristic impedance |
50 ohm | Body material | Gold-plated brass |
|
Frequency range |
DC-18GHz |
Central conductor |
Gold-plated brass |
|
Voltage standing wave ratio |
≤1.25 | Insulator material | PTFE |
|
Medium pressure resistance |
≥1000V RMS ,50hz, at sea level | Durability | ≥500 Cycles |
|
Contact resistance |
Center contact:≤3mΩ Outer contact:≤2mΩ |
Temperature range | -45℃~+125℃ |
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
