Y11 Series 10-Pin Bayonet Aviation Plug Connector with EMI Shielding and Gold-Plated Contacts for Aerospace and Industrial Applications
Price:
$12.80-$16.95(Depending on the quantity)
MOQ:
10 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
Y11*P-1210TJ5 10-Pin Bayonet Aviation Plug Shielded Circular Connector
Y11*P-1210TJ5 is a 10-pin male plug from the Y11 series, featuring an inner bayonet lock for quick, secure mating. Its P-type nickel-plated aluminum shell provides 360° EMI shielding and IP65 protection against dust and water. Built with gold-plated solder contacts, it ensures low-resistance conduction and 500+ mating cycles. Operating reliably from -55°C to +125°C, it withstands high vibration (10Hz–2000Hz) and shock (980m/s²), meeting GJB101A-97 standards. Compact and lightweight, it’s ideal for aerospace, defense, industrial automation, and marine electronics needing robust signal/power connections.
Product display
Product Performance Details
| Product model | Y11*P-1210TJ5 | Contact piece | Gold plating of copper alloy |
|---|---|---|---|
| Shell material | Aluminum alloy | Insulation resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz 196m/s2 | Working voltage | 600V |
| Insulator | Thermosetting plastics | Mechanical life | 500 times |
| Impact | 980m/s2 | Relative humidity | When the temperature is 40±2℃, it is 90% to 95% |
| Collision | Acceleration 392m/s2 | Withstand voltage | 1500V |
| Working temperature | -55℃ ~ +125℃ | Working Current | 10A |

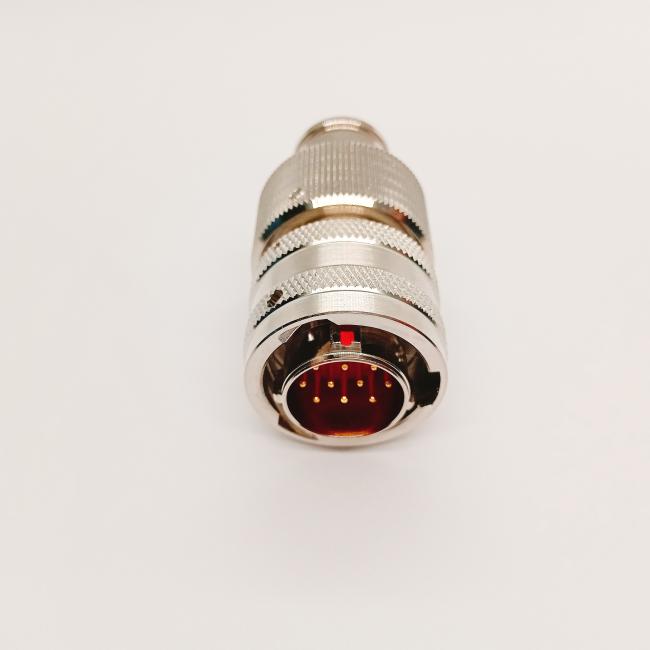

Physical product display

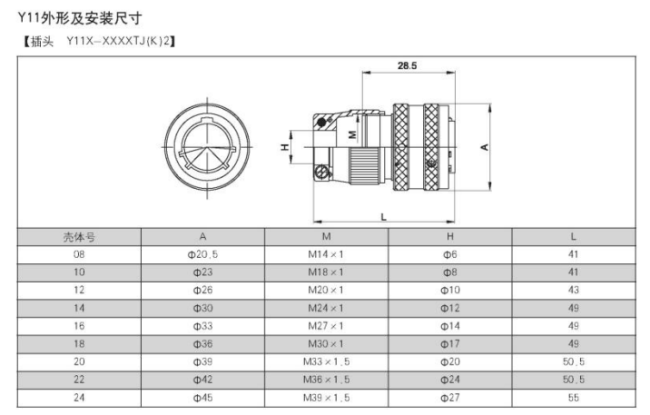

Product external dimensions

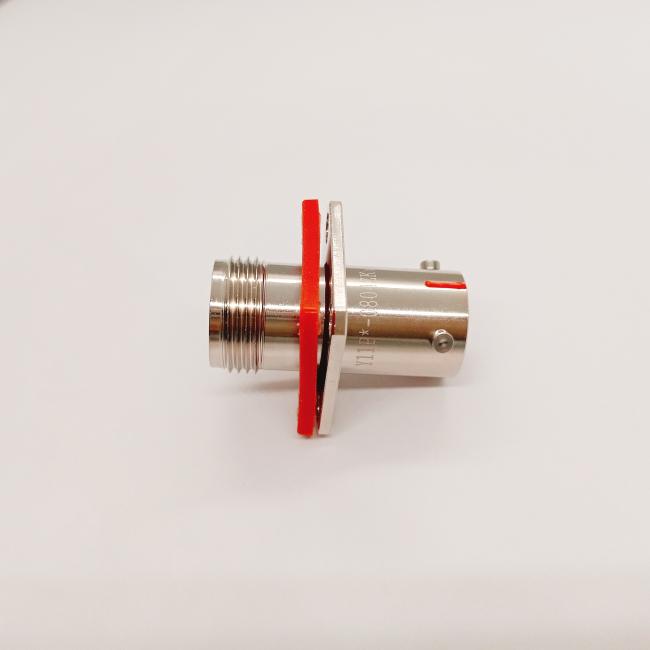

Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
