Y11PⅡ-1419ZJ10 19 Pin Socket Aviation Connector with Gold-Plated Contacts, Bayonet-Locked Design, and 1500V Withstand Voltage
Price:
$12.80-$17.00 (Depending on the quantity)
MOQ:
10 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
Aviation Connector Y11PⅡ-1419ZJ10 19 Pin Socket Connector Welding Type For Instrument
Y11PⅡ-1419 ZJ10 is a high-precision bayonet-locked circular PCB receptacle designed for industrial electronic connection. Equipped with 19 corrosion-resistant gold-plated contacts, this connector ensures low resistance and stable signal transmission under 3A rated current and 300V voltage. Featuring quick bayonet locking, excellent shock resistance and vibration resistance, it avoids loose connection in harsh working conditions. Compact structure and standard PCB welding design make it easy for installation. It perfectly pairs with Y11PⅡ-1419 TK plug and is widely applied in automation systems, instrumentation, communication and aerospace electronic equipment.
Product display
Product Performance Details
| Product model | Y11PⅡ-1419ZJ10 | Contact piece | Gold plating of copper alloy |
|---|---|---|---|
| Shell material | Aluminum alloy | Insulation resistance | ≥5000MΩ |
| Vibration | 10Hz~2000Hz 196m/s2 | Working voltage | 600V |
| Insulator | Thermosetting plastics | Mechanical life | 500 times |
| Impact | 980m/s2 | Relative humidity | When the temperature is 40±2℃, it is 90% to 95% |
| Collision | Acceleration 392m/s2 | Withstand voltage | 1500V |
| Working temperature | -55℃ ~ +125℃ | Working Current | 10A |

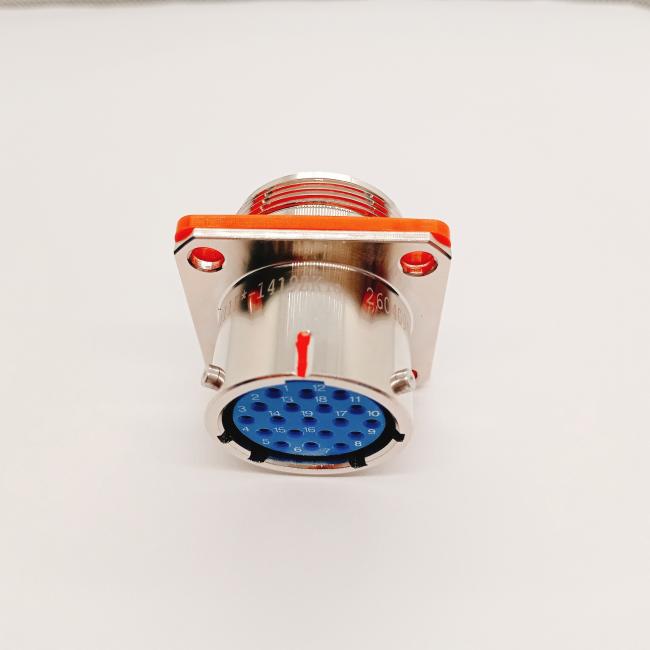

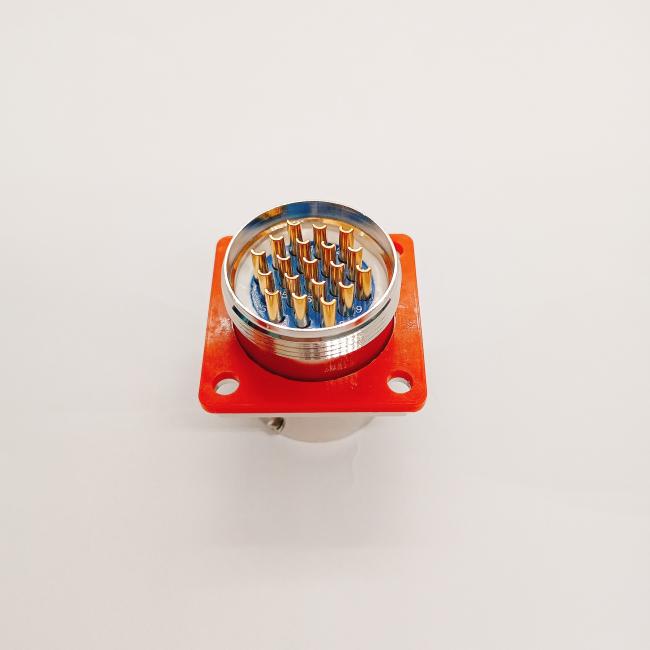

Physical product display
Product external dimensions
Related product recommendations
Display of Strength
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
