DC-6GHz 4.3-10/SMA-JJ 4.3-10 Male To SMA Male miniDIN/SMA-JJ RF Coaxial Adapter
Price:
$4.50-$5.70 (Depending on the quantity)
MOQ:
10 pcs
Delivery Time:
5-8 Days
Brand:
ZSX
Product Description
DC-6GHz 4.3-10/SMA-JJ 4.3-10 Male To SMA Male mini DIN/SMA-JJ RF Coaxial Adapter
4.3-10 Male to SMA Male Coaxial Adapter is a high-precision RF conversion component tailored for wireless communication infrastructure. The adapter shell is made of high-purity brass and processed with premium tri-metal plating technology, which effectively enhances anti-oxidation, anti-corrosion and weather resistance. It can maintain stable structural and electrical performance for a long time in complex and harsh outdoor and base station working environments.
The built-in high-precision gold-plated contact core minimizes contact resistance, effectively reduces signal insertion loss and signal attenuation. Strict industrial 50Ohm impedance matching and low VSWR design avoids signal reflection, distortion and interference, realizing smooth and stable signal transmission in the full DC-6GHz frequency band. The product meets strict low PIM technical standards, fully adapting to the performance requirements of 5G base stations and high-precision wireless communication systems.
Adopting integrated straight threaded docking structure, the adapter can be installed manually without auxiliary tools. The threaded locking structure is tight and firm, effectively preventing loosening and poor contact caused by long-term vibration and frequent plugging and unplugging. Each product undergoes strict electrical performance and structural testing before delivery, with stable quality and long service life. It is a universal and reliable matching accessory for communication antennas, transceivers, RF test instruments and wireless network engineering.
Product display
Product Performance Details
| Product model | 4.3-10/SMA-JJ | Contact resistance | Center contact:(4.3-10):≤1mΩ (SMA):3 mΩ Outer contact: (4.3-10):≤1mΩ (SMA):2.5mΩ |
|---|---|---|---|
| Characteristic impedance | 50 ohm | Body material | Brass plated with ternary alloy |
| Frequency range | DC-6GHz | Insulator | PTFE |
| Voltage standing wave ratio | ≤1.3 | Central conductor | Gold-plated beryllium copper |
| Medium pressure resistance | 1000V RMS | Temperature range | -45℃~+125℃ |
| Dielectric constant | ≥5000MΩ | Durability | ≥500 Cycles |

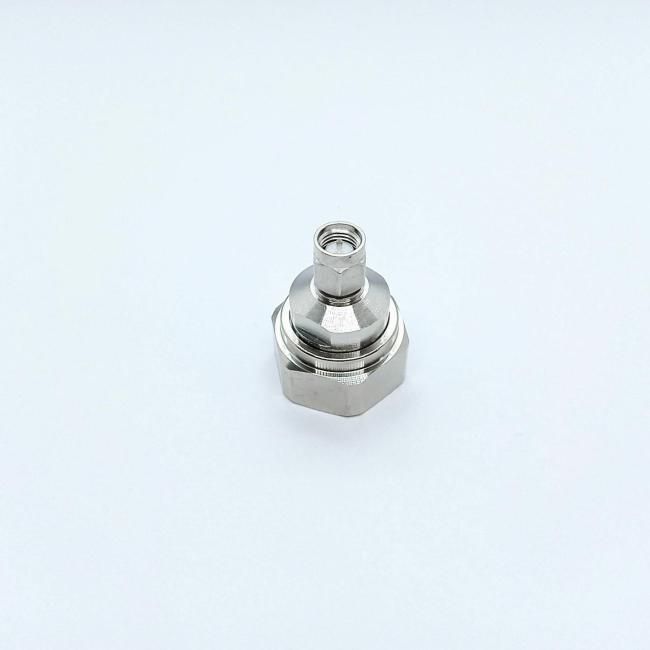

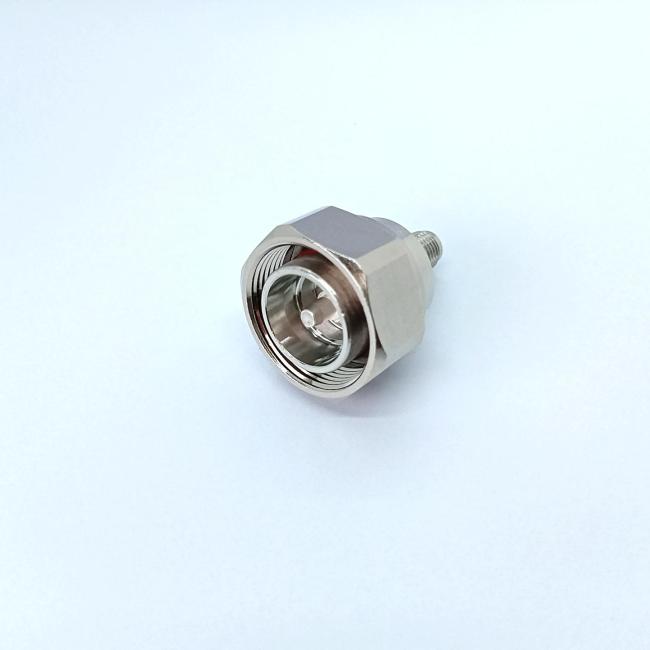

Physical product display

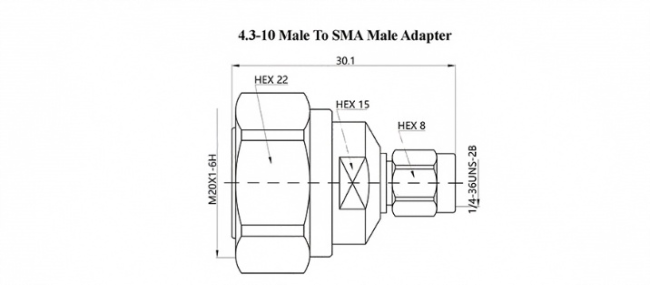

Product external dimensions
Related product recommendations
Display of Strength
Office area
Production Plant Area
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
Obtained Certification Certificate
Customer visit
Product packaging
Packaging and Shipping
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
