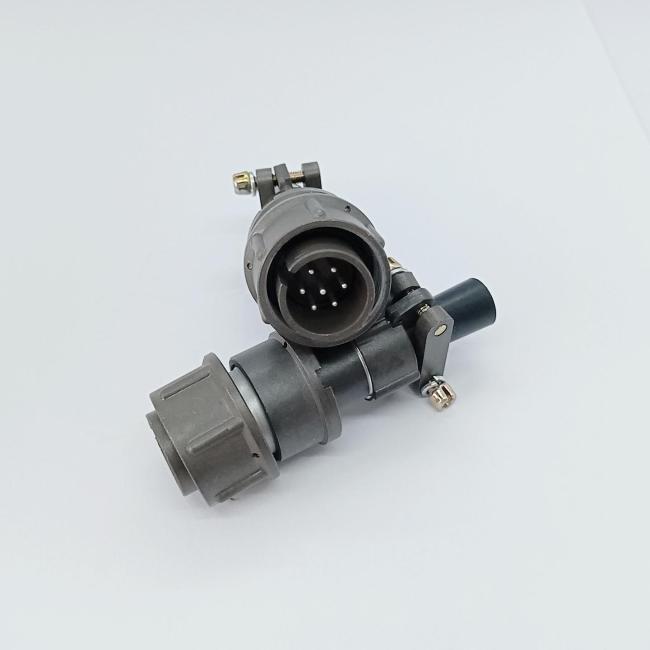

2PM18J7QB2 7 Pin Male Straight Unshielded Cable Plug 2PM Series Russian Standard Circular Connector
2PM18J7QB2 circular connector follows Russian 2PM series specification, it is a straight non‑shielded cable plug with 7 male pin contacts. The shell is made of high‑strength aluminum alloy with anti‑corrosion surface treatment, adapting to complex industrial and field working conditions.
Contact pins adopt silver‑plated process, featuring low contact resistance and stable electrical performance. Thread‑type mating locking effectively prevents accidental disconnection caused by strong shock and vibration. Contact termination is solder type for wire soldering assembly.
It can work steadily within‑60℃ ~ +200℃ temperature range, good mechanical and electrical stability after repeated mating cycles. Mainly applied for vehicle‑mounted devices, industrial control instruments for power and signal interconnection.
| Product model | 2PM18J7QB2 | Insulation resistance | ≥1000MΩ (normal), ≥20MΩ (damp heat) |
|---|---|---|---|
| Ambient temperature | -60℃~+200℃(bakelite) | Shock acceleration | Once at 500g, multiple times at 100g |
| Vibration acceleration | 10~5000Hz 50g | Working voltage | ≤560V |
Machining production workshop
Precision Assembly Production Workshop
Glass-to-metal sealed production workshop
- Standard export carton
- As per customized specifications such as logo or others According to customers' requirements
- Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
