Tck36A Fanuc System Medium Duty CNC Slant Bed Metal Lathe Machine

Description:

The TCK36A is a compact, high-precision CNC slant bed lathe built for efficient turning of small-to-medium shaft and disc parts. It features a 45° one-piece cast iron slant bed with hardened linear guide rails, ensuring structural rigidity, thermal stability and gravity-assisted chip removal. The lathe is equipped with a high-speed spindle (up to 5000 rpm, A2-5 standard), 8/12-station servo turret (live tooling/Y-axis optional) and advanced CNC control (Fanuc/GSK optional).

• Application:

This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip.Suitable for cars, motorcycles, electronics, aerospace and other industries to high efficiency, large quantity and high precision of parts processing Machining precision can reach level 7.

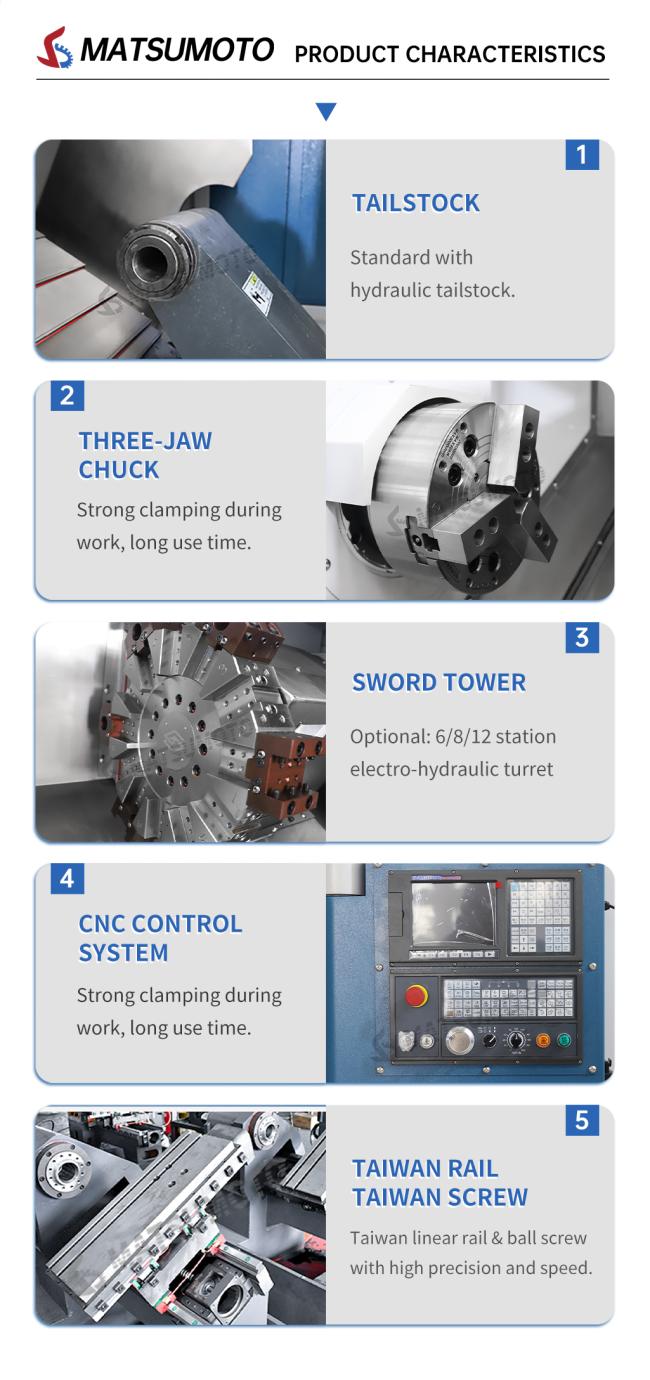

Turning various threads, arcs, cones, and inner and outer surfaces of rotating bodies. High speed, high precision, and high rigidity spindle unit. Standard hydraulic tailstock, optional servo programmable tailstock.
