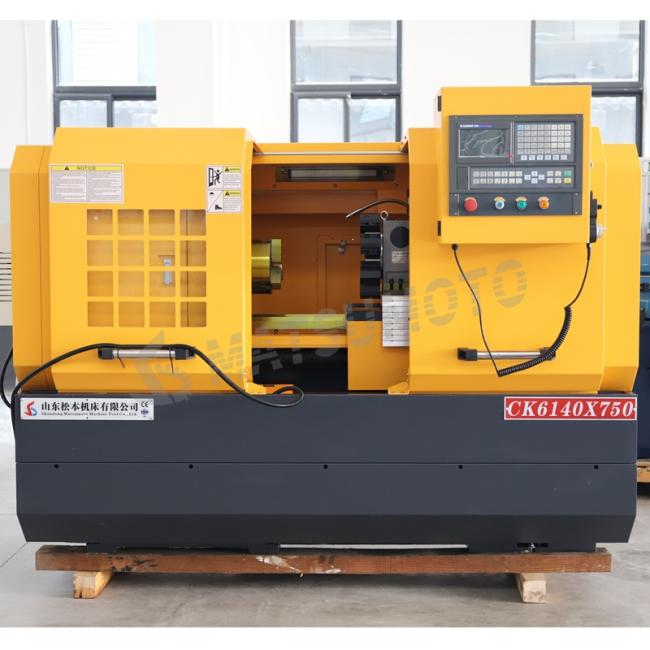

CK6140 Horizontal Flat Bed CNC Lathe Machine High Precision 750mm 1000mm 1500mm
CK6140 Horizontal CNC Lathe Machine High Precision Flat Bed Lathe
|
PROJECT |
UNIT |
CK6140 |
|
Max. Swing over bed |
mm |
400 |
|
Max. Swing Dia.over slide |
mm |
200 |
|
Max. Processing length |
mm |
750/1000/1500 |
|
X axis travel |
mm |
240 |
|
Spindle speed series |
/ |
2 gears/promise |
|
Spindle speed range |
r/min |
50-2000 |
|
Spindle nose |
/ |
A2-6 |
|
Diameter of spindle through hole |
mm |
52/82 |
|
Taper of spindle front hole |
mm |
MT5 |
|
Motor power of spindle |
kw |
5.5 |
|
Chuck size |
mm |
200 |
|
X/Z axis servo motor torque |
N.M |
X:4/Z:6 |
|
X/Z axis rapid fast moving |
m/min |
X:6/Z:8 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Tailstock quill diameter |
mm |
60 |
|
Tailstock quill travel |
mm |
130 |
|
Tailstock quill taper |
/ |
MT4 |
|
Tool post form |
/ |
4 station electric tool post |
|
Tool size |
mm |
20*20 |
|
Weight |
kg |
2100 |
|
Dimension |
mm |
2500*1500*1650 |
|
Standard Accessories |
Optional Accessories |
|
Frequency Spindle; 200mm 3-jaw Manual Chuck; 4 station turret; Manual Tailstock; Full-splash Guard Stepless speed change |
Hydraulic Chuck; Hydraulic tailstock; step speed change by manual; Auto 3-step speed change; 6/8/12-station turret; Center Rest and follow rest; 4-Jaw chuck. Living tools |
Machine Details:
