1000x550mm Cast Iron Vertical Milling Machine VMC855 3 Axis CNC Machining Center
Price:
$20500-22500
MOQ:
1
Delivery Time:
20 working days
Brand:
Matsumoto
Product Description
VMC855 Vertical Milling Machine 3 Axis CNC Machining Center

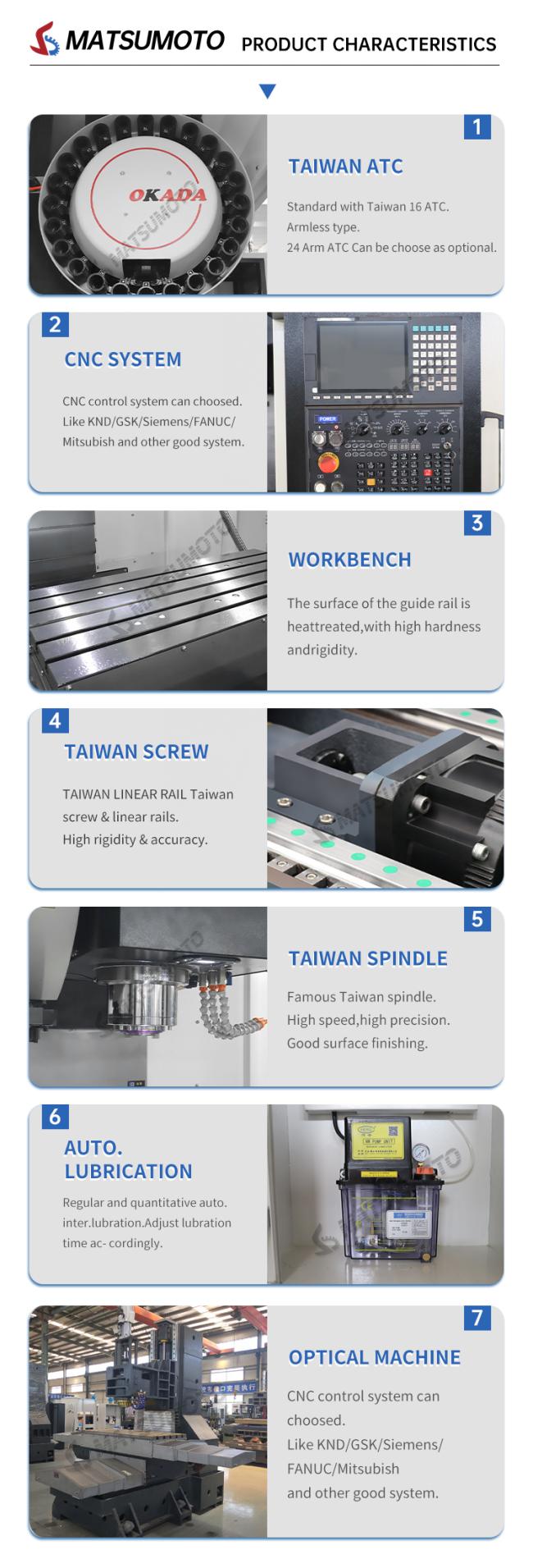

Description:
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing Germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
-
Application:
The base workbench, column, bed saddle, and spindle box are all made of high-quality resin sand and high-strength high-quality cast iron, ensuring that the entire machine has sufficient strength, rigidity, and stability. High rigidity Taiwan spindle, lubricated with grease, can provide constant and reliable lubrication for the spindle bearings.
| Specifications | Unit | VMC855 |
| Table size | mm | 1000*550 |
| Max.table load | kg | 800 |
| T slot | 5-18*90 | |
| X axis travel | mm | 800 |
| Y axis travel | mm | 550 |
| Z axis travel | mm | 550 |
| Distance between spindle center and column surface | mm | 550 |
| Distance between spindle center and column surface | mm | 120-670 |
| Max. spindle speed | r/min | 8000(10000 optional) |
| Spindle taper | / | BT40 |
| Spindle drive type | / | Belt drive |
| spindle motor power | kw | 7.5 |
| X/Y/Z axis rapid traverse | m/min | 36/36/24 |
| X/Y/Z guide rail form | / | 3 axis linear guide rail |
| Automatic tools changer | 24 arm ATC | |
| Max.tool weight | kg | 7 |
| Tools Diameter/Length | mm | 78/300 |
| Tool change time | s | 7/2.5 |
| Position accuracy | mm | ±0.005 |
| Repeat positioning accuracy | mm | ±0.003 |
| Machine dimension | mm | 2750*2300*2600 |
| Machine weight | kg | 5800 |
