XH7126 CNC Metal Milling Machine 3 Axis 800x260mm With 4KW Servo Motor
Price:
$11500-13000
MOQ:
1
Delivery Time:
15 working days
Brand:
Matsumoto
Product Description
XH7126 CNC Milling Machine Metal 3 Axis CNC Milling Machine
Description:
1. High precision linear guide rail and screw.
2. Taiwan-made spindle unit, 6000/8000rpm speed available.
3. Taiwan OKADA funnel type 10t/12t ATC can be choosen.
4. Reliable control system: Fanuc, Mitsubishi, Gsk.
5. Automatic central lubrication system.
| Specification | XH7126 |
| Table size | 800*260mm |
| T-slot(N*W*D) | 3/14/78mm |
| X/Y/Z travel | 550/300/450mm |
| Disntance from spindle surface to worktable | 80-530mm |
| Distance from spindle center to the column | 350mm |
| Rapid feed speed(X/Y/Z) | 20/20/18m/min |
| AC servo motor torque(X/Y/Z) | 6/6/10N.m |
| Main motor | 4KW Servo motor |
| Spindle speed | 8000rpm |
| Spindle taper | BT40-120 |
| Positioning accuracy | 0.01mm |
| Repositioning accuracy | 0.008mm |
| Linear guide rail | XY30 Y35ball |
| Machine weight | 2000kg |
| Overall size | 2200*1900*2200mm(Remove Z-axis motor) |
|
|
Workbench High-frequency quenching for better rigidity |

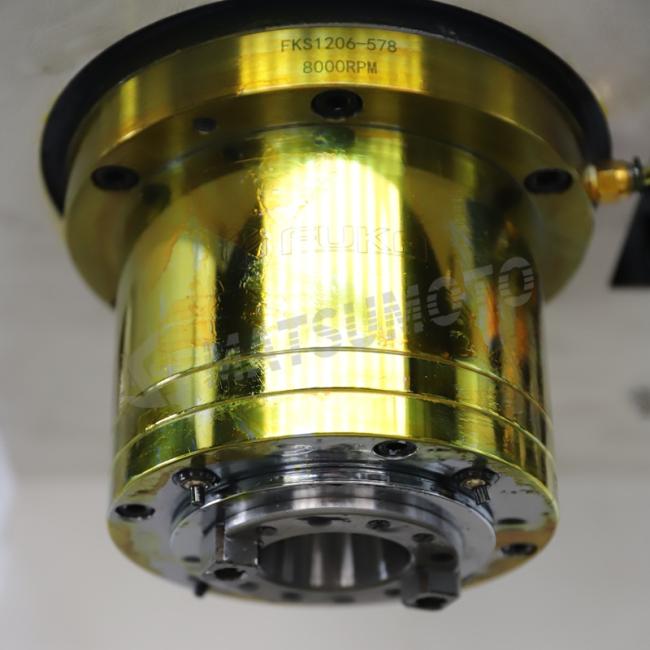

| Spindle Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc. Standard configuration: 8000 rpm Optional configuration: 10000/12000 rpm |
|
|
|

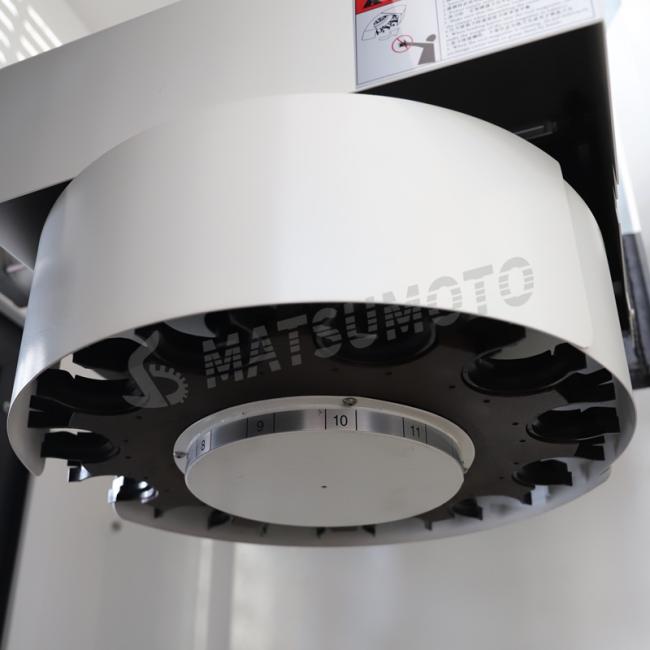

Automatic tool changer Standard configuration: 16-tool hat-type tool magazine Optional configuration: 24-tool arm-type tool magazine |

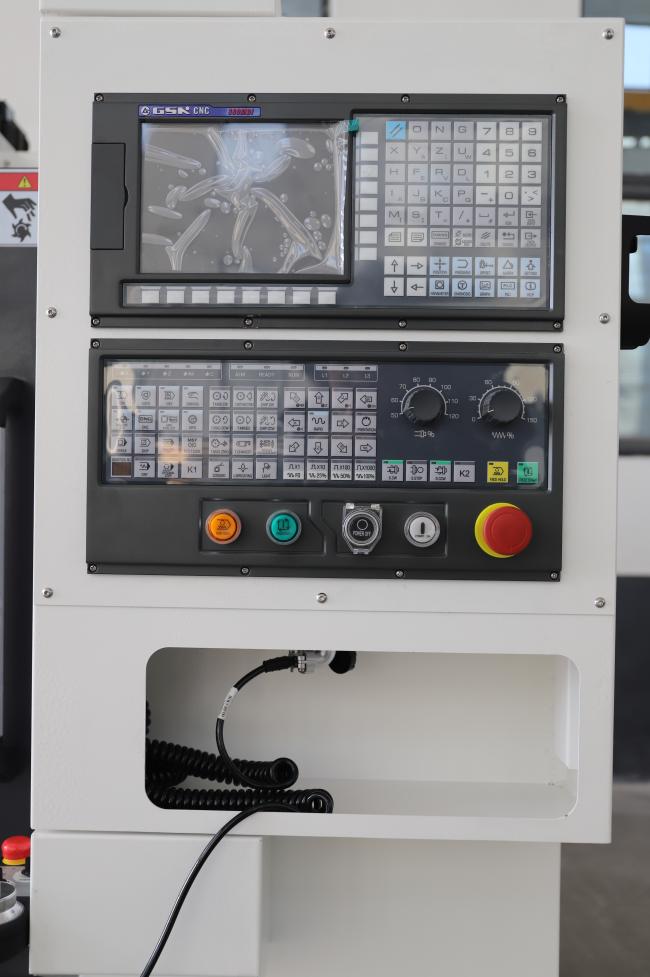

| Control system Standard configuration: GSK Optional configuration: Fanuc/ Syntec/ Mitsubisin |
|
