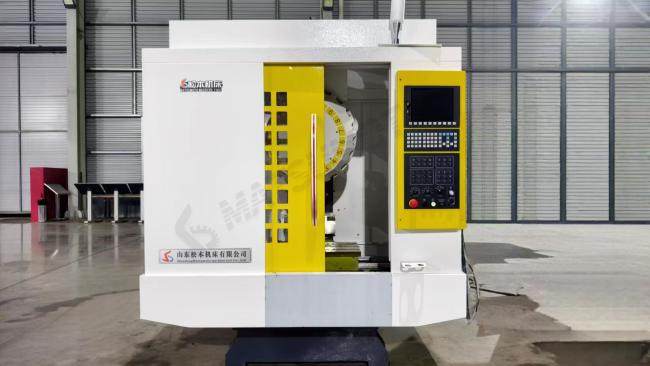

T600 CNC Drilling And Tapping Center Small CNC Machining Center High Precision
Price:
$12500-15000
MOQ:
1
Delivery Time:
20 working days
Brand:
Matsumoto
Product Description
T600 CNC Drilling and Tapping Center Small CNC Machining Center CNC Tapping Machine
Description:
CNC Drilling and Tapping Center is a high-precision, computer numerically controlled machining equipment specifically designed for efficient drilling, tapping, and light milling operations on various workpieces. It integrates advanced CNC systems, high-speed spindles, and multi-axis motion control to achieve automated, accurate, and continuous processing. Typically equipped with a vertical spindle structure, the machine features a rigid bed and a high-speed tool changer (ATC) with a large tool storage capacity, enabling quick tool switching to minimize non-processing time.
The core components include a high-torque, high-speed spindle (usually with a rotational speed ranging from 8,000 to 24,000 rpm or higher), servo-driven feed axes (X, Y, Z axes as standard, with optional fourth or fifth axes for complex parts), and a user-friendly CNC control panel that supports G-code programming and graphical interface operation. It also comes with safety protection devices, automatic lubrication systems, and chip removal mechanisms to ensure stable operation, operator safety, and clean working environments. The machine is widely recognized for its compact structure, which saves floor space compared to traditional machining centers while maintaining high processing performance.
| Model | Unit | T600 |
| X/Y/Z Axis Travel | mm | 600/400/330 |
| Spindle nose to worktable | mm | 145-460 |
| Spindle center to column guide | mm | 445 |
| Worktable size | mm | 700*420 |
| T-slot size(No.-size*spacing) | mm | 3-14*120 |
| Maximum Load Capacity | kg | 150 |
| Maximum Spindle Speed | rpm | 20000 |
| Spindle Motor Power | kw | 5.5-7.5 |
| Spindle Taper | / | BT30 |
| XYZ Axis G00 Rapid Traverse Speed | m/min | 48 |
| XYZ Axis G01 Machining Speed | m/min | 15 |
| Positioning Accuracy | mm | 0.008/300 |
| Repeatability Accuracy | mm | 0.006/300 |
| Machine Dimensions | mm | 2100*1800*2500 |
| water tank dimensions | mm | 800*1900*350 |
| Overall footprint with water tank | mm | 2450*1950*2500 |
| Machine weight | kg | 2500 |
Application:
CNC Drilling and Tapping Centers are widely used in industries that require mass production of small to medium-sized parts with high precision hole-making and threading demands. Key application fields include:
-
Automotive Industry: Processing components such as engine brackets, transmission parts, brake calipers, steering system parts, and electrical connectors. It can efficiently handle the drilling and tapping of multiple holes on auto parts with strict tolerance requirements.
-
Electronic and Electrical Industry: Manufacturing parts for smartphones, computers, home appliances, and industrial control equipment, such as aluminum alloy housings, circuit board brackets, heat sinks, and terminal blocks. The high-speed and high-precision performance meets the miniaturization and precision requirements of electronic components.
-
Aerospace Industry: Processing lightweight alloy parts (aluminum, titanium alloy) for aircraft, such as cabin components, hydraulic system fittings, and sensor housings. It ensures consistent precision for critical parts with complex hole patterns.
-
Hardware and Machinery Manufacturing: Producing hardware tools, fasteners, valve parts, and mechanical accessories. It supports mass production of parts with standard or custom threads and holes.
Advantages:
Compared to traditional manual drilling/tapping machines or general-purpose machining centers, CNC Drilling and Tapping Centers offer significant advantages:
-
High Processing Efficiency: The high-speed spindle and fast tool changer reduce processing cycle time. It can complete drilling, tapping, and light milling in one setup, eliminating the need for multiple machine transfers and improving production throughput, especially suitable for mass production.
-
Superior Precision and Consistency: CNC control eliminates human errors, ensuring uniform processing quality for each workpiece. The high rigidity of the machine body and high-precision servo system enable tight tolerances (usually ±0.005mm or higher) and smooth thread surfaces, reducing defective product rates.
-
Cost-Effectiveness: Compact structure reduces floor space and energy consumption. Automated operation minimizes labor costs, as one operator can manage multiple machines simultaneously. The specialized design for drilling and tapping ensures higher energy efficiency than general machining centers.
-
Flexibility and Versatility: It supports quick programming and parameter adjustment, making it easy to switch between different workpieces and adapt to small-batch, multi-variety production needs. Optional multi-axis systems expand the capability to process complex, irregular parts.
Machine Details:
|
|
Tool magazine
Tool changing speed 1.5s optional 16pcs/21pcs
|
| Spindle
BT30 high-speed direct-connected spindle, spindle speed 20000rpm
|
|
|
|
Ballscrew with servo
Linear Roller Guide Rails
|
|
CNC system Optional GSK, Fanuc, Mitsubishi etc. |
|
