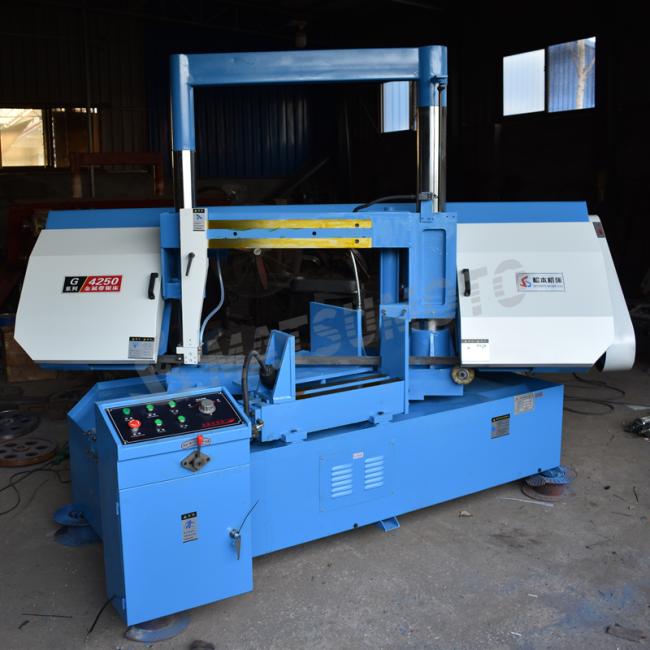

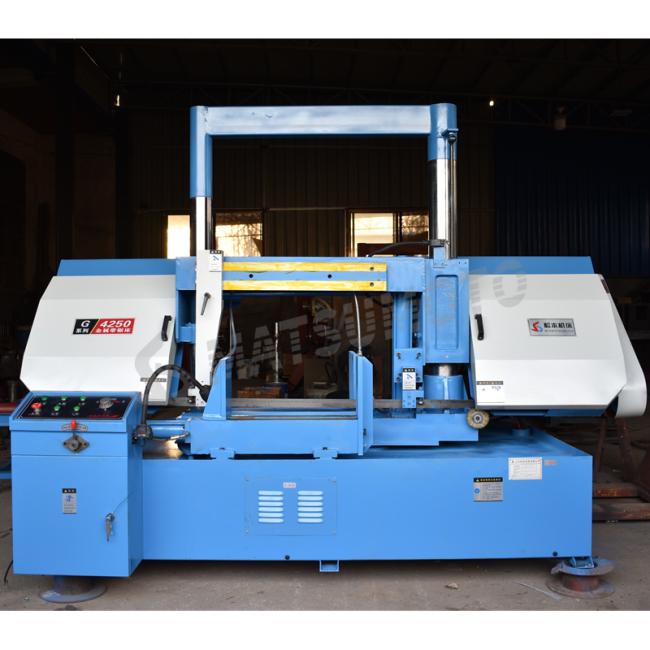

Vertical Lifting Metal Angle Sawing Machine G4250X Double Column Structure
G4250X Metal Angle Band Sawing Machine Durable Angle Sawing Machine
Description:
1. Double column structure, vertical lifting, high stability;
2. According to the user's request, the rotation angle can be set by the user. When the work piece is not moving and the whole machine is rotated, the angle of any angle between 0° and 45° can be completed, and the operation is simple;
3. Cutting speed hydraulic control, step less speed regulation;
4. The work piece is clamped to hydraulic clamping, which is easy to operate;
5. Three-way hydraulic clamping device can be customized.
|
Model
|
G4250X
|
|
Cutting range
|
500-500*500mm
|
|
Saw blade size
|
5800*41*1.3mm
|
|
Blade speed
|
27,45,69m/min
|
|
Clamping type
|
Hydraulic pressure
|
|
Rotate angle
|
0-45°
|
|
Saw belt tensioning mode
|
manual
|
|
Main motor power
|
5.5kw
|
|
Hydraulic motor power
|
0.75kw
|
|
Coolant pump motor power
|
0.125kw
|
|
Overall dimension
|
2800*1300*2000mm
|
|
Weight
|
1800KG
|
-
Details Images:
|
|

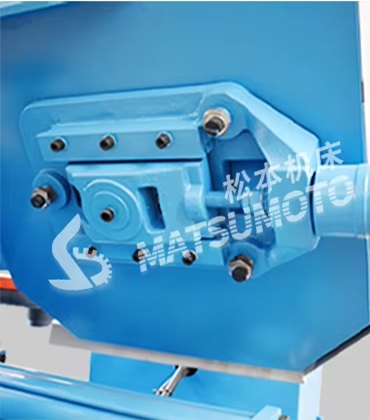

TENSION ADJUSTMENT
The band saw tension can be adjusted according to different working conditions to improve sawing efficiency. |
|
|

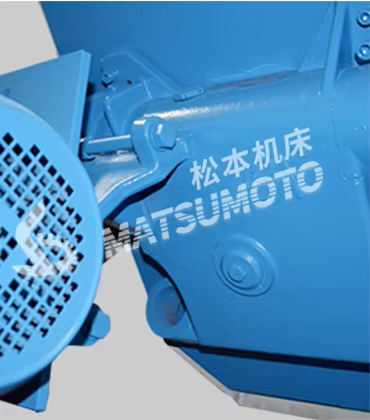

REDUCER
Smooth operation,no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|

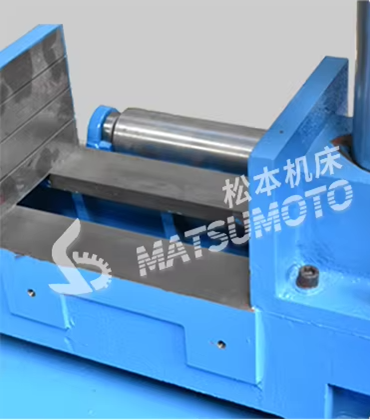

CLAMPING METHOD
The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm. |
|
|

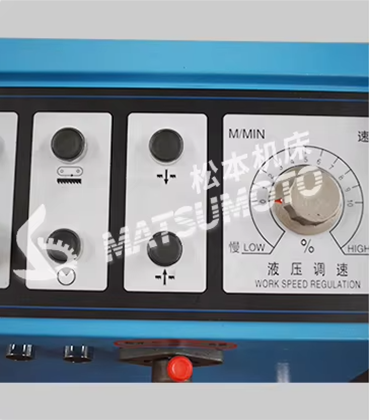

BUTTON+KNOB
Easy to operate, improve processing efficiency and reduce misoperation. |
