GT4230 Double Column Band Sawing Machine PLC Control Metal Cutting Band Saw
GT4230 Double Column Band Sawing Machine Metal Band Sawing Machine
The main performance characteristics:
1. Button type control panel, sawing mode change flexible, manual and automatic combination.
2. PLC controller, complete automatic sawing process, feeding length 0-500 mm.
3. Double upright column structure, vertical lift, high stability.
4. Cutting speed hydraulic control, stepless regulation speed.
5. Stable performance, high efficiency, suitable for bulk material sawing.
-
Application:
For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
The load-bearing gorce of the beam is strengthened, durable and not deformed, and the wheel is durable and balaced, protecting the saw blade. One click automatic sawing, removing complicated operation processes easy to get started.
|
PROJECT |
UNIT |
GT4230 |
GT4235 |
|
Cutting range |
mm |
300*300 |
350*350 |
|
Saw band specification |
mm |
3505*27*0.9 |
4115*34*1.1 |
|
Wire speed of saw band(3 steps) |
m/min |
27/45/69 |
2745/69 |
|
Work clamping method |
/ |
Hydraulic |
Hydraulic |
|
Saw band tension type |
/ |
Manual |
Manual |
|
Spindle motor power |
kw |
3 |
3 |
|
Hydraulic motor power |
kw |
0.55 |
0.75 |
|
Weight |
kg |
900 |
1100 |
|
Dimension(L*W*H) |
mm |
1800*1200*1500 |
2000*2350*1600 |
-
Details Images:
|
|

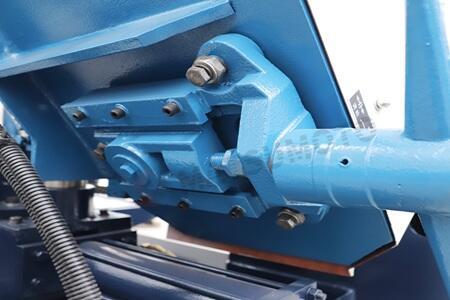

TENSION ADJUSTMENT
The band saw tension can adjusted according to different working conditions to improve sawing efficiency. |
|
|

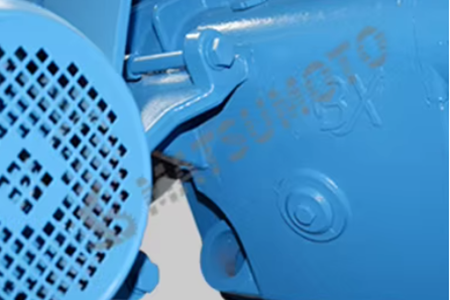

REDUCER
Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|

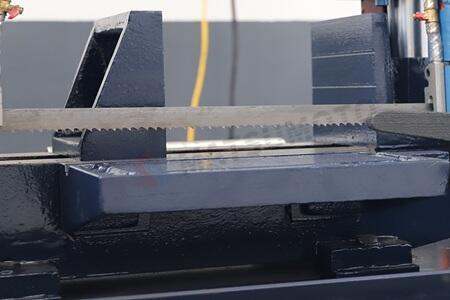

CLAMPING METHOD
The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm. |
|
|

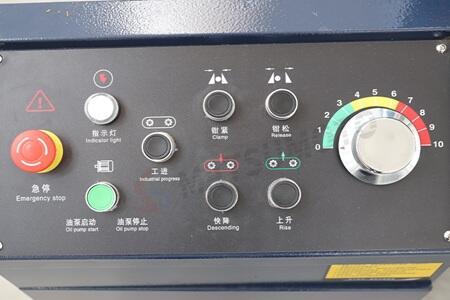

BUTTON+KNOB
Easy to operate, improve processing efficiency and reduce misoperation. |
