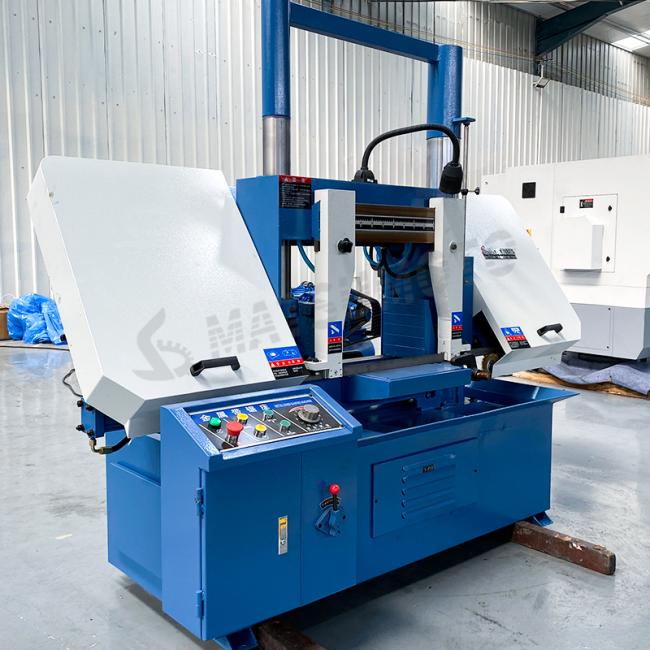

GT4240 Industrial Horizontal Band Saw Gantry Type Bandsaw Machine For Metal
GT4240 Horizontal Band Saw Gantry Type Bandsaw Machine Metal Sawing Machine
-
Product Parameters:
Double-column structure vertical lifting high stability.
The hydraulic pressure controls the speed of saw stepless speed regulation.
The camp of workpieces and hydraulic, control easy.
|
Specifications |
GT4230 |
GT4235 |
GT4240 |
|
Swing range |
300-300*300mm |
350-350*350mm |
400-400*400mm |
|
Blade speed |
27,45,69m/min |
27,45,69m/min |
27,45,69m/min |
|
Blade size |
3505*27*0.9mm |
4115*34*1.1mm |
5000*41*1.3mm |
|
Main motor power |
3kw |
4kw |
5.5kw |
|
Hydraulic motor power |
0.75kw |
0.75kw |
0.75kw |
|
Cooling pump power |
0.09kw |
0.09kw |
0.09kw |
|
Machine weight |
1500kg |
1700kg |
2100kg |
|
Overall dimension |
2000*2450*1650mm |
2250*2450*1650mm |
2460*2320*2000mm |
|
Standard equipment |
Optional equipment |
|
Saw blade belt Hydraulic workpiece clamping Bundle vise Material support stand Coolant system Work lamp Operation manual |
Automatic blade breakage control Fast drop protection devise Hydraulic blade tension Automatic chip removal device Various blade linear speed Blade protection convers Wheel cover opening protection CE standard electrical equipment |
-
Details Images:
|
|

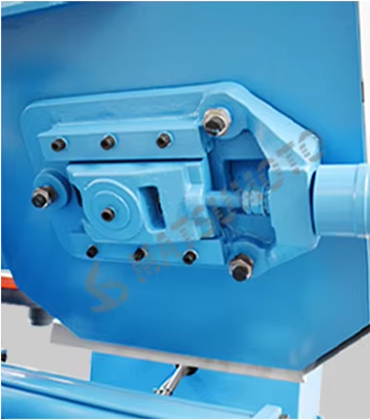

TENSION ADJUSTMENT
The band saw tension can be adjusted according to different working conditions to improve sawing efficiency. |
|
|
REDUCER
Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|
CLAMPING METHOD
The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm. |
|
|

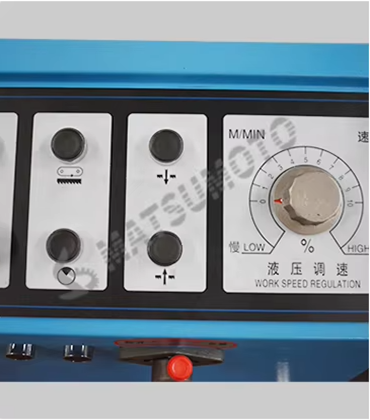

BUTTON+KNOB
Easy to operate, improve processing efficiency and reduce misoperation. |
