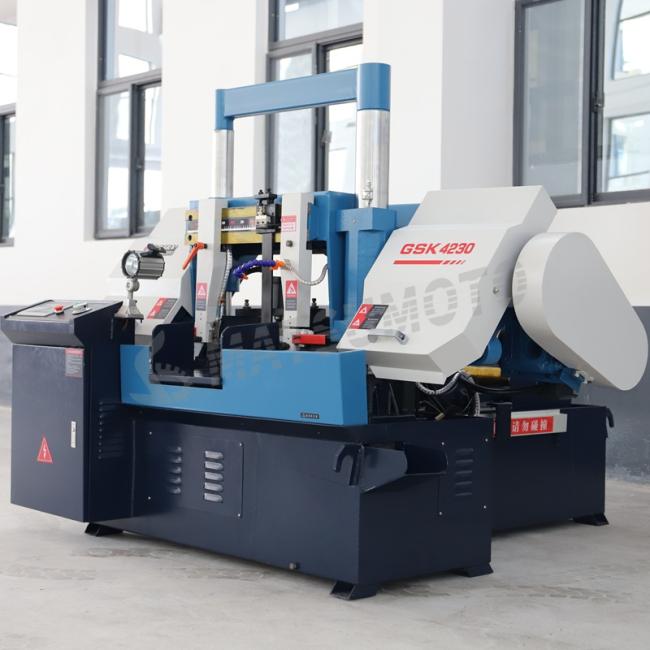

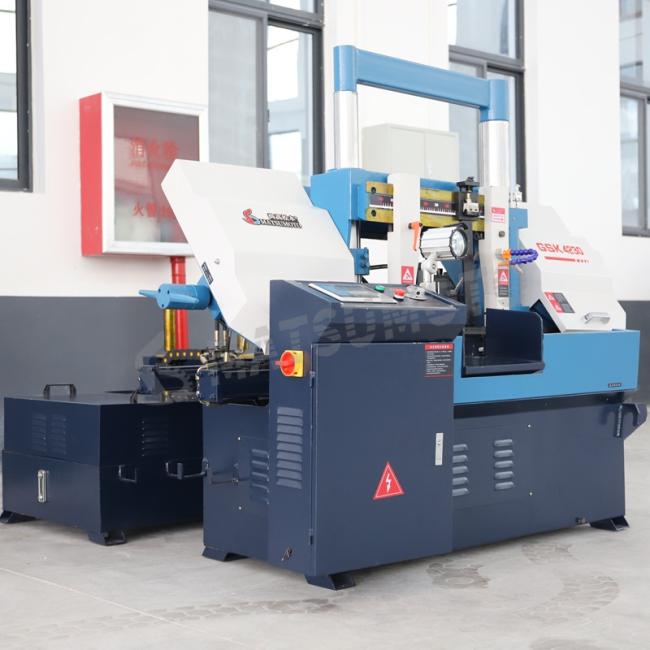

GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
GSK4230 CNC Band Sawing Machine Metal Band Sawing Machine
Description
Application
- Cutting carbon steel, stainless steel, alloy steel, copper, aluminum and other metal bars, pipes and profiles Metal processing, machinery manufacturing, auto parts, hardware tools, mold manufacturing
- Steel service centers, metal material distributors, cutting workshops Mass production lines requiring fixed-length, high-efficiency and high-precision sawing
|
PROJECT |
UNIT |
GSK4230 |
|
Cutting range |
mm |
300*300 |
|
Saw band specification |
mm |
3800*27*0.9 |
|
Wire speed of saw band(3 steps) |
m/min |
27/45/69 |
|
Single feeding length |
mm |
500 |
|
Single feeding accuracy |
mm |
0.1 |
|
Saw band tension type |
/ |
Manual/Hydraulic |
|
Hydraulic motor power |
kw |
0.75 |
|
Saw band main motor |
kw |
3.0 |
|
Cooling pump power |
kw |
0.12 |
|
Main drive mode |
/ |
Hydraulic+Grating ruler |
|
Dimension(L*W*H) |
mm |
2300*2000*1550 |
-
Details Images
|
|

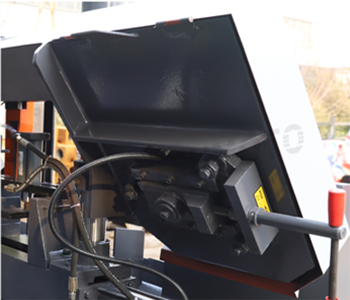

TENSION ADJUSTMENT The band saw tension can be adjusted according to different working conditions to improve sawing efficiency. |
|
|

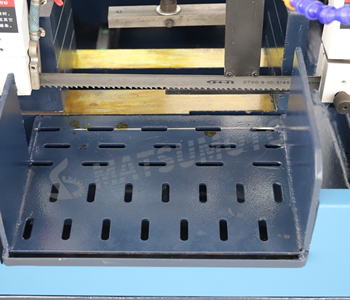

CLAMPING METHOD Hydraulic clamping, jaws made of high-density ductile iron, clamping firmly. |
|
|

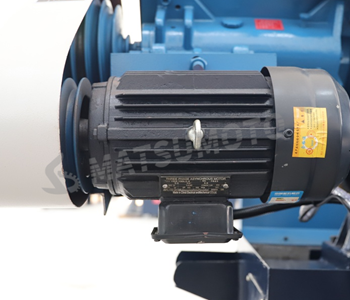

REDUCER Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|

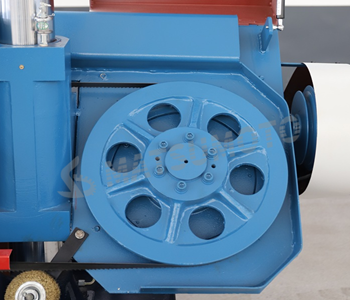

LARGE ROULETTE Enlarging the roulette, improving the stability and reducing the wear of the saw blade. |
|
|

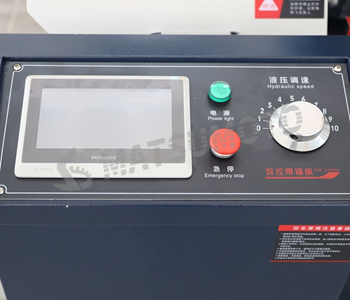

PLC CONTROL PLC controller for automatic cutting. |
|
|

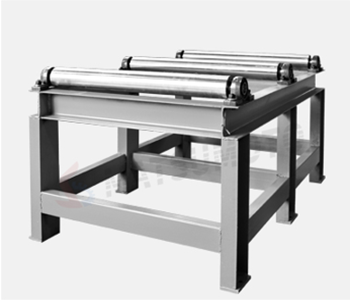

FEEDING RACK(OPTIONAL) One-button key control automatic feeding, saving labor and improving efficiency. |
