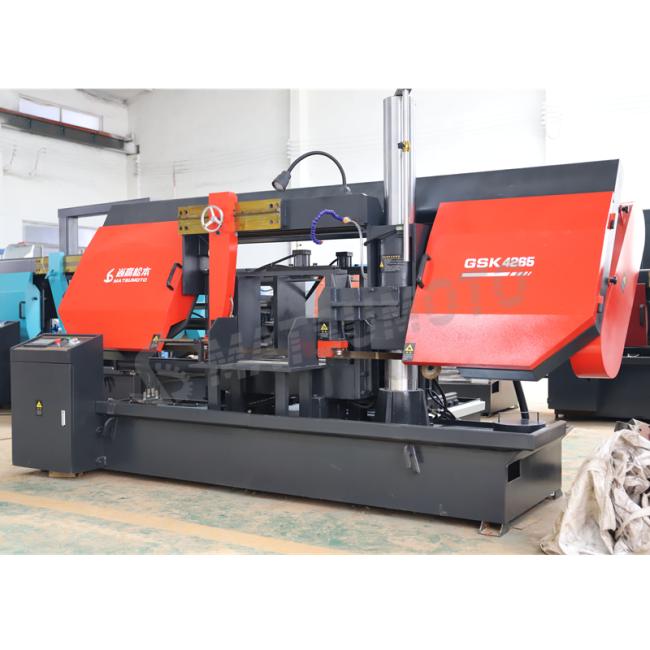

CNC Control Horizontal Band Saw Machine High Accuracy Automated GSK4265
GSK4265 CNC Band Sawing Machine Precision Horizontal Sawing Machine
-
Description
The CNC Band Sawing Machine is a high-precision, automated metal cutting equipment integrated with computer numerical control (CNC) technology, servo drive system, and precision mechanical structure. Adopting a high-performance CNC control system, it realizes full-process automatic control of feeding, positioning, clamping, sawing, and material returning, which effectively eliminates human errors caused by manual operation and ensures consistent cutting accuracy. Equipped with a high-strength, wear-resistant band saw blade and a stable guide mechanism, the machine is capable of performing high-efficiency, high-precision cutting on various metal workpieces, including bars, pipes, profiles, and irregular parts. Its programmable parameter setting function supports flexible adjustment of cutting speed, feed rate, and cutting length, adapting to standardized, unmanned, and continuous production needs in modern metal processing, while optimizing material utilization and cutting quality.
|
Specification |
GSK4265 |
|
Maximum sawing range |
650-650*650mm |
|
Saw band line speed |
27-69m/min |
|
Band saw blade specifications |
customize |
|
Feed rate |
Hydraulic stepless speed regulation |
|
Main motor power |
7.5kw |
|
Hydraulic motor power |
1.5kw |
|
Cooling the motor power |
0.125kw |
|
Single feeding stroke |
500mm |
|
Feeding accuracy |
≤0.2mm |
|
Main drive mode |
Worm gear reducer |
|
Clamping method |
Hydraulic double jaw clamping |
|
Band tensioning method |
Hydraulic tensioning |
|
Sawdust clean-up method |
Wire brushed |
|
Dimensions of the main machine |
3600*3510*2450mm |
Advantages
-
CNC control system ensures high cutting precision and stable dimensional accuracy
-
High automation reduces manual operation and improves production efficiency
-
Stable sawing performance, low material loss and high cutting quality
-
Simple operation, programmable and compatible with various cutting requirements
-
Strong durability, low failure rate and suitable for long-term continuous work
-
Details Images
|
|
TENSION ADJUSTMENT
The band saw tension can be adjusted according to different working conditions to improve sawing efficiency. |
|
|
REDUCER
Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|
CLAMPING METHOD
The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm. |
|
|
DELTA PLC OPERATION
Taiwan delta operating system, east touch operation, high efficiency, full automatic feeding. |
