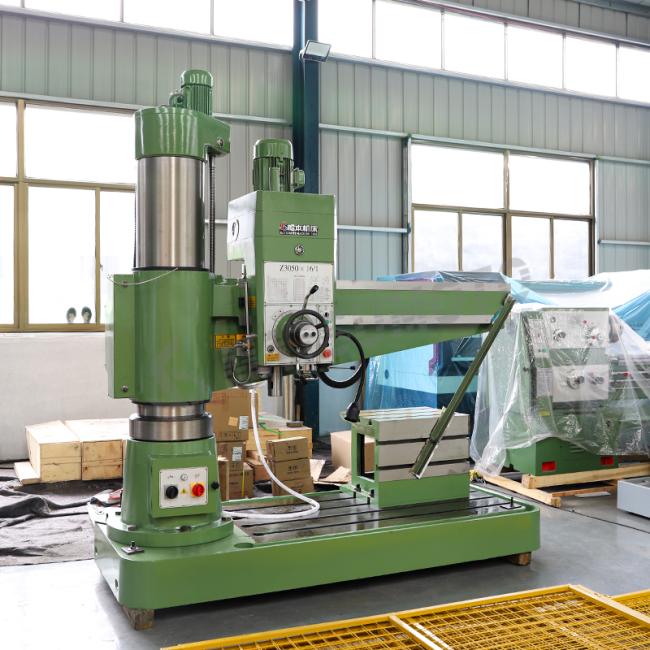

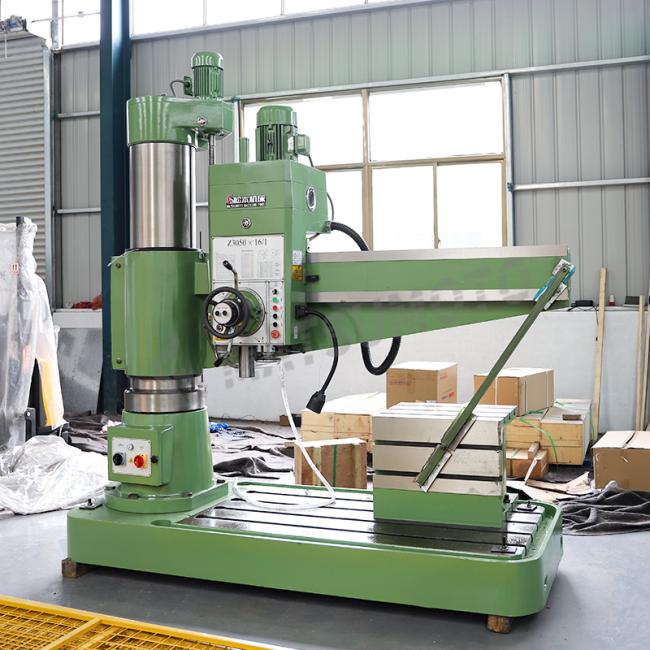

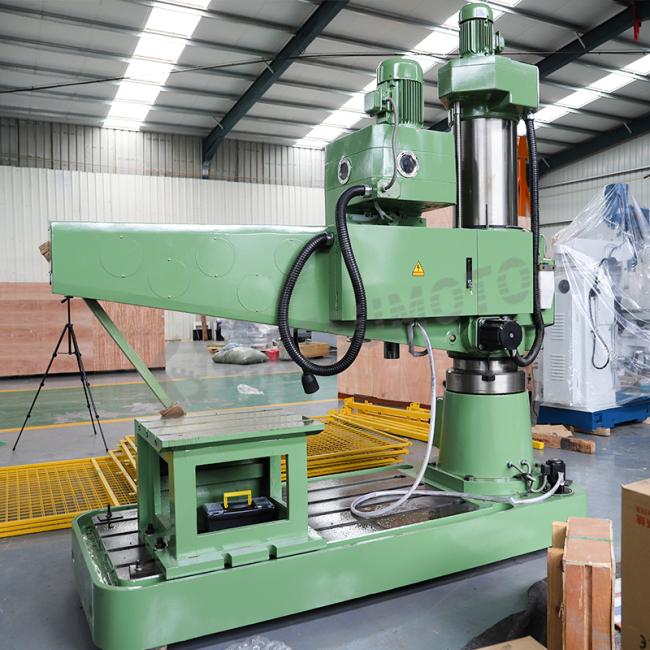

Z3050-16 Heavy Duty Radial Drilling Machine Hydraulic Double Column For Small Parts
Z3050-16 Heavy Duty Radial Drilling Machine High Quality Radial Drilling Machine
Description:
Z3050*16 Hydraulic radial drilling machine is a double column, all hydraulic radial drilling machine. With widely use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.
The main performance characteristics:
1 . Counter balanced spindle
2 . Pressurized lubrication system
3 . Hydraulic clamping with push button controls
4 . Hydraulic preselected shifting of feeds and speeds
4 . Hardended and precision ground ways
5 . Hardened and ground gears and shafts
6 . Heavily ribbed cast iron base and arm
| Model | Z3050-16 |
| Maximum drilling capacity | 50mm |
| Distance from spindle axis to column(min/max) | 350-1600mm |
| Column diameter | 350mm |
| Spindle taper | MT5 |
| Spindle travel | 315mm |
| Spindle speeds(range) | 25-2000 |
| Spindle speeds(number) | 16 |
| Spindle feeds(range) | 0.04-3.2r/min |
| Spindle feeds(number) | 16 |
| Distance between spindle&working surface of base(min/max) | 320-1220mm |
| Worktable dimensions | 630*500*500mm |
| Base dimensions | 2400*1000*200mm |
| Overall dimensions | 2500*1060*2650mm |
| Spindle motors | 5.5HP |
| G.W/N.W | 3600/3500kgs |
| Packing dimensions | 270*112*255cm |
Details Images:
 |

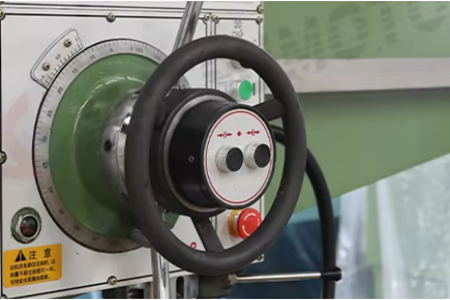

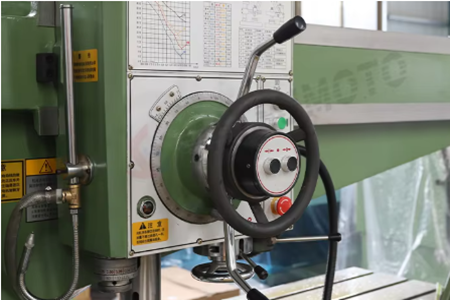

MECHANICAL SHIFT
Concentrated mechanical speed change. Spindle taper MT4 convenient and quick. |
 |

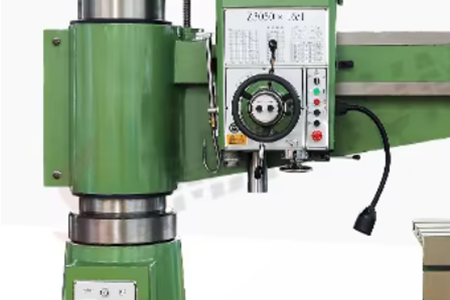

HEADSTOCK
High precision and high efficiency ensure the stable and reliable quality of the machine tool. |
 |
RADIAL ARM CLAMPING
Radial arm mechanical clamping. High stability. |
 |
COLUMN CLAMPING
Vertical column mechanical clamping. High stability and stronger. |
 |

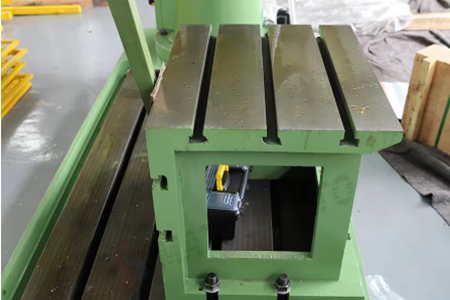

CAST IRON WORKTABLE
The cast iron worktable has been treated with aging to make it strong, stable and durable. |
