Intelligent WIFI Dust Particle Counter RJ45 4G Dust Size Analyzer PM2.5 PM5 PM10 Air Quality Monitor

Name: Intelligent WIFI Dust Particle Counter RJ45 4G Dust Size Analyzer PM2.5 PM5 PM10 Air Quality Monitor
Brand: SHENZHEN TOPRIE ELECTRONICS CO.,LTD.

Price Negotiable

Price: USD 1000.00~USD 1100.00 per piece

MOQ: 1 piece

Delivery Time: 5-8 work days

Brand: TOPRIE

Product Description

High Quality Intelligent WIFI 2.83L Dust Particle Counter

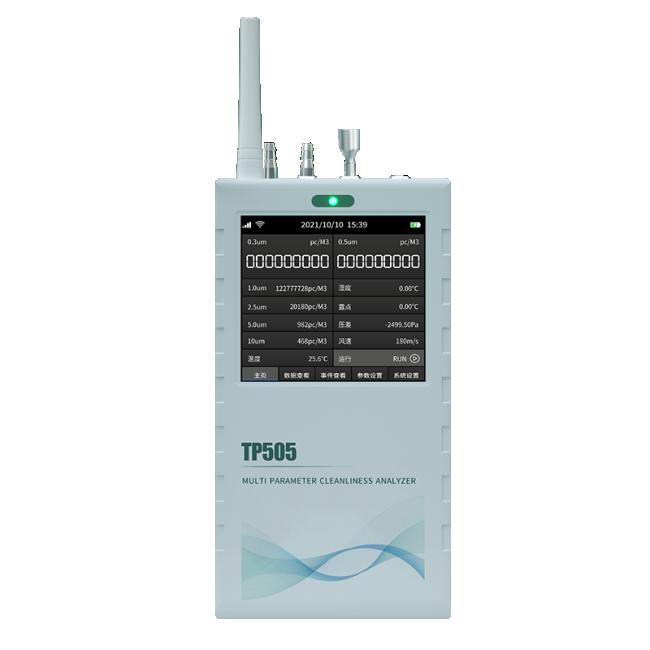

TP505 dust particle counter is the industry's first dual-function instrument that combines online and handheld operation. It integrates 6 measurable parameters (dust particles, temperature, humidity, differential pressure, dew point temperature, wind speed) and 11 digital displays into one device.

Product Specifications

Parameter Item	Details
Charging Port Versatility	Charging Voltage: DC5V Charging Current: 1.5A Charging Interface: TYPE-C
External Sensor Interface	Temperature and Humidity: 4-pin aviation connector Interface Type: I2C Temperature Range: -20-60°C (Accuracy: ±0.5°C for 0-50°C, ±0.5°C otherwise) Humidity Range: 0-100%RH (Accuracy: ±2%RH for 20%-80%, ±3%RH otherwise) Supply Voltage: DC3.3V Dew Point (Optional): 5-pin aviation connector Interface Type: TTL Brand Options: 1. Vaisala DMT143: Temperature Range: -70-60°C, Accuracy: ±2°C 2. Rotronic HC2-SDP: Range: 40-20°C, Accuracy: ±2°C Supply Voltage: DC3.3V (12V optional) Wind Speed/Noise/Other Gas Sensors (Optional): 5-pin aviation connector Interface Type: RS485 Supply Voltage: DC3.3V (12V optional)
Data Transmission Mode	Wireless Communication: 2G, 4G, WIFI (choose one) + ZGBEE/THREAD Wired Communication: RJ45
Particle Detection Parameters	Particulate Matter Detection Range: 0.3-10μm (0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm) Flow Rate: 2.83L/min ±5% Error: ≤±30% Resolution: 1mg/m³ Particle Range: 200,000 particles/L
Pressure Sensor Measurement Parameters	Pressure Range: -500 to +500 Pa Interface: 1/4-inch international pagoda-type interface Error Range: 1% Accuracy: ±5Pa
Detection Period	1-60 MIN (Adjustable)
Hardware Performance	Environmentally Friendly Flame-Retardant Plastic Housing Customizable Color, Default: Grey USB TYPE-C Interface for Charging, Debugging and Upgrading Power On/Off Indicator Light Capacitive Touch Screen Display: 480×480 Color LCD Screen Storage: 8G Capacity Drawer-Type SIM Card Slot SMA Internal Thread Male Pin Female Seat Antenna Connector Standby Current: 200mA Current When Particle Detection is Activated: 550mA Weight: 800g Dimensions: 215×114×48mm Operating Environment: -10°C~60°C, 0%-95%RH Storage Environment: -20°C-65°C, 30%-80%RH
Software Performance	4G, LAN Network Connection Platform WIFI Local LAN Server Supports Data Upload via THREAD, ZIGBEE, LORA Wireless LAN Large-Capacity Historical Storage 8GB Built-in Storage Supports USB Data Query (TP Assistant) Supports Historical Data Query on Screen 4G and Network Cable Interfaces Support MODBUS RTU Protocol for Cloud Platform Connection Network Port Supports MODBUS TCP Server Function Network Port Supports MODBUS RTU Server Connection Wireless LAN Active Reporting Protocol Uses MODBUS Protocol for Active Reporting

Note: All specifications are subject to change without prior notice. Items marked as "Optional" may require additional configuration or cost.

Application Areas

Food Enterprises Research Institutions Laboratories Operating Rooms Factory Workshops New Energy Lithium Battery Industry Pharmaceutical Workshops Semiconductors Environmental Protection Inspection Institutes Microbiology Optics Precision Machinery Processing
