Industrial Smart Water Temperature Sensor Measuring Device
China Supplier Digital Temperature Gauge 4G LoRaWAN Temperature Sensor Logger Smart Wireless Temperature Transmitter

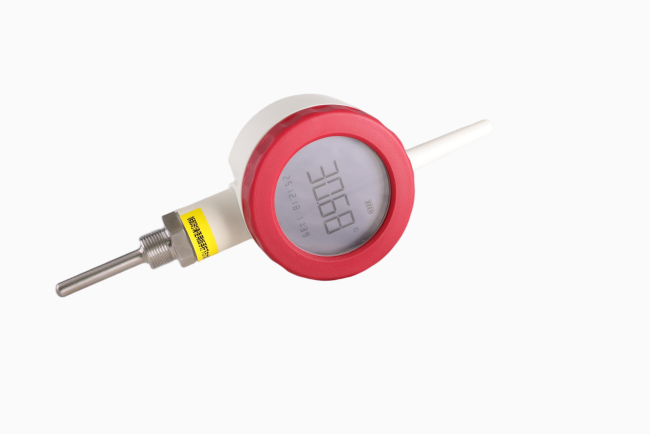

TP2402 wireless thermometer is equipped with 4G WIFI network to realize stable connection with the monitoring platform. It allows convenient parameter configuration via USB port and secure data export in PDF and CSV formats for traceability. The device supports automatic over-limit alarm (instant upload once parameters exceed the set range) and manual sensor value calibration to ensure data accuracy.
| Range | -200℃~200℃ |
| Accuracy | 0.5%F.S |
| Battery Capacity | 19000mAh non rechargeable lithium battery |
| Protection Level | IP66 |
| Display | TFT |
| Power Consumption | Standby current ≤80uA, average data transmission current ≤150mA1 |
| Communication | 4G,WiFi,LoRaWAN,LoRa,NB-IoT |
| Antenna | External |
| Installation | Vertical,Horizontal |
| Sampling Interval Time | 10 sec~2550 sec |
| Uploaded Interval Time | 1 Min~1440Mins, the shorter of Uploaded time you setup, the shorter lifetime of battery |
| Configuration | USB C,Bluetooth |
| Wake-up Mode | Button,timing |
| Uploaded Data Information | Temperature, Battery Level, Signal, SIM card |
| Material | Housing part Aluminum alloy, Sensor part: SS304 |
| Process connection | NPT1/2,M20*1.5,BSP1/2 ect.. |
Advantage
Wireless stable connection, cloud data sync
USB local config & export, easy operation
PDF/CSV dual formats, easy data traceability
Instant over-limit upload, timely alarm
Sensor value calibration, sustained accuracy
Wireless flexible deployment, multi-scenario fit
Application
- Chemical
- Food and beverage
- Energy
- Air conditioning
- Metal plating
- Mining
- Oil and Gas
- Petrochemical
- Waste and water management
