Large Span Steel Frame Greenhouse for Agricultural Seedlings Column-Free Design
Price:
$40-200
MOQ:
100 PCS
Delivery Time:
5-15 days
Brand:
Shunyao Supply Chain
Product Description

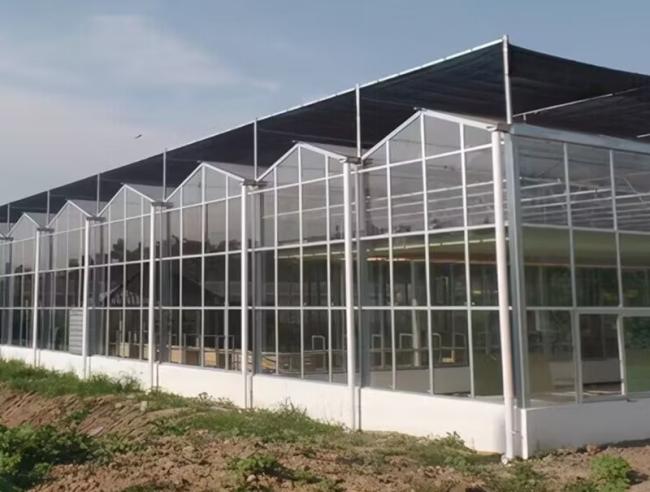

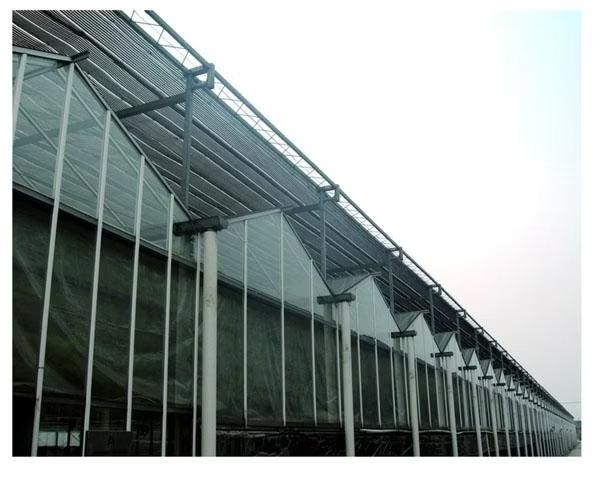

Large Span Steel Frame Greenhouse for Agricultural Seedling Production
Introduction
Optimize your agricultural production with our Large Span Steel Frame Greenhouses, specifically engineered for professional seedling nurseries and high-yield cultivation. Unlike traditional structures, our steel frame building system utilizes a column-free design (up to 30m span), providing maximum interior space for automated sprinkler systems and rolling benches. Built to withstand high humidity, every component of the steel frame undergoes a rigorous hot-dip galvanization process, ensuring superior rust resistance and a lifespan of over 20 years in moist agricultural environments.
Key Features
- Robust Steel Frame Structure: Fabricated from high-quality Q235/Q355 carbon steel with industrial-grade galvanization (275g/m² zinc coating), preventing corrosion from humidity and fertilizers.
- Maximized Light Transmission: The scientifically designed steel frame minimizes shadow areas, ensuring seedlings receive uniform sunlight for consistent growth.
- Column-Free Efficiency: The large clear span design eliminates internal obstacles, allowing for the unrestricted movement of tractors, AGVs, and boom irrigation systems.
- Customizable Environmental Control: The sturdy steel frame easily supports heavy equipment like cooling pads, exhaust fans, and automated shading screens.
| Parameter | Specification |
|---|---|
| Structure Type | Prefabricated Steel Frame (Truss or Arch style) |
| Main Material | Hot-dip Galvanized Steel Pipe / H-Beam |
| Steel Grade | Q235B / Q355B (Standard Structural Steel) |
| Span Width | 9.6m / 10.8m / 12m / 16m (Multi-span available) |
| Column Spacing | 4m / 8m (Customizable based on load) |
| Wind Load | ≥ 0.50 KN/m² (Up to 120 km/h) |
| Snow Load | ≥ 0.35 KN/m² |
| Service Life | Steel Frame: 20+ Years |
| Component | Material / Process | Key Benefit |
|---|---|---|
| Steel Frame Coating | Hot-dip Galvanizing (Inside & Outside) | Zinc layer thickness ≥ 60µm; No rust in high humidity. |
| Roof Covering | 150/200 micron PO Film or Glass | Anti-drip, Anti-fog, High light transmission (>90%). |
| Connectors | Galvanized Bolts & Aluminum Profiles | High strength connection without welding points (prevents rust). |

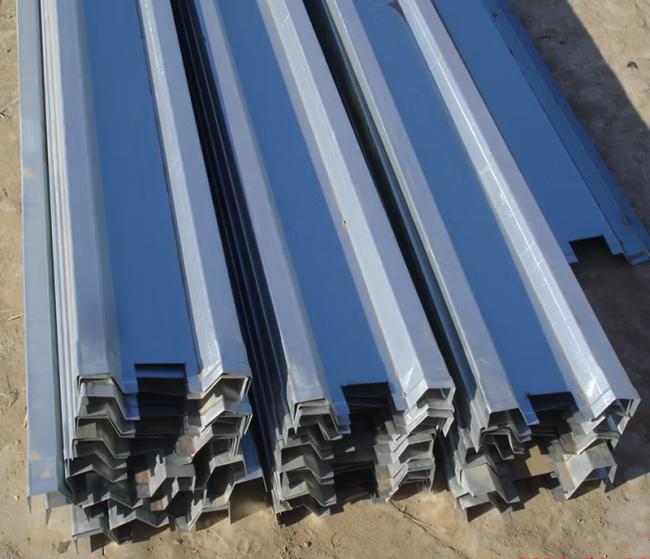

| Gutter System | Galvanized Steel Plate (2.0mm) | Large capacity for efficient rainwater drainage. |
| System Name | Function | Supported by Steel Frame? |
|---|---|---|
| Internal Shading | Controls light intensity for delicate seedlings | Yes (Hanging load supported) |
| Cooling System | Wet pad & fan system for temperature control | Yes (Frame reinforced for fans) |
| Irrigation | Boom sprinkler / Mist system | Yes (Suspended from truss) |
| Seedling Bench | Rolling bench / Ebb and flow table | Compatible (Floor space optimized) |
