3 Phase Lightning Protection Box 220V 100kA Sound / Light Alarm Surge Suppressor
Lightning protection box
Featuring high current capacity (up to 100kA impulse current) and low residual voltage, M-LBS 5000 adopts pluggable lightning protection modules for easy maintenance and replacement.
The built-in lightning status monitoring (counting) system accurately records lightning strikes, while the sound and light alarm function provides real-time alerts for SPD failures.
Wide-Range Application Scenarios
M-LBS 5000 is a high-performance three-phase AC power lightning protection box designed for LPZ 0B-1 and subsequent partitions.
It is specifically installed in equipment-intensive rooms such as communication base stations, broadcasting and television system rooms, computer rooms,
and medical equipment rooms to provide comprehensive lightning protection for three-phase AC distribution systems.
Product Features
 |

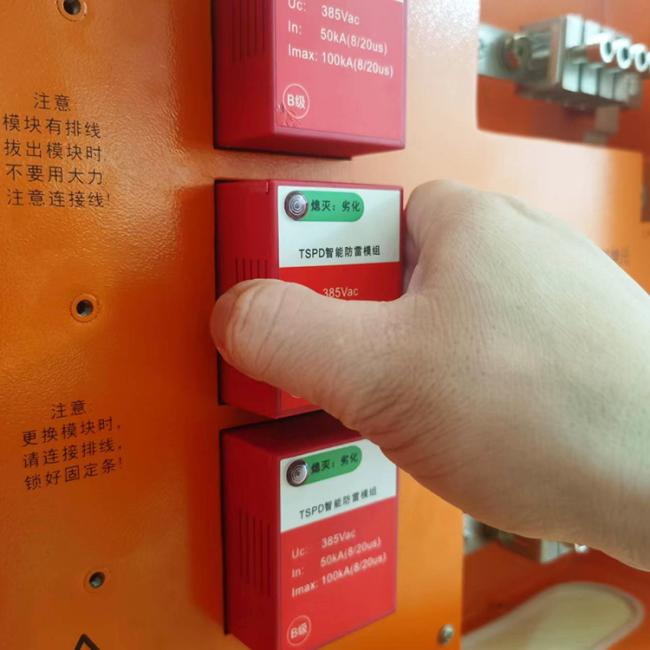

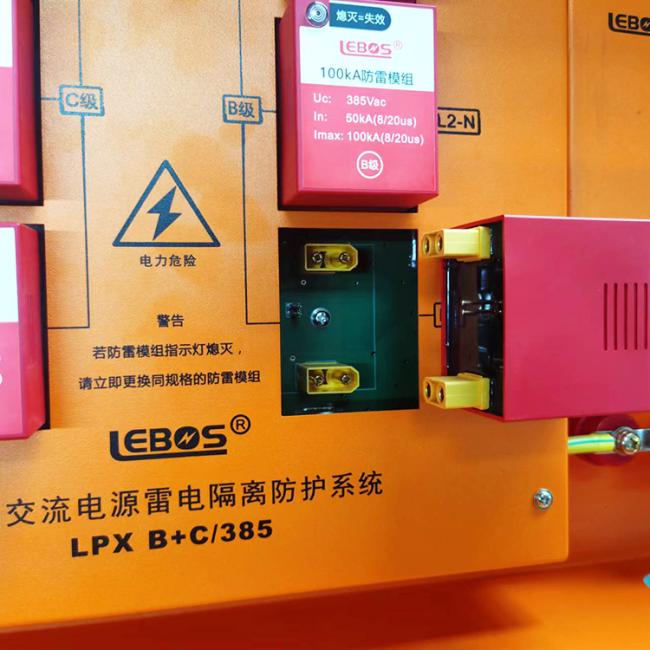

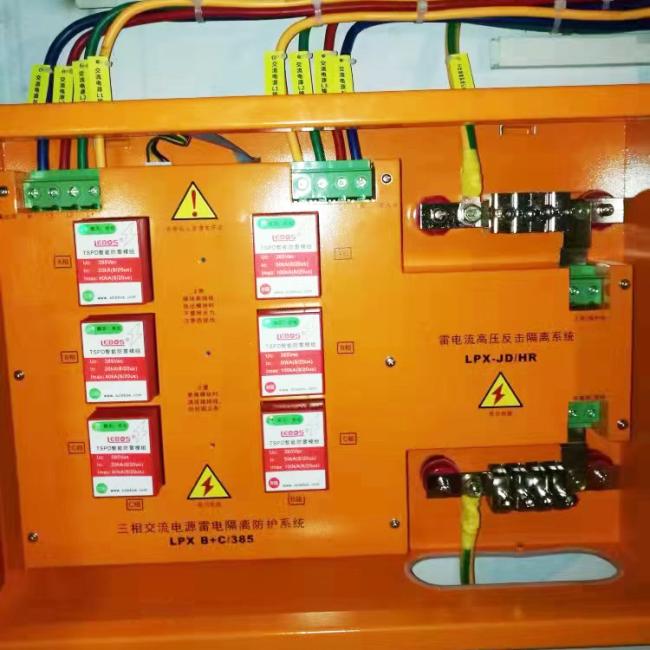

Pluggable Lightning Protection Modules |
|
Modular Layered Protection |
 |
 |
Intelligent Monitoring & Alarm System Built-in lightning strike counter and visual status indicators for real-time fault alerts. |

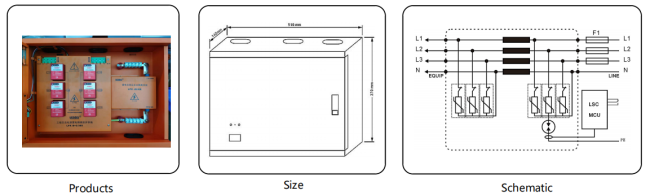

Product Specification
|
Standards
|
IEC 61643.11
|
||
|
Models
|
M-LBS 5000
|
||
|
Parameter
|
|||
|
Nominal operating voltage Un
|
220Vac(50Hz)
|
||
|
Maximum continuous operating voltage Uc
|
L-N:385Vac(50Hz),N-E:255Vac(50Hz)
|
||
|
Power W
|
30KW,45A(Line)
|
||
|
L-N Impulse current(8/20μs)
|
20kA
|
50kA
|
100kA
|
|
Voltage protection level Up
|
≤1000V
|
≤1150V
|
≤1250V
|
|
Response time tA
|
≤25ns
|
||
|
Protection Circuit
|
L1,L2,L3-N,N-E
|
||
|
Auxiliary functions
|
Number of lightning strikes, sound and light alarms, remote
signaling dry contacts
|
||
|
Lightning stroke count
|
|||
|
Counting current range
|
0.5A(8/20μs)-100kA(8/20μs)
|
||
|
Counting digit
|
0-999
|
||
|
Installation method
|
Auxiliary installation bracket; Hole spacing 330mmx263mm
|
|
Screw torque
|
5N*m
|
|
Strip length
|
12mm
|
|
Wiring cross-sectional area
|
6mm2-32mm2
|
|
Product size
|
510mmx370mmx140mm
|
|
Shell material and flame retardant grade
|
Cold rolled steel plate painted orange
|
|
Deterioration indication
|
LED green: OK; Red: Fail; SPD failure buzzer alarm
|
|
Remote signaling contact type
|
Normally closed and normally open switching contacts
|
|
Remote signaling contact switching ability
|
125 Vac / 1 A, 125 Vdc A / 0.2
|
|
Maximum connection capacity of remote signaling
|
2.5mm2
|
|
Installation position
|
Indoor
|
|
Temperature range
|
-40℃…+80℃
|
|
Humidity range
|
Relative humidity ≤ 95% (max 40 ℃)
|
Notices
●Install the lightning protection box in a well-ventilated, dry indoor environment away from flammable and explosive materials.
●Use wiring with cross-sectional area 6mm²-32mm² and tighten screws to 5N·m torque.
●Ensure the grounding system meets requirements (ground resistance ≤4Ω) for optimal surge diversion.
●Regularly check the lightning strike count and status indicator—replace faulty modules immediately.
●The product is heavy; ensure the installation surface can bear its weight (product size: 510mmx370mmx140mm).
●Only qualified electricians are allowed to install, maintain, or replace modules to avoid electrical hazards.
FAQ
Q1: What is the maximum impulse current capacity of M-LBS 5000?
A1: It supports three impulse current levels: 20kA, 50kA, and 100kA (8/20μs waveform) to meet different protection requirements.
Q2: Does the product have a lightning strike counting function?
A2: Yes, it has a built-in lightning strike counting system with a counting range of 0.5A-100kA and counting digit of 0-999.
Q3: What is the alarm method for SPD failure?
A3: It adopts dual alarm methods: LED red indicator and buzzer alarm, and supports remote signaling through dry contacts.
Q4: Can the modules be replaced without power outage?
A4: The pluggable module design allows for hot-swapping, enabling module replacement without disconnecting the entire power supply.
Q5: What is the power capacity of M-LBS 5000?
A5: It has a power capacity of 30KW and a line current of 45A, suitable for large-scale three-phase power systems.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
