Wall Mount Lightning Arrester Box 220V 40kA 80kA IP20 Electrical System Protection
LPX Series (40B-385/50B-385/80B-385/100B-385) is a customizable power surge protection box designed for various power systems.Equipped with a lightning counter, it accurately records lightning strikes for maintenance reference.
The product offers free combination of open circuit breakers, SCB releases, and terminals, providing flexible configuration options. It features lightning protection indication, power supply working indication, and SPD failure indication, making maintenance intuitive and efficient.
Product Features |
||
 |
 |
 |

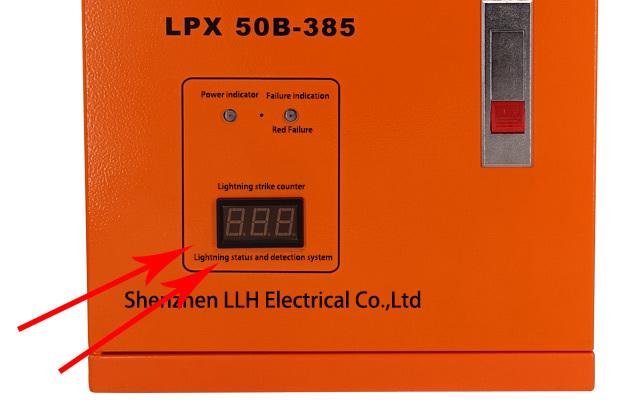

| Intelligent Protection & Monitoring Built-in lightning counter and visual status indicators for accurate strike recording and real-time fault alerts. |
Flexible & Safe Design Integrates circuit breaker, SCB surge protector, and modular lightning arrester modules for adaptable protection across power systems. |
Durable Industrial Build Cold-rolled steel enclosure with flame-retardant coating for long-term, reliable indoor operation. |
Product Specification
|
Standards
|
IEC 61643.11
|
|||
|
SPD type
|
T2
|
|||
|
Models
|
LPX 40B-385
|
LPX 50B-385
|
LPX 80B-385
|
LPX 100B-385
|
|
Parameter
|
||||
|
Nominal operating voltage Un
|
220Vac(50Hz)
|
|||
|
Maximum continuous operating voltage Uc
|
385Vac(50Hz)
|
|||
|
Nominal discharge current (8/20μs)In
|
40kA
|
50kA
|
80kA
|
100kA
|
|
Maximum discharge current (8/20μs) Imax
|
80kA |
100kA
|
160kA
|
200kA
|
|
Voltage protection level In@Up
|
≤2.0kV
|
≤2.0kV
|
≤2.2kV
|
≤2.5kV
|
|
Backup protector and terminal
|
Circuit Breaker, SCB release, terminal optional
|
|||
|
Protection mode
|
2+1,4+0,3+1,1+1Optional
|
|||
|
Lightning stroke count
|
||||
|
Counting current range
|
0.5kA(8/20μs)-200kA(8/20μs)
|
|||
|
Counting digit
|
0-999
|
|||
|
Installation method
|
Two wall-hanging holes; horizontal hole distance 294mm
|
|
Screw torque
|
5N*m
|
|
Strip length
|
12mm
|
|
Wiring cross-sectional area
|
6mm²-25mm²
|
|
Product size
|
320mmx260mmx150mm
|
|
Shell material and surface technology
|
Cold-rolled steel, painted orange
|
|
Deterioration indication
|
LED green: OK; Off: Fail,SPD fail buzzer alarm
|
|
Remote signaling contact type
|
Normally closed and normally open switching contacts
|
|
Remote signaling contact switching ability
|
125 Vac / 1 A, 125 Vdc A / 0.2
|
|
Wiring specification for remote alarm system
|
2.5mm2
|
|
Installation position
|
Indoor
|
|
Temperature range
|
-40℃…+80℃
|
|
Humidity range
|
Relative humidity ≤ 95% (max 40 ℃)
|
Notices
●Choose the appropriate protection mode (3+1, 4+0, 1+1, 2+0) according to the power system type.
●Select matching circuit breakers or SCB releases to ensure coordination with the power system.
●Use wiring with cross-sectional area 6mm²-25mm² and tighten screws to 5N·m torque.
●Ensure reliable grounding with ground resistance ≤4Ω to guarantee protection effect.
●Regularly check the lightning counter and status indicator—reset the counter or replace modules as needed.
●Install the box in a dry, well-ventilated indoor environment; avoid exposure to moisture or direct sunlight.
FAQ
Q1: What protection modes are available for LPX Series?
A1: It supports four protection modes: 2+1, 4+0, 3+1, and 1+1, compatible with both three-phase and single-phase power systems.
Q2: Can I choose the discharge current level?
A2: Yes, there are four models with different discharge currents: 40kA, 50kA, 80kA, and 100kA (nominal), meeting different protection requirements.
Q3: Does the product include a circuit breaker?
A3: The circuit breaker, SCB release, and terminals are optional, allowing you to customize the configuration according to actual needs.
Q4: What is the lightning strike counting range?
A4: The counting current range is 0.5kA-200kA (8/20μs) with a counting digit of 0-999.
Q5: Is remote monitoring supported?
A5: Yes, it is equipped with normally closed and normally open remote signaling contacts, enabling connection to monitoring systems for remote status monitoring.
