Home Office T1 T2 SPD Single Phase Surge Protector 220V 15kA 30kA
LPM H12.5M-280/1+NPE is a T1+T2 level power surge protection device.It adopts a mixed-technology design (MOV for L-N, GDT for N-E) to provide comprehensive protection against direct and indirect lightning strikes.

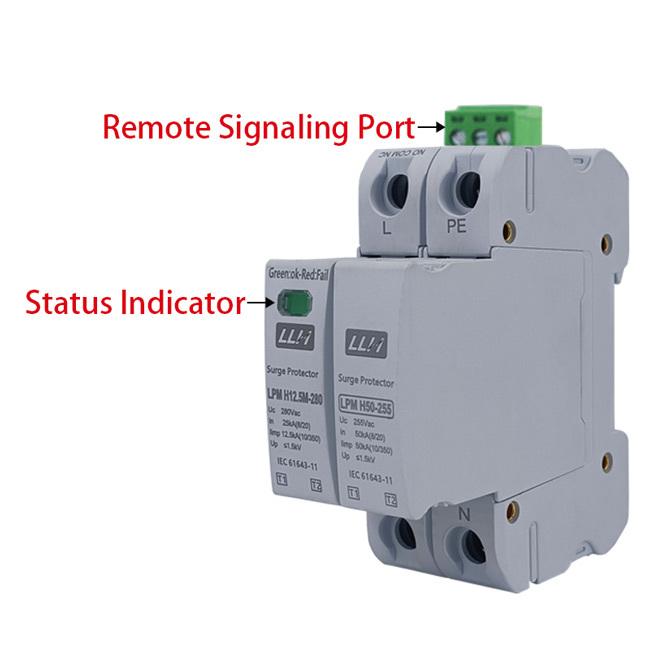

Featuring module pluggable and anti-vibration design, the product is easy to maintain and replace, making it suitable for industrial and commercial environments. The built-in ultra-low temperature release mechanism ensures safe operation in extreme temperatures. Equipped with visual windows (green: normal; red: failed) and remote signaling contacts, it allows for real-time status monitoring and remote alerts.
Product Features
 |
 |
 |
|
Full-Circuit Surge Protection |
Dual Status Monitoring with remote signaling contacts, enabling both local and remote fault alerts. |
LKD MOV standard chip The reaction time is less than 25 nano seconds. |
Wide-Range Application Scenarios
Product Specification
|
Standards
|
IEC 61643-11
|
|
|
SPD type
|
T1,T2
|
|
|
Models
|
LPM H12.5M-280/1+NPE
|
|
|
Electrical parameters
|
||
|
Port
|
L-N
|
N-E
|
|
Device
|
MOV
|
GDT
|
|
Nominal operating voltage Un
|
220Vac(50Hz)
|
220Vac(50Hz)
|
|
Maximum continuous operating voltage Uc
|
280Vac(50Hz)
|
255Vac(50Hz)
|
|
Nominal discharge current (8/20μs)In
|
30kA
|
30kA
|
|
Lightning discharge current (10/350μs) Iimp
|
12.5kA
|
15kA
|
|
voltage protection level Up
|
≤1.5kV
|
≤1.5kV
|
|
Response time tA
|
≤25ns
|
≤100ns
|
|
Protection Circuit
|
L-N,N-E
|
|
Mechanical parameters
| Installation method | DIN Rail 35mm |
| Screw torque | 5N*m |
|
Strip length
|
12mm |
| Wiring cross-sectional area | 2.5mm²-32mm² |
| Product size | 90mmx36mmx80mm |
| Shell material and flame retardant grade | Mineral nylon PA6, V0 |
| Deterioration indication | Window green: OK; Window red: Fail |
| Remote signaling contact type | Normally closed and normally open switching contacts |
| Remote signaling contact switching ability | 125Vac/1A,125Vdc/0.2A |
|
Maximum connection capacity of remote
signaling
|
2.5mm² |
|
Installation position
|
Indoor |
|
Degrees of protection provided by enclosure
|
IP20 |
|
Temperature range
|
-40℃…+80℃ |
|
Humidity range
|
Relative humidity ≤ 95% (max 40 ℃) |
Notices
FAQ
Q1: What is the mixed-technology design of the product?
A1: It uses MOV (Metal Oxide Varistor) for L-N protection and GDT (Gas Discharge Tube) for N-E protection, combining the advantages of both technologies for optimal performance.
Q2: Does the product support hot-swapping?
A2: Yes, the pluggable module design allows for hot-swapping, enabling module replacement without disconnecting the power supply.
Q3: What is the anti-vibration design used for?
A3: It ensures the product operates stably in environments with slight vibration, such as small workshops and commercial buildings.
Q4: Can it be used for household air conditioners and refrigerators?
A4: Yes, it is suitable for protecting household appliances with single-phase power supply, providing comprehensive lightning and surge protection.
Q5: What is the size of the product?
A5: The product size is 90mmx36mmx80mm, compact and suitable for installation in small distribution boxes.
