Network Lan Cable Surge Protector RJ45 10G SPD 5V 60V Signal Lightning Protection Device
LS-10G/LS-10G/POE is a high-speed RJ45 network signal surge protector designed for 10G/10G BASE-T 802.3 computer network information systems, suitable for installation in LPZ 2-3 and subsequent lightning protection zones. It provides comprehensive protection against surges in network signal lines, ensuring stable data transmission even in harsh electromagnetic environments.
Featuring a modular design with a metal casing, the product offers strong anti-interference ability, minimizing signal loss and electromagnetic interference. The unique anti-interference circuit design is tailored for 10G communication networks, supporting ultra-high transfer rates up to 10G bit/s without compromising performance. The parallel protection circuit design ensures single-stage, high-energy, and low residual voltage protection.
| Product Features |
● Modular design, metal casing, strong anti-interference ability. |
● DIN 35mm rail, easy for expansion. |
● Unique anti-interference circuit design, born for 10G communication network. |
● Parallel protection circuit design, single-stage/ high-energy/ low residual voltage. |

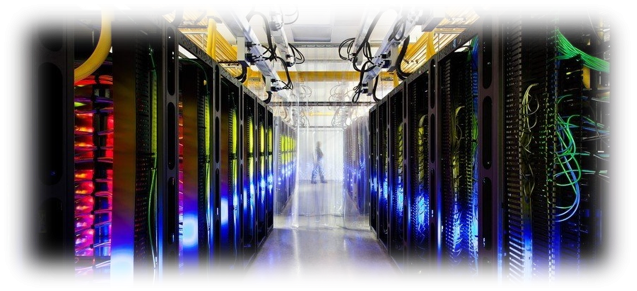

Application scenarios
Product Specification
Standards | IEC 61643.21 | |
Models | LS-10G | LS-10G/POE |
Parameter | ||
Nominal operating voltage Un | 5Vdc | 48Vdc |
Maximum continuous operating voltage Uc | 8Vdc | 60Vdc |
X-X Shock rating C2/C1 | 4kV/2kA | 1kV/0.5kA |
X-C Shock rating C2 | 4kV/2kA | 4kV/2kA |
X-X,X-C Shock rating B2 | 4kV(10/700μs) | 4kV(10/700μs) |
X-X Up@C2/C1 | ≤25V | ≤25V |
X-C Up@C2 | ≤500V | ≤500V |
X-X Up@B2 | ≤20V | ≤15V |
X-C Up@B2 | ≤300V | ≤300V |
Response time tA | 1ns | 1ns |
Maximum transfer rate Vs | 10G bit/s | 10G bit/s |
Load current | 1A | 1A |
Protective Line | 1-2,3-6,4-5,7-8 | |
Failure indication | Signal interrupted | |
Installation mode | DIN Rail 35mm |
Product dimensions | 53mmx57mmx25mm |
Shell material | Aluminum |
Installation location | Indoor |
Shell protection rating | IP20 |
Temperature | -40℃ ~ +80℃ |
Humidity | Relative humidity≤95% |
FAQ
Q1: What is the maximum transfer rate supported by this product?
A1: It supports up to 10G bit/s, compatible with 10G BASE-T 802.3 network standards.
Q2: Can LS-10G/POE be used for non-POE devices?
A2: Yes, it is backward compatible with non-POE 10G network devices, providing surge protection without affecting signal transmission.
Q3: What is the difference between X-X and X-C shock ratings?
A3: X-X refers to line-line surge protection, while X-C refers to line-ground surge protection, both covering critical paths for comprehensive shielding.
Q4: Does the product require grounding?
A4: Yes, reliable grounding is required to divert surge energy; ensure the ground wire is properly connected to the protection circuit.
Q5: Is it compatible with Cat-6 cables?
A5: It is optimized for Cat-6A cables, but also compatible with Cat-6 cables (note that transfer rate may be limited by the cable grade).
