Office Building Indoor Ethernet Surge Protection Device 16 Port Rack Mount 100M
LS-100M Series Rack-Mount Network Signal Surge Protectors are designed for 100 BASE-T 802.3 computer network systems, suitable for installation in LPZ 2-3 and subsequent lightning protection zones. They feature a standard 19” 1U rack design, making them ideal for high-density low-speed network environments such as security monitoring rooms and small data centers.
Integrated with multi-channel independent protection circuits, the products minimize mutual interference between ports. The unique anti-interference wiring design meets 100M network communication requirements, while the single-stage high-energy device parallel protection circuit delivers low residual voltage. POE models support 48Vdc POE power supply, catering to POE-enabled devices such as IP cameras and wireless access points.
| Product Features |
|
● Standard 19”, 1U rack-mounted.
|
|
● Integrated multi-channel independent protection circuit, low mutual interference.
|
|
● Unique anti-interference wiring design, meet 100M network communication.
|
|
● Single-stage high-energy device parallel protection circuit design, low residual voltage.
|
|
● Cat5 type line lightning protectors installed in LPZ 2-3 and subsequent surge protection zones and applied to 100/100 BASE-T 802.3 computer network information systems.
|

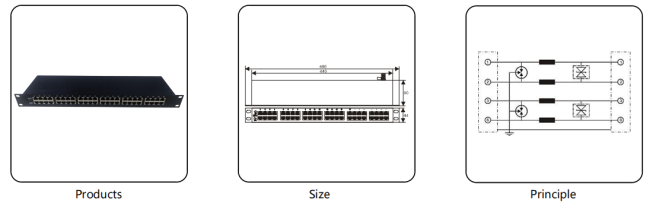

Product Specification
| Standards | GB/T 18802.21-2016 | |||||
| Models | LS-100M-16 | LS-100M-24 | LS-100M/POE-16 | LS-100M/POE-24 | ||
| Parameter | ||||||
| Protection function | Signal | Power | Signal | Power | Signal | |
| Nominal operating voltage Un | 5Vdc | 48Vdc | 5Vdc | 48Vdc | 5Vdc | |
|
Maximum continuous operating voltage Uc
|
6.8Vdc | 60Vdc | 6.8Vdc | 60Vdc | 6Vdc | |
|
X-X Shock rating C2/C1
|
4kV/2kA | 4kV/2kA | 4kV/2kA | 4kV/2kA | 4kV/2kA | |
|
X-C Shock rating C2
|
4kV/2kA | 4kV/2kA | 4kV/2kA | 4kV/2kA | 4kV/2kA | |
|
X-X,X-C Shock rating B2
|
4kV(10/700μs) | -- | 4kV(10/700μs) | -- | 4kV(10/700μs) | |
|
X-X Up@C2/C1
|
≤25V | ≤300V | ≤25V | ≤300V | ≤25V | |
|
X-C Up@C2
|
≤500V | ≤300V | ≤500V | ≤300V | ≤500V | |
|
X-X Up@B2
|
≤20V | -- | ≤20V | -- | ≤15V | |
|
X-C Up@B2
|
≤300V | -- | ≤300V | -- | ≤300V | |
|
Response time tA
|
1ns | 25ns | 1ns | 25ns | 1ns | |
|
Maximum transfer rate Vs
|
100M bit/s | -- | 100M bit/s | -- | 100M bit/s | |
|
Load current
|
1A | 1A | 1A | 1A | 1A | |
|
Number of protected ports
|
16Line | 24Line | 16Line | 24Line | ||
|
Protective Line
|
1-2,3-6 | 45-78 | 1-2,3-6 | 45-78 | 1-2,3-6 | |
|
Failure indication
|
Signal interrupted | |||||
|
Installation mode
|
19” rack
|
|
Product dimensions
|
480mmx120mmx44mm
|
|
Shell material
|
Cold-rolled steel sheet painted black
|
|
Installation location
|
Indoor
|
|
Shell protection rating
|
IP20
|
|
Temperature range
|
-40℃…+80℃
|
|
Humidity range
|
Relative humidity≤95%
|
Notices
●Ensure the rack mounting space meets 1U (44mm) height requirement.
●For POE models, confirm the POE power supply voltage matches 48Vdc.
●Use Cat-5 or higher grade cables to ensure 100Mbit/s transmission speed.
●Properly ground the SPD to guarantee surge diversion; ground resistance ≤4Ω is recommended.
●Regularly inspect the ports for loose connections or physical damage.
●Failure is indicated by signal interruption; troubleshoot or replace the product if multiple ports fail.
FAQ
Q1: What standards does this product comply with?
A1: It complies with GB/T 18802.21-2016 national standard and IEC 61643.21 international standard.
Q2: Can it protect both signal and POE power lines?
A2: Yes, POE models provide separate protection for 100M network signals (lines 1-2､3-6) and POE power lines (lines 45-78).
Q3: What is the difference between 16-port and 24-port models?
A3: The only difference is the number of protected ports (16 vs 24), with all other performance parameters identical.
Q4: Is the product suitable for outdoor use?
A4: No, it is designed for indoor use (IP20) in network cabinets and equipment rooms.
Q5: What is the service life of the product?
A5: Under normal operating conditions, the service life is 5-8 years. Regular inspection of ports and wiring is recommended
