POE Ethernet Lightning Surge Protector 8 Port Wall Mount 1G Office Home Protection
| Product Features |
|
● Integrated multi-channel independent protection circuit, small mutual interference.
|
|
● Unique anti-interference wiring design, meet 1G network communication.
|
|
● Single-stage high-energy device parallel protection circuit design, low residual voltage.
|
|
● Cat-6 type line lightning protectors installed in LPZ 2-3 and subsequent surge protection zones and applied to 1000/1000 BASE-T 802.3 computer network information systems.
|
Product Specification
|
Standards
|
IEC 61643.21
|
|
|
Models
|
LS-1000M-8
|
LS-1000M/POE-8
|
|
Parameter
|
||
|
Nominal operating voltage Un
|
5Vdc
|
48Vdc
|
|
Maximum continuous operating voltage Uc
|
6.8Vdc
|
60Vdc
|
|
X-X Shock rating C2/C1
|
4kV/2kA
|
1kV/0.5kA
|
|
X-C Shock rating C2
|
4kV/2kA
|
4kV/2kA
|
|
X-X,X-C Shock rating B2
|
4kV(10/700μs)
|
4kV(10/700μs)
|
|
X-X Up@C2/C1
|
≤25V
|
≤25V
|
|
X-C Up@C2
|
≤500V
|
≤500V
|
|
X-X Up@B2
|
≤20V
|
≤15V
|
|
X-C Up@B2
|
≤300V
|
≤300V
|
|
Response time tA
|
1ns
|
1ns
|
|
Maximum transfer rate Vs
|
100M bit/s
|
100M bit/s
|
|
Load current
|
1A
|
1A
|
|
Number of protected ports
|
8Line
|
|
|
Protective Line
|
1-2,3-6,4-5,7-8
|
|
|
Failure indication
|
Signal interrupted
|
|
|
Installation mode
|
Flat/wall mounting
|
|
Mounting hole spacing
|
190mmx66mm
|
|

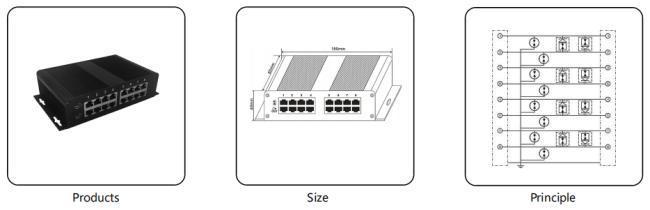

Product dimensions
|
204mmx117mmx48mm
|
|
Shell material
|
Cold-rolled steel sheet painted black
|
|
Installation location
|
Indoor
|
|
Shell protection rating
|
IP20
|
|
Temperature range
|
-40℃…+80℃
|
|
Humidity range
|
Relative humidity≤95%
|
Notices
● Use the provided mounting holes (190mmx66mm) for secure wall installation.
● For POE models, avoid exceeding the maximum continuous operating voltage (60Vdc).
● Use Cat-5e or higher grade cables to ensure 1Gbit/s transmission speed.
● Properly ground the SPD to guarantee surge diversion; ground resistance ≤4Ω is recommended.
● Regularly inspect the ports for loose connections or physical damage.
● Failure is indicated by signal interruption; replace the product if multiple ports fail simultaneously.
FAQ
Q1: How many ports does this product have?
A1: It has 8 protected ports, suitable for small-scale network deployments.
Q2: What is the installation method?
A2: It supports flat or wall mounting with mounting hole spacing of 190mmx66mm.
Q3: Is it compatible with POE devices?
A3: The LS-1000M/POE-8 model supports 48Vdc POE power supply, while LS-1000M-8 is for non-POE network lines.
Q4: What is the housing material and size?
A4: The housing is cold-rolled steel sheet (black painted) with dimensions 204mmx117mmx48mm.
Q5: Can it be used for 100M networks?
A5: Yes, it is backward compatible with 100M BASE-T systems, providing universal surge protection.
