Wall Mount Ethernet Surge Protector 8 Port 100M Home Office Small Business Protection
LS-100M-8/LS-100M/POE-8 is an 8-port 100M network signal surge protector designed for 100 BASE-T 802.3 computer network systems, suitable for installation in LPZ 2-3 and subsequent lightning protection zones. It features a compact flat/wall mounting design, making it ideal for small businesses, retail stores, and home offices.
Integrated with 8-channel independent protection circuits, the product minimizes mutual interference between ports. The unique anti-interference wiring design meets 100M network communication requirements, while the single-stage high-energy device parallel protection circuit delivers low residual voltage. The LS-100M/POE-8 model supports 48Vdc POE power supply, catering to POE-enabled devices such as IP cameras and wireless access points.
| Product Features |
|
● Integrated multi-channel independent protection circuit, small mutual interference.
|
|
●Unique anti-interference wiring design, meet 100M network communication.
|
|
●Single-stage high-energy device parallel protection circuit design, low residual voltage.
|
|
●Cat5 type line lightning protectors installed in LPZ 2-3 and subsequent surge protection zones and applied to 100/100 BASE-T 802.3 computer network information systems.
|
Product Specification
| Standards | IEC 61643.21 | ||
| Models | LS-100M-8 | LS-100M/POE-8 | |
| Parameter | |||
| Protection function | Signal | Power | Signal |
| Nominal operating voltage Un | 5Vdc | 48Vdc | 5Vdc |
| Maximum continuous operating voltage Uc | 6.8Vdc | 60Vdc | 6.8Vdc |
| X-X Shock rating C2/C1 | 4kV/2kA | 4kV/2kA | 4kV/2kA |
| X-C Shock rating C2 | 4kV/2kA | 4kV/2kA | 4kV/2kA |
| X-X,X-C Shock rating B2 | 4kV(10/700μs) | -- | 4kV(10/700μs) |
| X-X Up@C2/C1 | ≤25V | ≤300V | ≤25V |
| X-C Up@C2 | ≤500V | ≤300V | ≤500V |
| X-X Up@B2 | ≤20V | -- | ≤20V |
| X-C Up@B2 | ≤300V | -- | ≤300V |
| Response time tA | 1ns | 25ns | 1ns |
| Maximum transfer rate Vs | 100M bit/s | -- | 100M bit/s |
| Load current | 1A | 1A | 1A |
| Number of protected ports | 8Line | 8Line | |
| Protective Line | 1-2,3-6 | 4,5-7,8 | 1-2,3-6 |
| Failure indication | Signal interrupted | ||
Notices
1.Use the provided mounting holes (190mmx66mm) for secure wall installation.
2.For POE models, confirm the POE power supply voltage matches 48Vdc.
3.Use Cat-5 or higher grade cables to ensure 100Mbit/s transmission speed.
4.Properly ground the SPD to guarantee surge diversion; ground resistance ≤4Ω is recommended.
5.Regularly inspect the ports for loose connections or physical damage.
6.Failure is indicated by signal interruption; troubleshoot or replace the product if multiple ports fail.
FAQ
Q1: How many ports does this product have?
A1: It has 8 protected ports, suitable for small-scale network deployments.
Q2: Can it protect both signal and POE power lines?
A2: Yes, POE models provide separate protection for 100M network signals (lines 1-2､3-6) and POE power lines (lines 4､5-7､8).
Q3: What is the installation method?
A3: It supports flat or wall mounting with mounting hole spacing of 190mmx66mm.

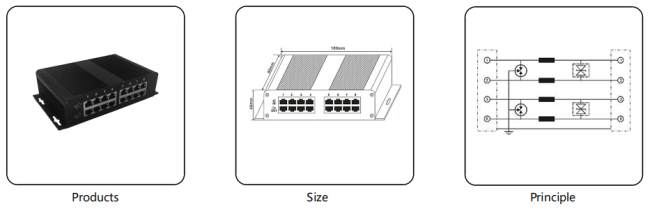

Q4: What is the housing material and size?
A4: The housing is cold-rolled steel sheet (black painted) with dimensions 204mmx117mmx48mm.
Q5: Is it suitable for outdoor use?
A5: No, it is designed for indoor use (IP20) in small offices and equipment rooms.
