Outdoor Led Lighting Spd 220V 5kA 10kA AC DC Surge Protection Device IP67 T2 T3
| Product Features |
|
● One port, full mode protection
|
|
● Small size and easy installation
|
|
● Protection level up to IP67
|
|
● Suitable for installation in LPZ 2-3 and subsequent lightning protection zones, parallel installation in the front end of the final level equipment of the AC/DC power supply system, widely used as lightning protectors for LED street lights, sensors, and other equipment
|
|
Standards
|
IEC 61643-11
|
|
|
SPD type
|
T2,T3
|
|
|
Models
|
LPF 5-320
|
LPF-10-320
|
|
Electrical parameters
|
||
|
Nominal operating voltage Un
|
220Vac(50Hz)
|
|
|
Maximum continuous operating voltage Uc
|
320Vac(50Hz)
|
|
|
Nominal discharge current (8/20μs)In
|
5kA
|
10kA
|
|
Maximum discharge current (8/20μs) Imax
|
10kA
|
20kA
|
|
Voltage protection level In@Up
|
≤1.25kV
|
≤1.5kV
|
|
Response time tA
|
≤25ns
|
≤25ns
|
|

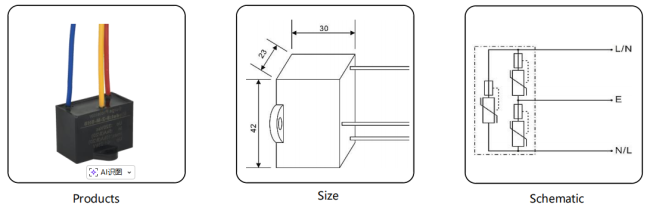

Protection Circuit
|
L-N,L-E,N-E
|
L-N,L-E,N-E
|
|
Failure and alarm
|
||
|
Deterioration indication
|
LED green: OK; Off: Fail (optional function)
|
|
|
Fixed method
|
φ4mmFixing lug
|
|
Wire length
|
200mm
|
|
Wire cross-sectional area
|
1.5mm2
|
|
Product size
|
42mmx30mmx23mm
|
|
Shell material and flame retardant grade
|
Nylon,VO
|
|
Installation position
|
Indoor and outdoor
|
|
Degrees of protection provided by enclosure
|
IP67
|
|
Temperature range
|
-40℃…+80℃
|
|
Humidity range
|
Relative humidity ≤ 95% (max 40 ℃)
|
Notices
1.This product is engineered for parallel installation at the front end of LED street lights and sensing devices, to provide surge protection for outdoor equipment.
2.Utilize the included φ4mm mounting lugs to ensure a secure installation, enhancing resistance to wind-induced forces and mechanical vibration in outdoor environments.
3.Properly seal all wiring connections to preserve the product’s IP67 ingress protection rating, preventing dust and moisture ingress.
4.Avoid mounting the device in locations prone to heavy mechanical shock or exposure to corrosive chemicals, to maintain long-term performance.
5.Replace the SPD promptly if the optional LED status indicator turns off (indicating device failure) or after experiencing a severe surge event.
6.This product is designed exclusively for AC 220Vac power systems; always verify the system voltage before installation to ensure compatibility.
FAQ
Q1:What is the MOQ for this product? Can I order samples for testing?
A1: The standard MOQ is 1 piece, and we fully support sample orders for testing and validation. Sample fees can be deducted from your subsequent bulk order payment.
Q2: Can I customize the wire length or connector type?
A2: Yes, we accept OEM/ODM customization for wire length, connector type, and branding (e.g., logo printing on the housing), with flexible MOQ for custom requirements.
Q3: What is the difference between this single-port SPD and dual-port SPD models?
A3: This single-port SPD is optimized for parallel installation at the equipment front end, focusing on direct protection of end devices like LED street lights. Dual-port models are typically used for in-line energy coordination between SPD levels, so this single-port version is more compact and cost-effective for end-equipment protection.
Q4: How does the IP67 rating affect installation and maintenance?
A4: The IP67 rating means it can be installed directly outdoors without additional enclosures, reducing installation costs. It also minimizes maintenance needs, as it resists dust and water ingress even in harsh weather.
